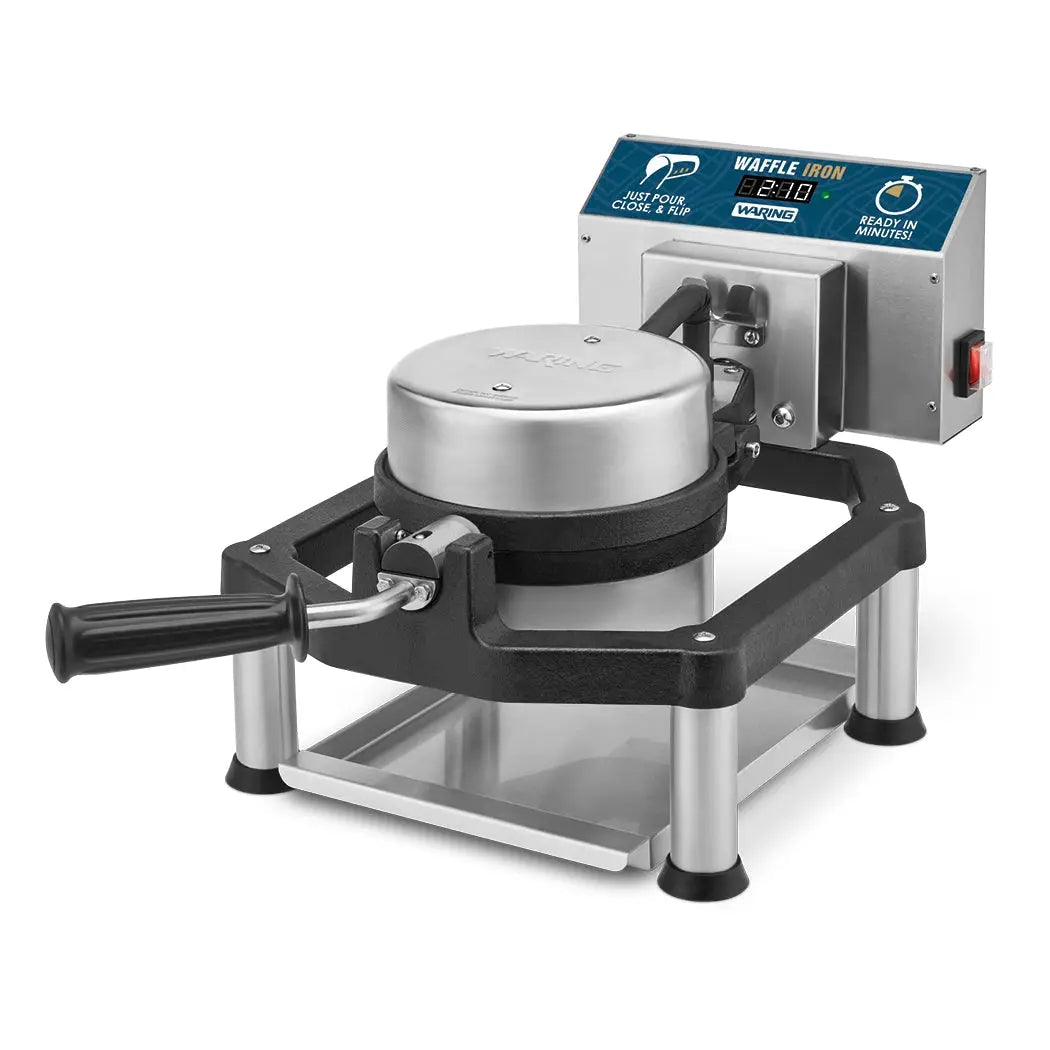

Waring WWHD500 Heavy-Duty Cast Iron Belgian Waffle Maker, 7-1/4 in Round, Timer, 1600W, 120V

The Waring WWHD500 is a heavy-duty rotating Belgian waffle maker built around cast iron grids, the traditional choice for a crisp exterior and deep, even browning. It bakes a 7-1/4" round Belgian waffle about 1-1/8" thick and runs on 120V at 1600 watts (13.3 amps) with a NEMA 5-15P plug. A built-in timer helps staff hit the same doneness every time.

Cast Iron Grids for Heat Retention

Cast iron holds a large amount of heat, so the grids stay hot when cold batter hits them. That thermal mass is what produces a crisp, deeply colored crust and a tender interior, and it keeps bake quality steady when waffles are going out one after another. The 1600-watt heating system gives the heavy grids the power they need to recover between bakes.

The rotating design lets the operator turn the iron after filling so batter flows evenly to both grids, which helps fill the deep pockets of a thick Belgian waffle. A timer marks the end of each bake, reducing overcooked waffles and making the station easier to run with less experienced staff. A batter cup and drip tray are included to help portion consistently and keep the counter clean.

Why Operators Choose It

• Crisp, traditional crust: cast iron grids retain heat for deep, even browning
• Thick Belgian waffles: 7-1/4" round waffles about 1-1/8" thick
• Strong heating: 1600 W at 120V for quick recovery between bakes
• Even fill: rotating design spreads batter to both grids
• Repeatable timing: built-in timer for consistent doneness
• Portion control: batter cup included for consistent fills

Controls

A timer lets the operator set and track bake time for each waffle, helping keep color and texture consistent between cooks.

Ideal For

• Restaurants and brunch spots featuring signature Belgian waffles
• Hotel breakfast stations
• Chicken and waffles concepts
• Dessert cafes

Specifications

Electrical & Installation

• Power: 120V, 60 Hz, 1600 W, 13.3 A
• Plug: NEMA 5-15P
• Circuit: at over 13 A, avoid sharing the outlet with other heating appliances; a dedicated circuit is recommended
• Placement: allow space around the unit for the handle and rotation

What's Included

• Batter cup
• Drip tray

Specifications per Waring data; subject to change by the manufacturer.
