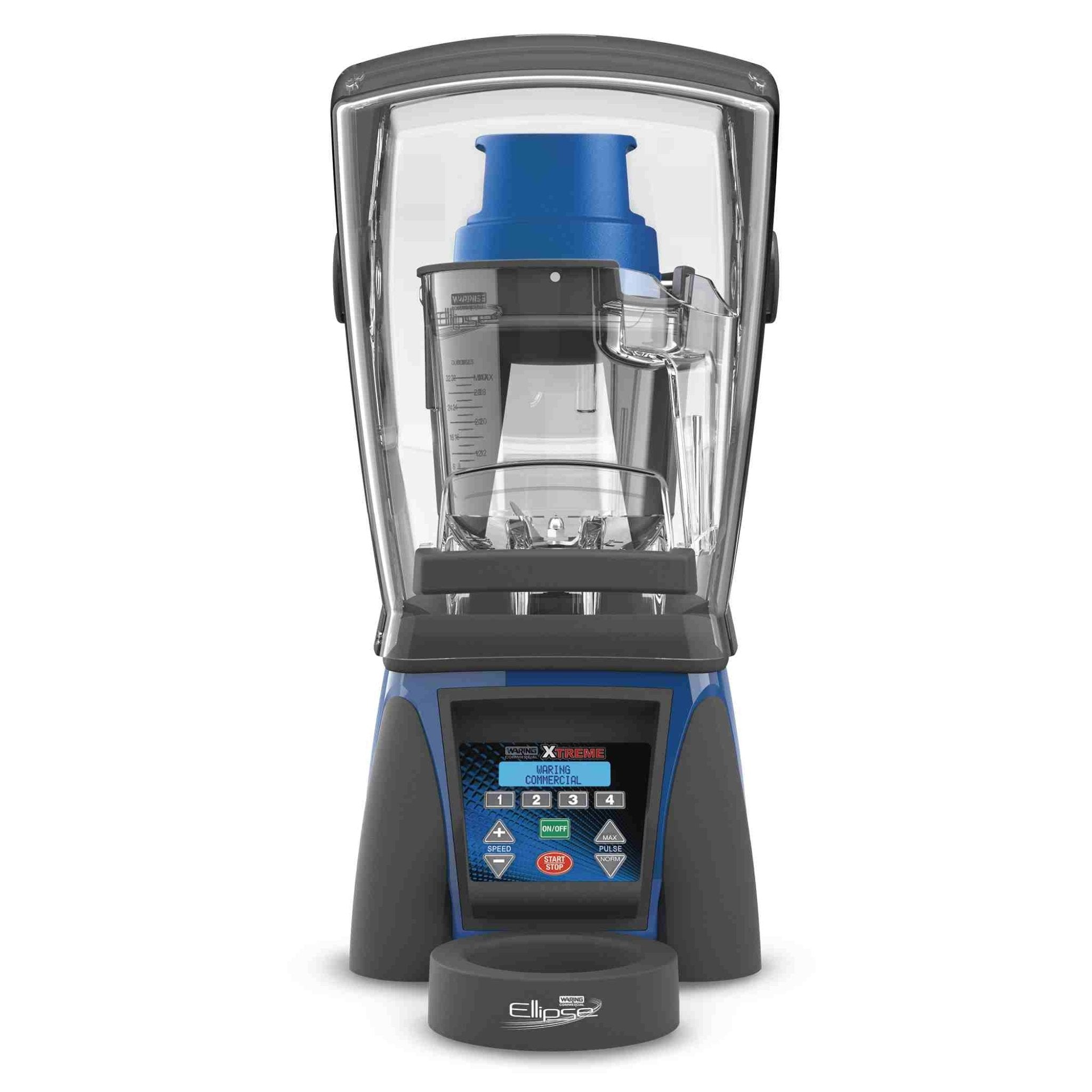

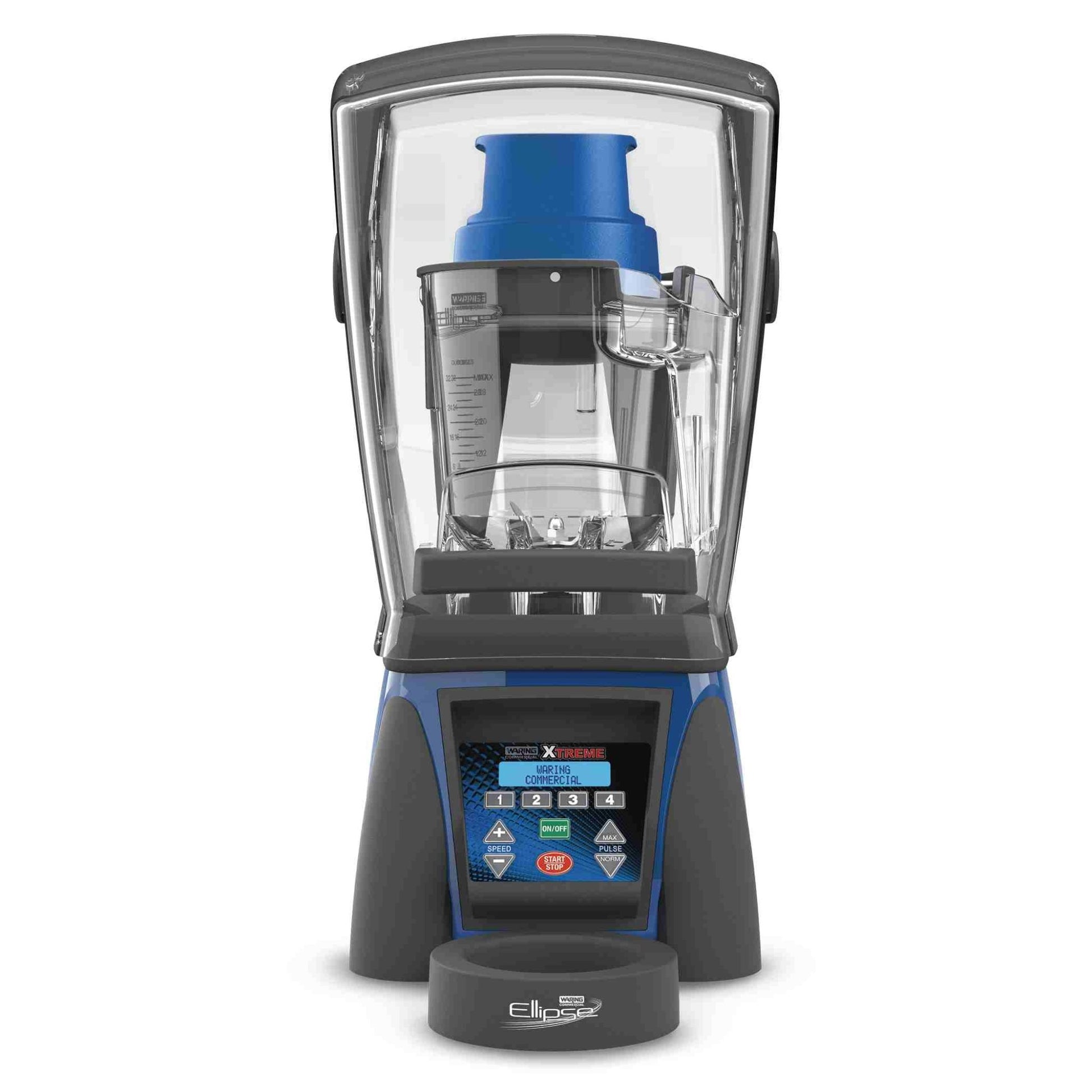

Waring MXE2000 Ellipse Blending System, 32 oz Copolyester Container, 3.5 HP, Programmable LCD, 120V

The Waring MXE2000 Ellipse Blending System is a fully automated, top-down blending solution for high-volume smoothie, frozen beverage and bowl programs. It runs a 32 oz cylindrical copolyester jar on Waring's most powerful blender base, the 3.5 HP, 30,000 RPM MX1500, with a programmable LCD keypad, and plugs into a standard 120V outlet.

Independent Dual-Motor, Top-Down Blending

Thick frozen blends tend to "bridge": the blade cuts a pocket of air under the ingredients and spins freely while product sits on top, which is why staff reach for a tamper. The Ellipse solves that with an independent dual-motor system. While the base drives the blade from below, a lithium-powered Ellipse Drive mounted on the lid turns a dasher that sweeps the inside walls of the cylindrical jar, scraping contents back down into the blade. The result is fewer air pockets, shorter blend times and no need for a tamper.

The Drive charges in about two hours and one charge lasts a full service day; between blends it rests in a hollow docking station that tucks under the base in any orientation. It runs in Manual mode (10, 15 or 20 seconds via push buttons) or Auto Start mode, which starts automatically and runs for 30 seconds when the sound enclosure is closed. Magnetic stop-blade technology stops the blade within 2 seconds of opening the enclosure, and the redesigned sound enclosure cuts noise and vibration at the counter.

Why Operators Choose It

• No tamping: the motorized dasher pushes ingredients back into the blade, eliminating air pockets in thick blends
• Top-tier power: 3.5 HP, 30,000 RPM MX1500 base, the strongest in the Waring line
• Programmable consistency: four programmable beverage stations with adjustable speed controls
• Hands-free Auto Start: closing the sound enclosure starts a 30-second Drive cycle
• Safety built in: magnetic stop-blade stops the blade within 2 seconds of opening the enclosure
• Quieter front of house: redesigned sound enclosure reduces noise and vibration
• All-day cordless Drive: about 2 hours to charge, one charge lasts a full service day

Controls

An electronic membrane keypad with a blue backlit LCD screen gives adjustable speed control and four programmable beverage stations, so each menu item can be saved and repeated with a single press. The Ellipse Drive adds its own Manual timing of 10, 15 or 20 seconds, or Auto Start for 30 seconds when used with the SE1500 sound enclosure, which is required for Auto Start mode.

Ideal For

• Smoothie, acai and frozen bowl concepts
• Coffee shops and cafes with frozen beverage menus
• Chain restaurants and quick-service operations that need speed and consistency
• High-volume bars blending frozen cocktails

Specifications

Electrical & Installation

• Power: 120V, 60 Hz, 1500 W, 12.5 A
• Plug: NEMA 5-15P on a 6 ft cord
• Circuit: at 12.5 A, avoid sharing the outlet with other high-draw equipment; a dedicated circuit is good practice at a busy blending station
• Clearance: Waring's dimension drawing shows 4 in to the wall behind the unit, and the enclosure needs about 25 in of height when open
• Charging: plan an outlet near the station for the single charging station

What's Included

• MXEBU Ellipse base unit (with jar pad and adaptor ring)
• CAC187 32 oz jar with dasher, lid and blade assembly
• MXECHG1 Ellipse single charging station
• MXEDS1 Ellipse docking station
• CAC119 retainer ring wrench
• CAC182 replaceable coupling and CAC183 drive coupling
• Sound enclosure

Compatible Accessories

• MXECHG3: Ellipse triple charging station for larger-volume stores
• MXEDR: spare Ellipse Drive
• MXEFJA / MXEFJAC: full jar assembly (jar, lid, dasher and Drive), with or without single charger
• CAC188: 32 oz cylindrical copolyester container (also in purple, CAC188-10)
• CAC192 / CAC193 / CAC194: replacement dasher, lid and blade assembly
• CAC190: complete retrofit kit for MX series blender bases
• SE1500: sound enclosure kit with jar pad and adaptor ring

Specifications per Waring data; subject to change by the manufacturer.
