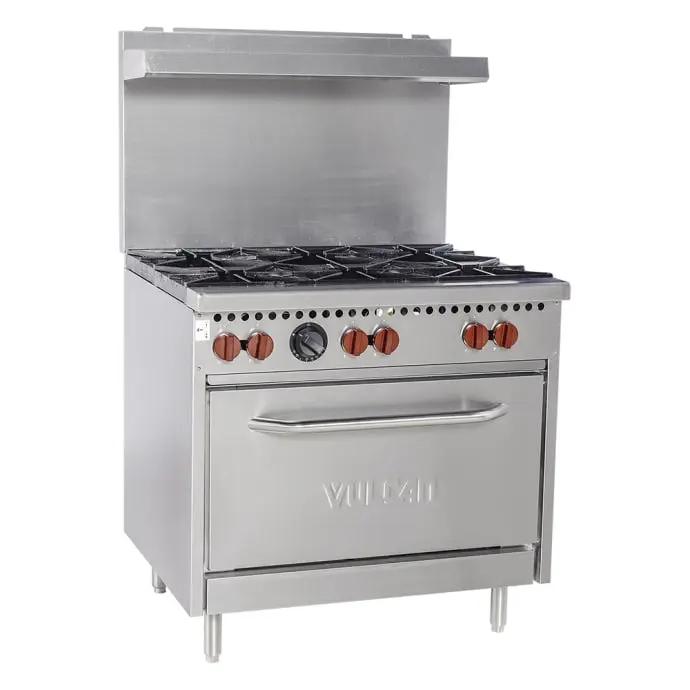

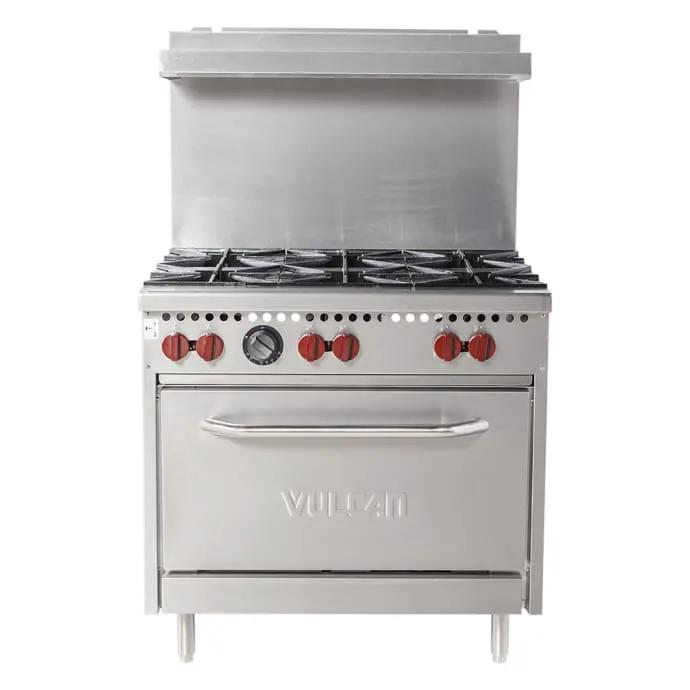

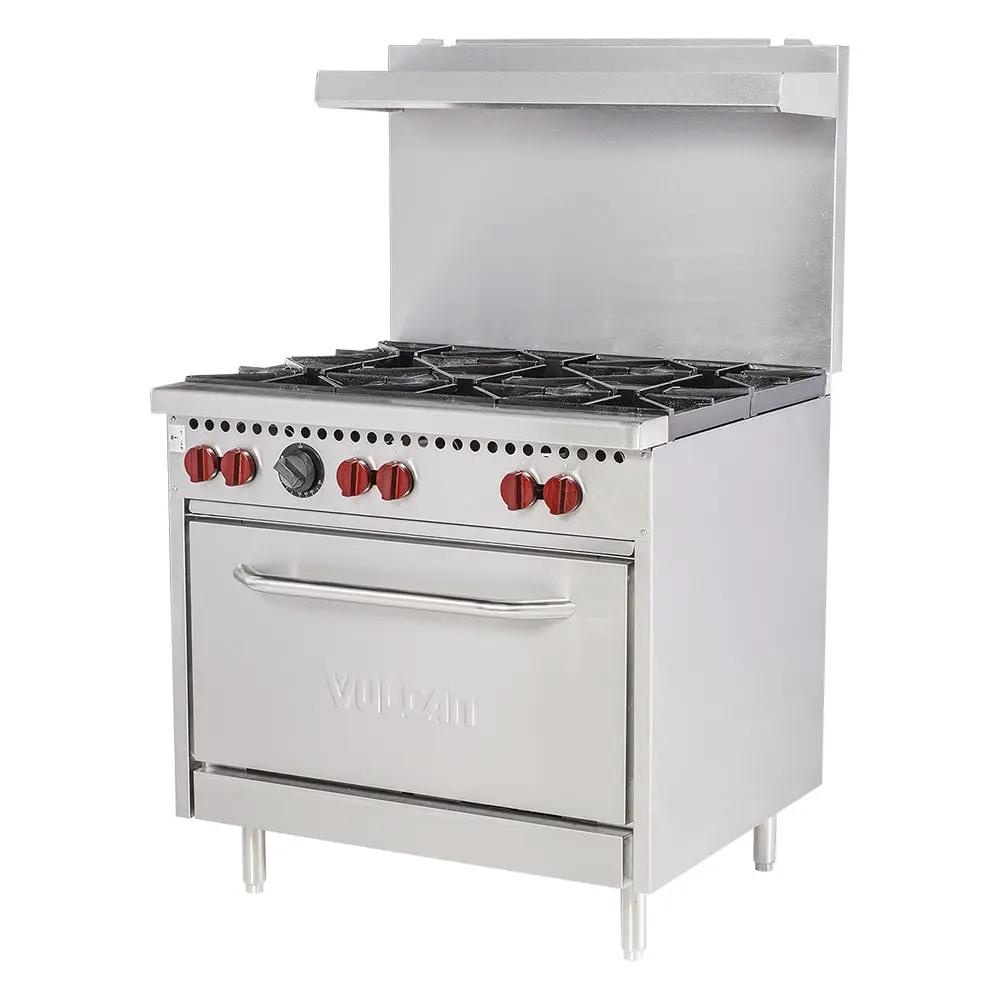

Vulcan SX36-6B 36" Gas Range - 6 Burners, Standard Oven, Natural Gas

The Vulcan SX36-6B is a 36" restaurant range from the SX series, built for kitchens that need six open burners and a full oven in a compact footprint. Each burner is rated at 28,000 BTU with a lift-off head for easy cleaning, and a shrouded flash-tube pilot system uses one pilot for every two burners to save gas. Below, a 30,000 BTU standard oven handles roasting and baking from 250 to 500°F.

Key Features

• (6) 28,000 BTU open burners with lift-off burner heads
• Shrouded flash-tube pilots (1 pilot per 2 burners)
• 12" x 12" cast iron top grates with aeration bowls
• Standard oven, 250–500°F thermostat, 1 rack with 4 positions
• Compression-spring oven door hinge
• Stainless steel front, sides, backriser and lift-off high shelf
• 6" stainless steel adjustable legs

Specifications

Download the Vulcan SX36-6B spec sheet (PDF)

Specifications from Vulcan; subject to change by the manufacturer. Confirm gas type, voltage and clearances before installation.
