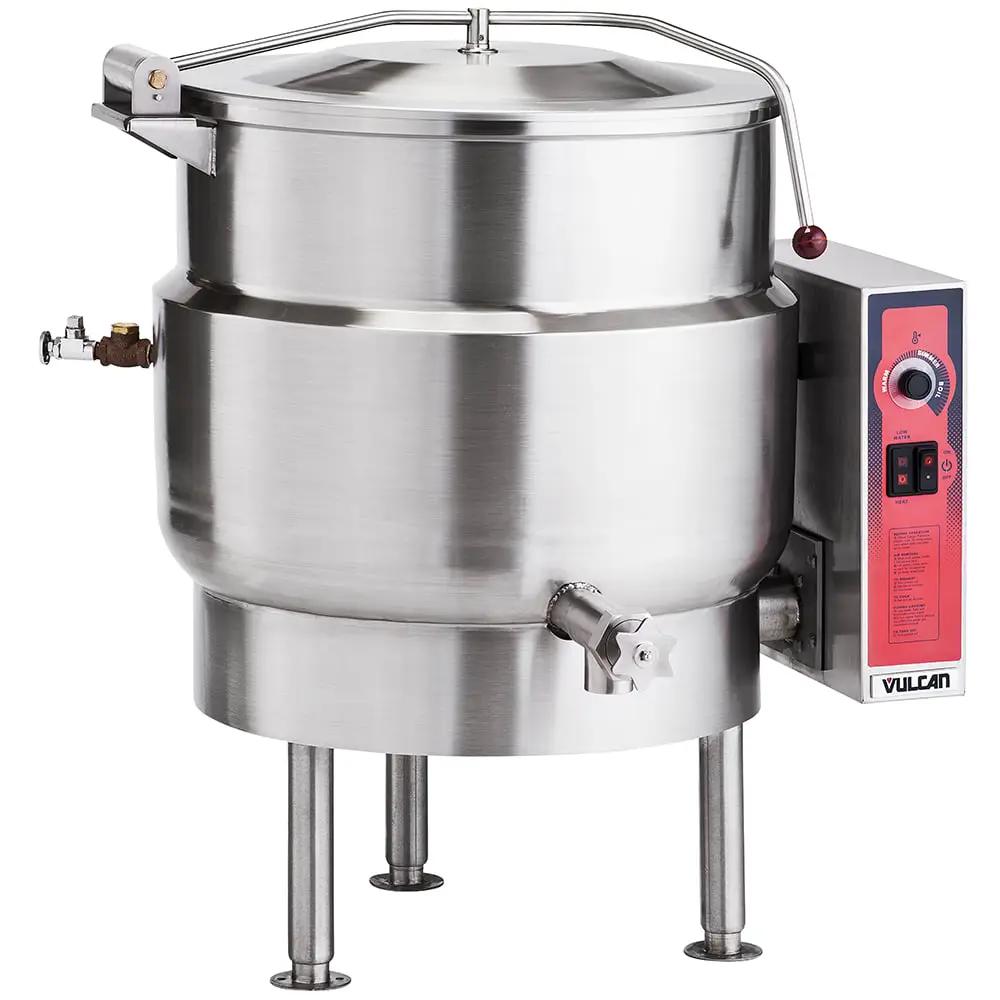

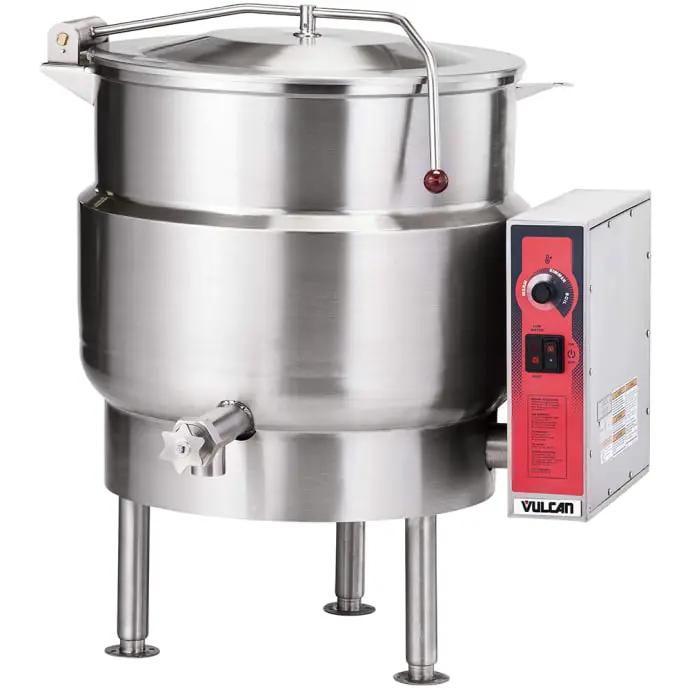

Vulcan K40EL 40 Gallon Steam Kettle - Stationary, 2/3 Jacket, 240V 3PH
Regular price
$23,212.00
Sale price
$23,212.00
Regular price
Shipping calculated at checkout.
The Vulcan K40EL is a 40 gallon steam kettle from Vulcan’s KEL line. It is wired for 240V / 3-phase. Highlights include 40-gallon true working capacity, 2/3 jacketed and 316 series stainless steel liner with ellipsoidal bottom. It is well suited to soups, sauces, stocks, chili and pasta in volume.
Key Features
- 40-gallon true working capacity
- 2/3 jacketed
- 316 series stainless steel liner with ellipsoidal bottom
- Spring assist cover with condensate ring

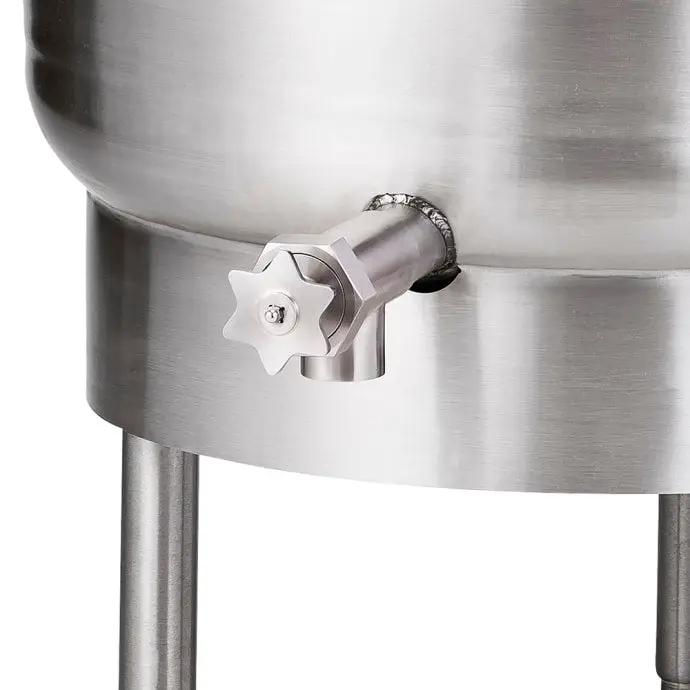

- 2" compression draw-off valve with perforated strainer

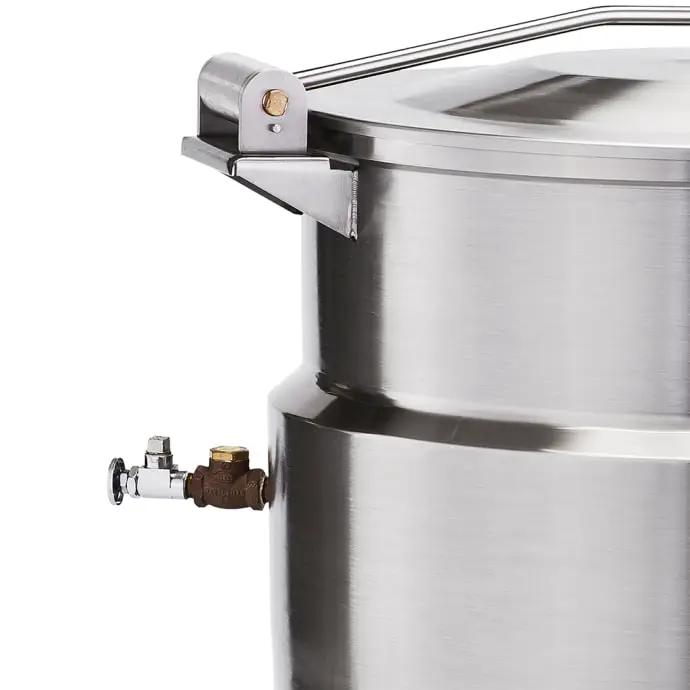

- Faucet bracket 130° right of draw-off
- Stainless steel construction
- Tri-leg base
- ANSI/NSF 4
- ASME
Specifications
| Model | K40EL |
| Series | KEL Series |
| Electrical | 240V / 3-phase |
| Base | Tri Leg |
| Capacity (gallons) | 40 |
| Jacket | 2/3 Jacket |
| Tilt | Stationary |
| Overall dimensions | 37-7/10" W x 35-1/4" D x 37-1/10" H |
| Warranty | 1-year Limited Parts & Labor |
| Certifications | cULus, UL EPH |
Download the Vulcan K40EL spec sheet (PDF)
Specifications from Vulcan; subject to change by the manufacturer. Confirm gas type, voltage and clearances before installation.
