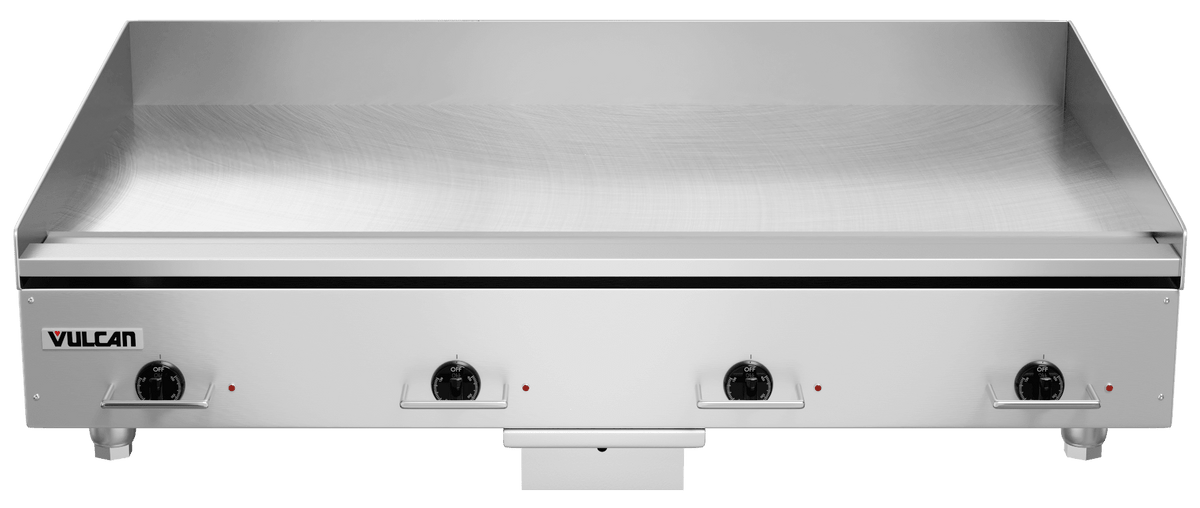

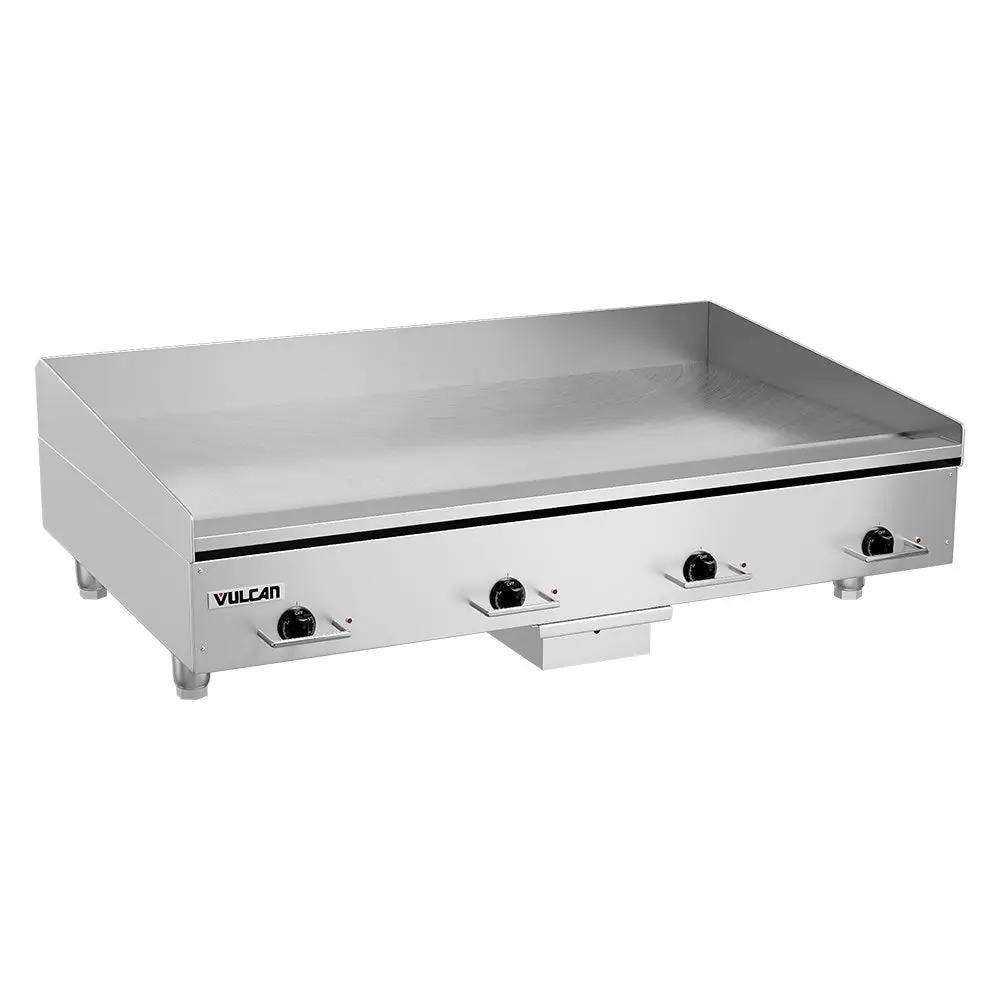

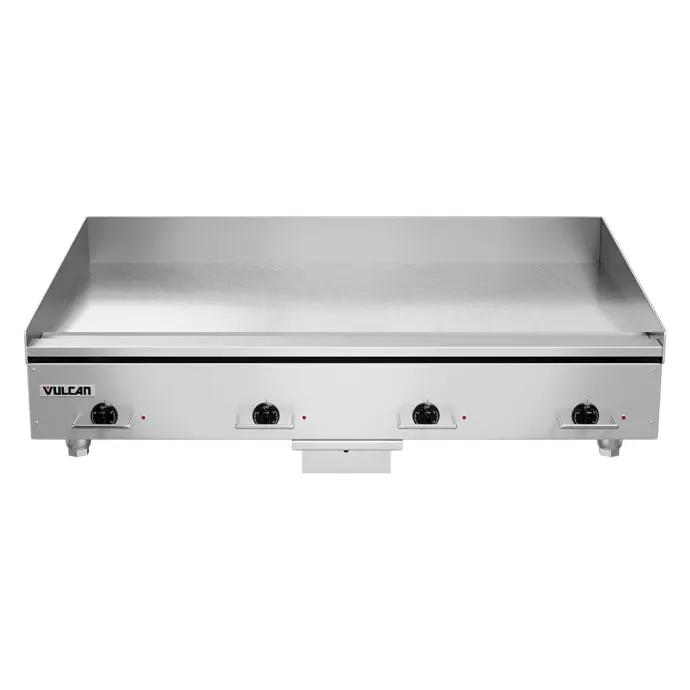

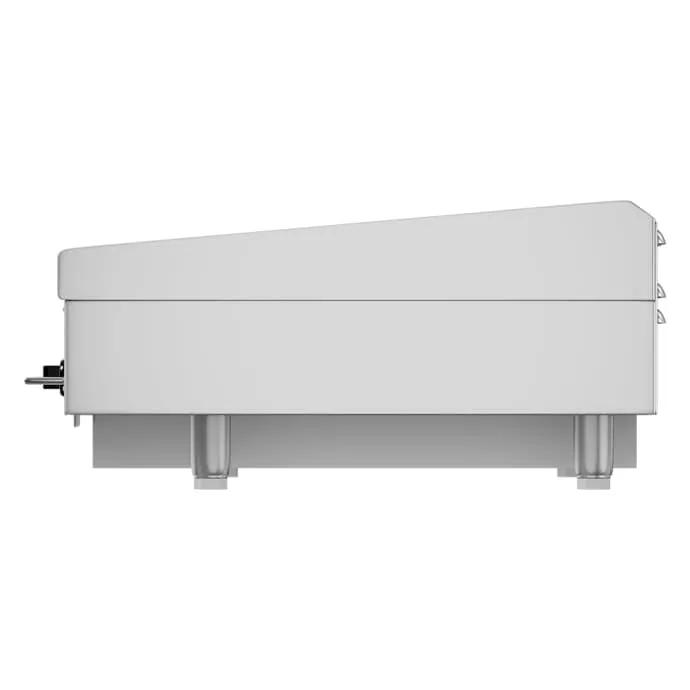

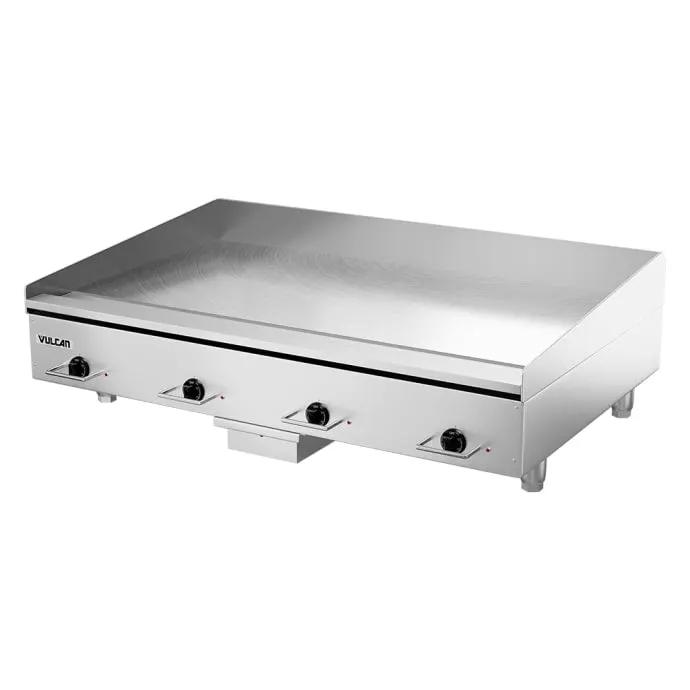

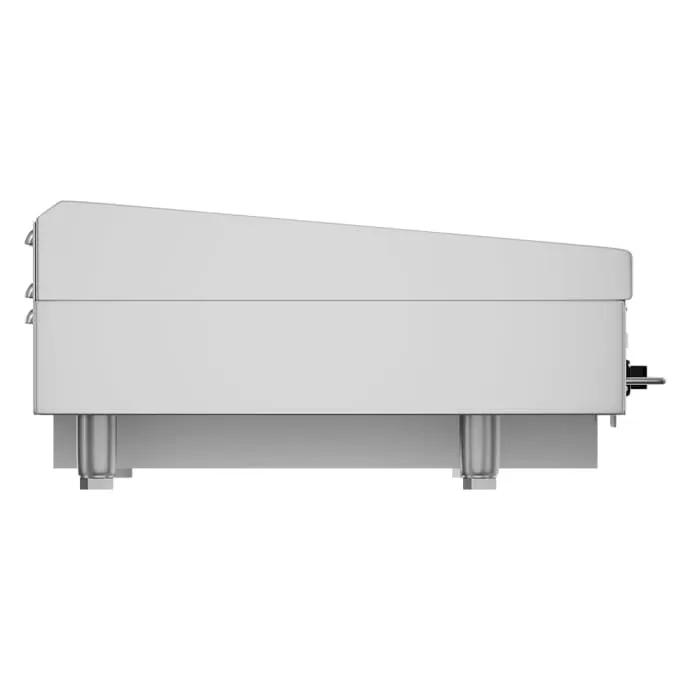

Vulcan HEG48E HEG-E 48" Electric Griddle with Thermostatic Controls - 1/2" Steel Plate, 208V 3PH
Regular price
$8,762.00
Sale price
$8,762.00
Regular price
Shipping calculated at checkout.
The Vulcan HEG48E is a 48" electric griddle with thermostatic controls from Vulcan’s HEG-E line. It is rated at 21.6 kW and is wired for 208V / 3-phase. Highlights include 48" W x 24" D cooking surface, 1/2" thick polished steel griddle plate, bottom mounted snap action thermostat every 12" and low profile. It suits breakfast service, burgers, sandwiches and other high-volume flat-top cooking.
Key Features
- 48" W x 24" D cooking surface, 1/2" thick polished steel griddle plate
- Bottom mounted snap action thermostat every 12"
- Low profile
- Stainless steel front, sides, front top ledge with "Cool Bullnose", front grease trough
- 4" back & tapered side splashes
- 4" adjustable legs
Specifications
| Model | HEG48E |
| Series | HEG-E Series |
| Electrical | 208V / 3-phase |
| Power | 21.6 kW |
| Cooking area width (in) | 48 |
| Cooking area depth (in) | 24 |
| Plate thickness (in) | 1/2 |
| Plate material | Steel |
| Controls | Thermostatic |
| Overall dimensions | 48" W x 31-1/2" D x 15-3/10" H |
| Warranty | 1-year Limited Parts & Labor |
| Certifications | cCSAus, NSF |
Download the Vulcan HEG48E spec sheet (PDF)
Specifications from Vulcan; subject to change by the manufacturer. Confirm gas type, voltage and clearances before installation.
