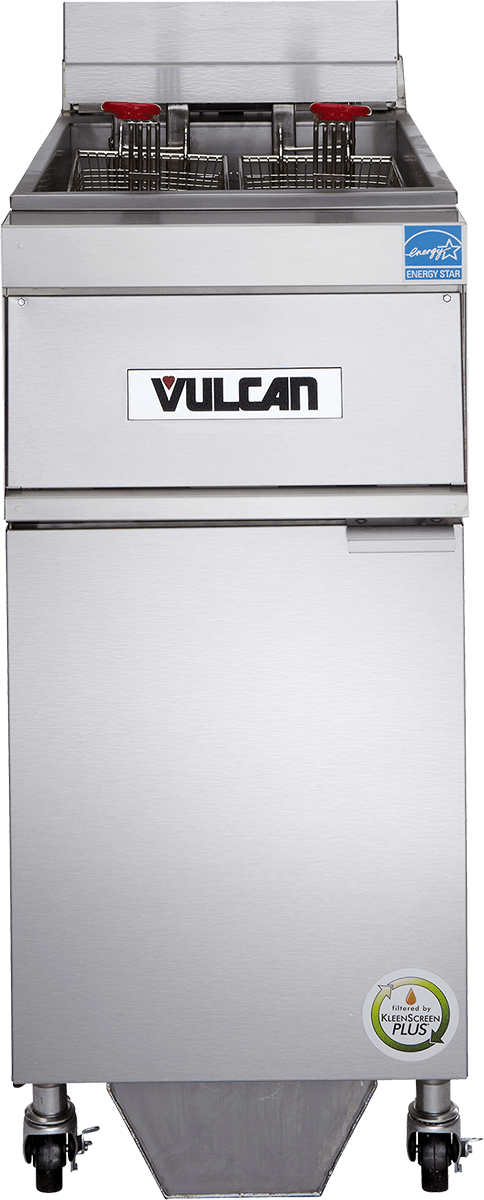

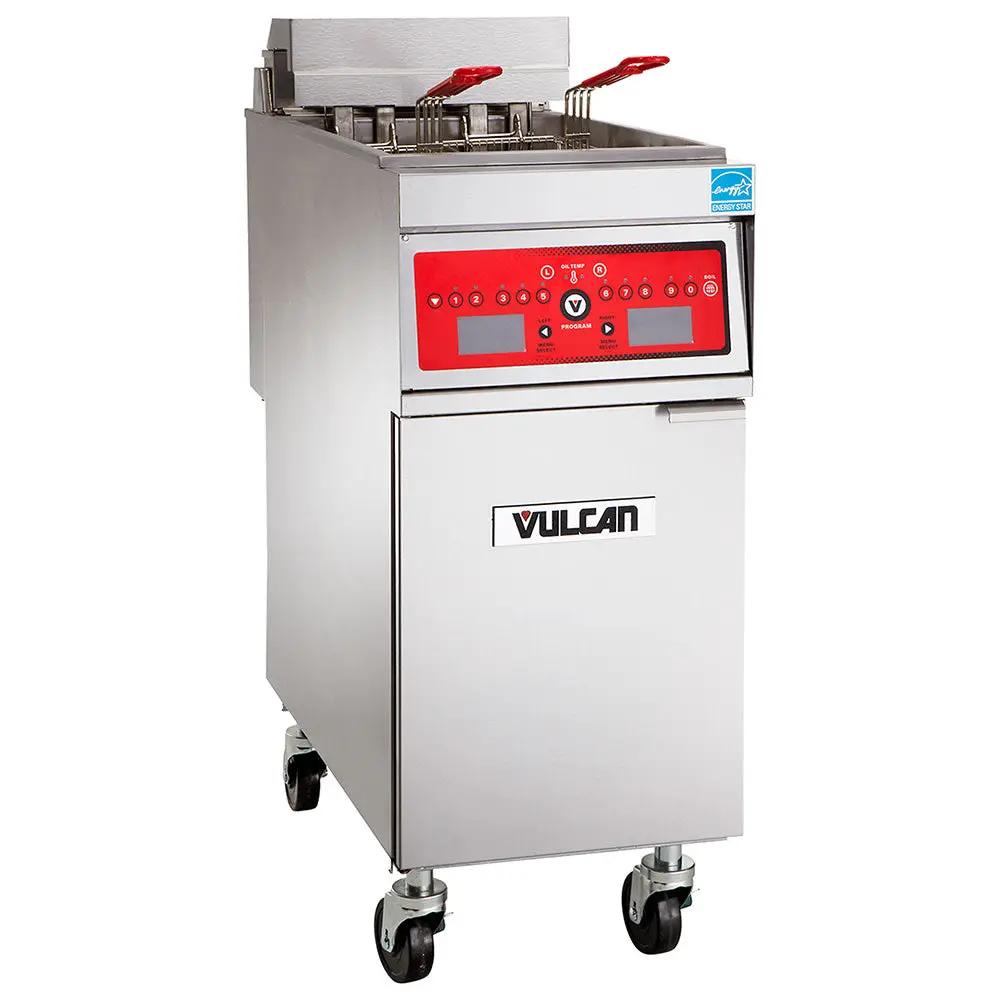

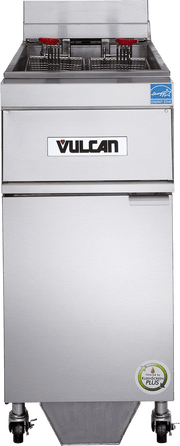

The Vulcan 1ER50CF pairs a 50 lb electric fryer with Vulcan’s built-in KleenScreen PLUS® filtration system, so oil can be filtered at the station without a separate filter machine. Low-watt-density ribbon elements deliver fast recovery, and the programmable computer control stores product settings with countdown timers to keep results consistent from shift to shift.
Key Features
- Programmable computer control with 10 product keys and countdown timers
- Multiple fat-melt modes and Boil-Out ByPass system
- Built-in KleenScreen PLUS® oil filtration
- Low-watt-density ribbon heating elements for fast recovery
- Temperature range 200–390°F
- 16-gauge stainless steel fry tank; seamless 18-gauge stainless filter pan
- 1-1/4" full-port ball-type drain valve with interlock switch
- Twin baskets with plastic-coated handles; (4) 6" adjustable legs
Specifications
| Model | 1ER50CF |
| Series | ER50 |
| Power | 17 kW |
| Electrical | 208V / 60 Hz / 3-phase |
| Oil capacity | 50 lb |
| Overall dimensions | 15-1/2" W x 34-3/8" D x 39-7/16" H |
| Certifications | cULus, NSF, ENERGY STAR® |
Download the Vulcan 1ER50CF spec sheet (PDF)
Specifications from Vulcan; subject to change by the manufacturer. Confirm gas type, voltage and clearances before installation.
