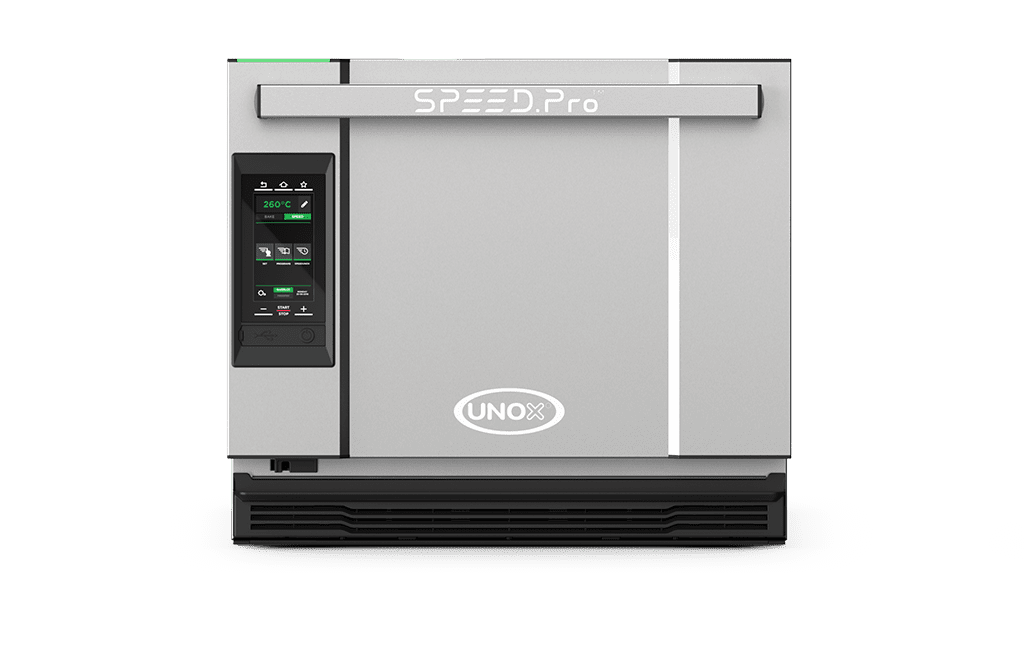

Unox SPEED.Pro™ 3-Tray Electric Speed Oven (XASR-03HS) - 208/240V, 3-Phase or 1-Phase, Ventless
SPEED.Pro™ is a convection oven and a speed oven in one compact unit. In Bake mode it turns out three half-sheet trays of pastry, even from frozen; in Speed mode it toasts and heats sandwiches, flatbreads and single portions in seconds rather than minutes. This electric model holds 3 half-size 18" x 13" sheet pans on 2-15/16" spacing and runs from 86°F to 500°F.
It is built for coffee shops, bakery-cafés, convenience stores and bars that bake in the morning and serve hot food to order all day.
What you will notice in day-to-day use
- Bakes like a convection oven. Bake mode handles up to three 18" x 13" trays of pastry or bread, fresh or frozen, with even color from tray to tray.
- Speed mode for made-to-order. Speed mode combines hot air, microwaves (SPEED.Plus) and the contact-heated SPEED.Plate to toast and heat sandwiches and single portions in record time.
- Hundreds of programs, ready to go. 384 Bake and 384 Speed programs, 24 quick buttons, and CHEFUNOX / SPEEDUNOX libraries that set everything for you.
- No hood for most menus. Intertek-approved for ventless operation (EPA 202 / UL 710B) for everything except fatty raw proteins such as raw chicken, bacon, sausage or steak. For those, check your local HVAC code.
- Connected. Built-in Wi-Fi with HACCP and program download/upload, plus the Data Driven Cooking app.
Choosing your setup
Voltage: 3-phase is the usual choice in restaurants and hotels and draws fewer amps per leg; 1-phase is there for sites without 3-phase service, such as many cafés, shops and bakeries. Output and amp draw for each version are in the table below. Ask your electrician which service you have before ordering.
| Model | Door | Electrical | Power | Amps / breaker | Plug |
|---|---|---|---|---|---|
| XASR-03HS-EDDS | Drop-Down Door | 240V 3-phase | 6.5 kW | 17 A / 30 A breaker | NEMA 15-30P |
| XASR-03HS-EDDS | Drop-Down Door | 208V 3-phase | 5.6 kW | 17.1 A / 30 A breaker | NEMA 15-30P |
| XASR-03HS-SDDS | Drop-Down Door | 240V 1-phase | 6.5 kW | 28 A / 30 A breaker | NEMA 6-30P |
| XASR-03HS-SDDS | Drop-Down Door | 208V 1-phase | 5.6 kW | 28 A / 30 A breaker | NEMA 6-30P |
Specifications
| Brand | Unox |
| Line | SPEED.Pro™ |
| Models | XASR-03HS-EDDS, XASR-03HS-SDDS |
| Type | Electric speed oven |
| Capacity | 3 x 18" x 13" half-sheet pans |
| Tray spacing | 2-15/16" |
| Temperature range | 86°F – 500°F |
| Controls | 6" touchscreen control panel |
| Chamber | AISI 304 stainless steel |
| Dimensions (W x D x H) | 23-5/8" x 31-3/8" x 21-5/16" |
| Net weight | 197 lb |
| Ventless | Yes, see notes below |
Before it arrives
- Power: dedicated circuit sized from the table above. The plug ships fitted, so match the receptacle before delivery day.
- Ventilation: approved for ventless operation except when cooking fatty raw proteins; confirm with your local inspector.
Popular add-ons (sold separately)
SPRAY&Rinse, Baking Essentials, Speed Essentials, Ethernet.
Warranty
12 months parts and labor from Unox when the unit is registered on unox.com within 30 days of invoice or installation. Ask us about Unox extended warranty options.
Specifications from Unox spec sheets and technical data; Unox may change them without notice. Please confirm utilities with your installer before ordering.
