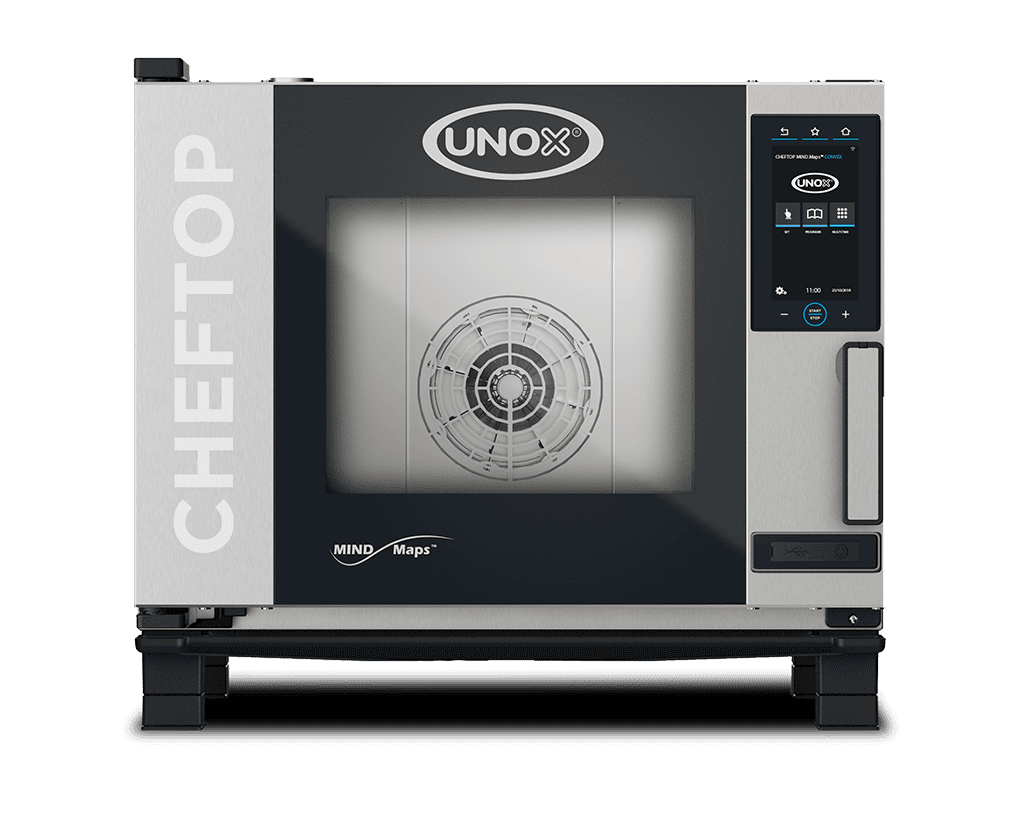

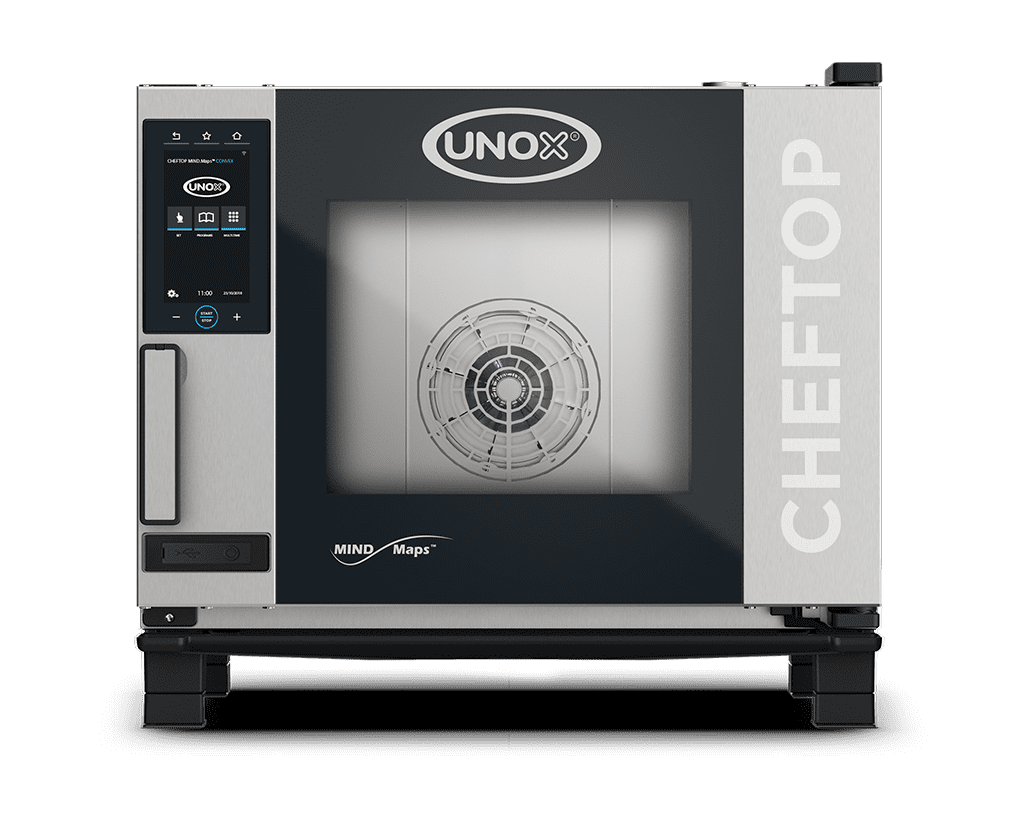

Unox CHEFTOP MIND.Maps™ CONVEX 5-Pan Electric Countertop Convection Oven (XAVC-0511) - 208/240V, 3-Phase or 1-Phase
The CHEFTOP MIND.Maps™ CONVEX is Unox’s straightforward convection oven: even airflow, simple controls and solid build for baking, roasting and browning, without paying for a steam system you will not use. This electric model holds 5 full-size (12" x 20") hotel pans on 2-5/8" spacing and runs from 86°F to 500°F.
It is a strong fit for bakeries, cafés, pizzerias and any kitchen that bakes and roasts all day but does not need steam.
What you will notice in day-to-day use
- Even heat on every shelf. The AIR.Plus multi-fan system reverses direction automatically and has 2 speeds, spreading heat evenly from top to bottom.
- Crisp, golden results. DRY.Maxi™ pulls moisture out of the chamber fast for crisp crusts and well-browned roasts.
- Ten timers at once. MULTI.TIME manages up to 10 cooking processes at the same time.
- Save your recipes. 384 programs with up to 9 steps each, so every batch of croissants or roast potatoes is done the same way.
- Consistent with any load. ADAPTIVE.Cooking™ and SMART.Preheating adjust automatically to how full the oven is.
- Connected. Built-in Wi-Fi with HACCP and program download/upload.
Choosing your setup
Voltage: 3-phase is the usual choice in restaurants and hotels and draws fewer amps per leg; 1-phase is there for sites without 3-phase service, such as many cafés, shops and bakeries. Output and amp draw for each version are in the table below. Ask your electrician which service you have before ordering.
Door hinge: a Left Hinge door swings open to the right; a Right Hinge door swings open to the left. Pick the one that opens away from your prep side or the wall so the door never blocks the cook.
| Model | Door | Electrical | Power | Amps / breaker | Plug |
|---|---|---|---|---|---|
| XAVC-0511-EQRM | Left Hinge | 240V 3-phase | 7.8 kW | 19.5 A / 25 A breaker | NEMA 15-30P |
| XAVC-0511-EQRM | Left Hinge | 208V 3-phase | 5.9 kW | 17 A / 25 A breaker | NEMA 15-30P |
| XAVC-0511-EQLM | Right Hinge | 240V 3-phase | 7.8 kW | 19.5 A / 25 A breaker | NEMA 15-30P |
| XAVC-0511-EQLM | Right Hinge | 208V 3-phase | 5.9 kW | 17 A / 25 A breaker | NEMA 15-30P |
| XAVC-0511-MQRM | Left Hinge | 240V 1-phase | 7.8 kW | 32.5 A / 40 A breaker | NEMA 6-50P |
| XAVC-0511-MQRM | Left Hinge | 208V 1-phase | 5.9 kW | 28.5 A / 35 A breaker | NEMA 6-50P |
| XAVC-0511-MQLM | Right Hinge | 240V 1-phase | 7.8 kW | 32.5 A / 40 A breaker | NEMA 6-50P |
| XAVC-0511-MQLM | Right Hinge | 208V 1-phase | 5.9 kW | 28.5 A / 35 A breaker | NEMA 6-50P |
Specifications
| Brand | Unox |
| Line | CHEFTOP MIND.Maps™ CONVEX |
| Models | XAVC-0511-EQRM, XAVC-0511-EQLM, XAVC-0511-MQRM, XAVC-0511-MQLM |
| Type | Electric convection oven |
| Capacity | 5 x GN 1/1 (12" x 20") pans |
| Tray spacing | 2-5/8" |
| Temperature range | 86°F – 500°F |
| Controls | 9.5" touchscreen control panel |
| Programs | 384 (up to 9 steps each) |
| Chamber | AISI 304 stainless steel |
| Dimensions (W x D x H) | 29-1/2" x 30-13/16" x 26-9/16" |
| Net weight | 154 lb |
Before it arrives
- Power: dedicated circuit sized from the table above. The plug ships fitted, so match the receptacle before delivery day.
- Ventilation: follow your local code.
- Height: designed to sit on a stand, a neutral cabinet, or a LIEVOX proofer. The stand is sold separately.
Popular add-ons (sold separately)
Neutral cabinet, Stand, QUICK.Load and trolley system, Cooking Essentials.
Warranty
12 months parts and labor from Unox when the oven is registered on unox.com within 30 days of invoice or installation. For CHEFTOP MIND.Maps™ ovens, the optional LONG.Life4 extended warranty adds coverage up to 24 months labor and 48 months parts (or 10,000 operating hours), as long as the oven stays connected to the internet for remote support.
Specifications from Unox spec sheets and technical data; Unox may change them without notice. Please confirm utilities with your installer before ordering.
