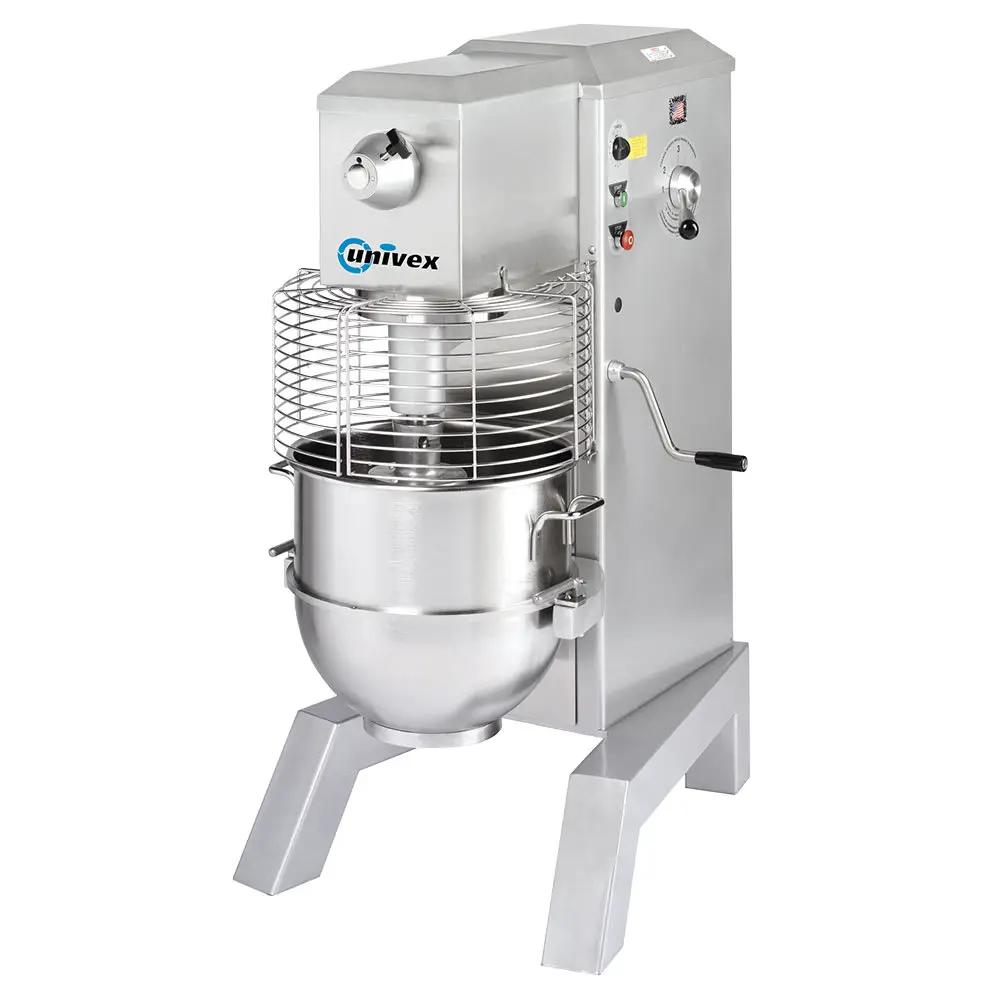

Univex SRM60+ 60 Qt Planetary Mixer, Floor Model, 3 HP, 208-240V

The Univex SRM60+ is a 60-quart floor-model planetary mixer driven by a 3 hp capacitor-start motor, built for bakeries and production kitchens mixing to a schedule. It stands 66" high on a 41" × 51" footprint, weighs 750 lbs, and runs on a single-phase 208–240 V supply as standard, with three-phase and 460 V configurations available.

How the drive works

The SRM60+ uses an oil-bath transmission with hardened alloy gearing and torque-sensing variable-speed pulleys. Univex marks four speeds on the beater shaft — 119, 166, 275 and 498 RPM — and four on the #12 power take-off — 93, 132, 214 and 390 RPM. The drive is not limited to those four: it will hold any speed in between, and the speed can be changed while the mixer is running.

That matters in a working bakery because dough does not stay at one consistency. An operator can start a stiff dough slowly, bring it up as the flour hydrates, and never stop the machine to move a belt or a lever. The oil bath and hardened gears are there because a 60-quart batch of bread dough loads a transmission hard, every day, for years.

Why Operators Choose It

• Full 60-quart batches. A 60 qts. (56.7 liter) stainless steel bowl, supplied with the machine.
• Speed without stopping. Four marked speeds plus anything in between, adjustable mid-mix.
• One machine, several jobs. The #12 power take-off accepts the ALMFC12 meat and food grinder, the VS9 vegetable slicer and the VS9H shredder, so the mixer does prep work between batches.
• Guarded three ways. A two-piece stainless guard, interlock switches that stop the machine if the guard opens or the bowl drops, and low-voltage protection that prevents a restart after a power cut.
• Cleans down properly. The guard is stainless and dishwasher safe; the finish is an NSF-approved hybrid epoxy / polyester powder coat.
• Lifts under power. A power bowl lift is standard; a self-locking hand crank is the alternative configuration.
• Built in the USA. Univex manufactures the SRM line in Salem, New Hampshire.

Controls

Momentary-contact start and stop buttons through a contactor, and a 15-minute timer. Bowl height is handled by the standard power bowl lift, or by a hand crank that self-locks at the top and bottom of its travel.

Ideal For

Retail and wholesale bakeries, pizzerias mixing their own dough, commissaries, hotel and institutional kitchens, and any operation whose batch size has outgrown a 40-quart mixer.

Specifications

Electrical Supply

Standard configuration is 208–240 V single phase at 16.0–16.8 A on a NEMA 6-20P plug, with a 6 ft cord attached. Univex also builds the SRM60+ for 208–240 V three phase (8.0–8.5 A, NEMA L15-20) and 460 V three phase (4 A, NEMA L16-20); a voltage other than the standard carries a factory upcharge. Have an electrician confirm what is at the installation point first, because the mixer is wired for one configuration at the factory and cannot be changed on site.

What’s Included

• 60 qt. stainless steel bowl
• Batter beater, wire whip and dough hook
• Bowl scraper
• Ingredient chute
• Power bowl lift
• 15 minute timer

Factory Options and Accessories (Additional Cost)

• Attachments: ALMFC12 meat and food grinder; VS9 vegetable slicer with adjustable knife; VS9H vegetable shredder with plate holder and 3/16" plate, with further plate sizes, grater plates and a julienne plate available
• Agitators: 60 qt. pastry knife, four-wing beater, sweet dough beater, heavy-duty stainless steel wire whip
• Accessories: bowl truck, cover, splash ring
• Factory installed: prison package

Warranty

Two years, on-site parts and labor. Univex states the term in each model’s operator manual — the mixer "carries a two-Year, on-site, parts and labor warranty against any defects in materials or workmanship" — and in its Planetary Mixer Selection Guide, which applies it to every planetary mixer the company builds. Warranty work is scheduled 8:00 am to 5:00 pm local time, Monday to Friday, and claims go to the Univex Warranty Service Department before any repair. Overloading the mixer beyond the published capacity voids it.

Specifications per Univex data; subject to change by the manufacturer.
