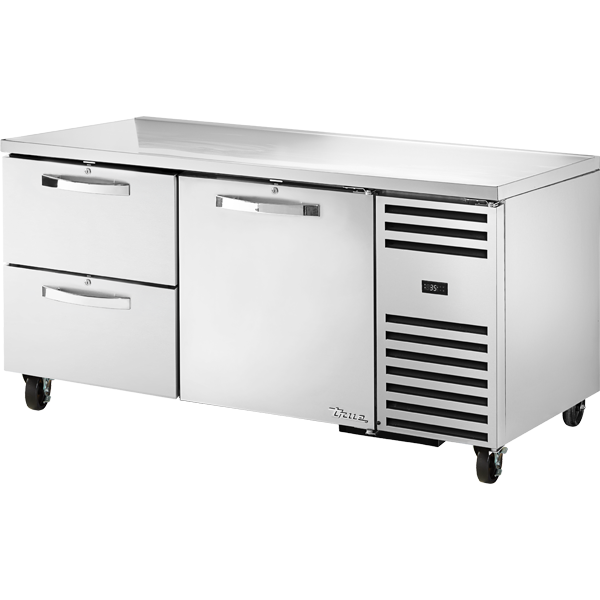

True TWT-67D-2-HC~SPEC3 Worktop Drawered Refrigerator with SPEC3 Package, 67-1/4" Wide

The True TWT-67D-2-HC~SPEC3 is a worktop drawered refrigerator with SPEC3 package from the TWT Series. It stores product behind one solid door and in two drawers, holds 33°F to 38°F and runs on R290 hydrocarbon refrigerant. It plugs into a 115/60/1 outlet (1.7 A).

Refrigeration System

A factory-balanced, self-contained capillary tube refrigeration system holds 33°F to 38°F. True sizes the system generously for the cabinet, which helps it recover after door and drawer openings. R290 is a natural hydrocarbon refrigerant with zero ozone depletion potential and a very low global warming potential.

Electronically commutated (ECM) evaporator and condenser fan motors use less power, run cooler and deliver a more consistent airflow, which improves reliability and temperature uniformity. The evaporator coil is epoxy coated to resist corrosion. The condensing unit slides out from the front of the cabinet for cleaning and service. The compressor is rated at 1/10 HP.

Why Operators Choose It

• SPEC3 package: Built to True's SPEC3 specification with a stainless steel interior liner, a stainless steel back, heavy-duty 20 gauge door construction, all-metal work-spec handles and electronic temperature control with a digital display.
• Natural refrigerant: R290 hydrocarbon refrigerant with zero ozone depletion potential and very low global warming potential.
• ECM fan motors: Electronically commutated evaporator and condenser fan motors run cooler and more efficiently and move a steadier volume of air.
• One-piece top and backsplash: The worktop and backsplash are formed from a single piece, leaving no seam to trap food or bacteria.
• Epoxy-coated evaporator: Coating protects the coil against corrosion.
• Foamed-in-place insulation: High-density polyurethane insulation with zero ODP and zero GWP.
• Tool-free gaskets: One-piece magnetic gaskets pull out without tools for cleaning.
• NSF/ANSI 7: Compliant for open food product.

Cabinet, Door & Drawer Construction

Exterior: stainless steel front, top, sides, and back. Interior: stainless steel liner. Stainless steel floor with coved corners. The cabinet is foamed in place with high-density polyurethane insulation. Door: stainless steel exterior and liner. Drawers have stainless steel exterior facings and liners with stainless steel frames. Drawers ride on heavy-duty stainless steel slides and rollers; each drawer accommodates two full size 12"L x 20"W x 8"D food pans (pans sold separately).

Shelving

Two adjustable PVC-coated wire shelves measuring 23-5/8"W x 28"D. Shelves adjust in 1/2" increments.

Ideal For

Prep stations and cook lines that need cold storage and a stainless work surface in the same footprint.

Available Configurations

Door and drawer sections can be arranged in any position; tell us the layout you need when you order.

Specifications

Installation & Utility Requirements

Requires a dedicated 115/60/1, 15 amp outlet; the unit ships pre-wired with a cord and NEMA 5-15P plug. Listed depth does not include 1" for rear bumpers and 1/4" for front bumper. Listed height does not include 6-1/4" for castors or 6" for optional legs. Follow True's installation manual for clearances, leveling and start-up.

Factory Options (Additional Cost)

• 6" (153 mm) standard legs
• 6" (153 mm) seismic/flanged legs
• 2-1/2" (64 mm) diameter castors
• 3" (85 mm) diameter castors
• Single overshelf
• Double overshelf
• Cutting boards provided by others. Requires "L" brackets. Field installed brackets provided by True (contact factory)
• 30" (762 mm) deep, 1/2" (13 mm) thick, composite cutting board. Requires "L" brackets
• Half door bun tray racks (door section only). Each holds up to eleven 18"L x 26"D (458 mm x 661 mm) sheet pans (sold separately)
• This model can be built with interior mounted pilasters/tray slide kits
• ADA compliant models with 34" (864 mm) work surface height
• Heavy-duty 16-gauge top

Warranty

7-year parts & labor; 7-year compressor coverage from True Manufacturing.

Download the True TWT-67D-2-HC spec sheet (PDF)

Specifications per True Manufacturing data; subject to change by the manufacturer.
