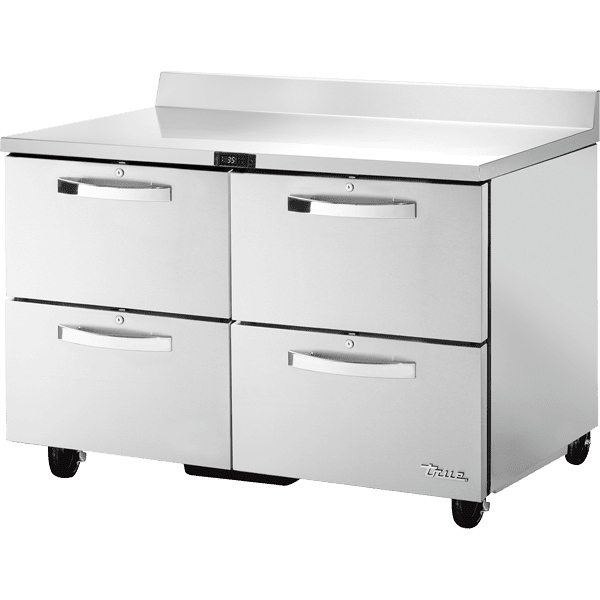

True TWT-48D-4-HC~SPEC3 Worktop Refrigerator with Drawers with SPEC3 Package, 48-3/8" Wide

The True TWT-48D-4-HC~SPEC3 is a worktop refrigerator with drawers with SPEC3 package from the TWT Series. It stores product in four drawers, holds 33°F to 38°F and runs on R290 hydrocarbon refrigerant. It plugs into a 115/60/1 outlet (2.0 A).

Refrigeration System

A factory-balanced, self-contained capillary tube refrigeration system holds 33°F to 38°F. True sizes the system generously for the cabinet, which helps it recover after drawer openings. R290 is a natural hydrocarbon refrigerant with zero ozone depletion potential and a very low global warming potential.

Electronically commutated (ECM) evaporator and condenser fan motors use less power, run cooler and deliver a more consistent airflow, which improves reliability and temperature uniformity. The evaporator coil is epoxy coated to resist corrosion. The condensing unit slides out from the back of the cabinet for cleaning and service. The compressor is rated at 1/5 HP.

Why Operators Choose It

• SPEC3 package: Built to True's SPEC3 specification with a stainless steel interior liner, a stainless steel back, all-metal work-spec handles and electronic temperature control with a digital display.
• Natural refrigerant: R290 hydrocarbon refrigerant with zero ozone depletion potential and very low global warming potential.
• ECM fan motors: Electronically commutated evaporator and condenser fan motors run cooler and more efficiently and move a steadier volume of air.
• One-piece top and backsplash: The worktop and backsplash are formed from a single piece, leaving no seam to trap food or bacteria.
• Lifetime-guaranteed hardware: True backs the door handles on this cabinet with a lifetime guarantee.
• Epoxy-coated evaporator: Coating protects the coil against corrosion.
• Foamed-in-place insulation: High-density polyurethane insulation with zero ODP and zero GWP.
• Tool-free gaskets: One-piece magnetic gaskets pull out without tools for cleaning.
• NSF/ANSI 7: Compliant for open food product.

Cabinet & Drawer Construction

Exterior: stainless steel front, top, sides, and back. Interior: stainless steel liner. Stainless steel floor with coved corners. The cabinet is foamed in place with high-density polyurethane insulation. Drawers: stainless steel exterior drawer facings and liners. Stainless steel drawer frames. Drawers ride on heavy-duty stainless steel slides and rollers; each drawer accommodates one full size 12"L x 18"W x 6"D food storage box or one 1/3-size and one 1/2-size pan (pans sold separately).

Ideal For

Prep stations and cook lines that need cold storage and a stainless work surface in the same footprint.

Specifications

Installation & Utility Requirements

Requires a dedicated 115/60/1, 15 amp outlet; the unit ships pre-wired with a cord and NEMA 5-15P plug. Listed depth does not include 1-1/2" for door handles. Listed depth does not include 1" for rear bumpers. Listed height does not include 6-1/4" for castors or 6" for optional legs. Follow True's installation manual for clearances, leveling and start-up.

Factory Options (Additional Cost)

• 220-240V/50-60Hz
• 208-230V/60Hz
• 6" (153 mm) standard legs
• 6" (153 mm) seismic/flanged legs
• 2-1/2" (64 mm) diameter castors
• Single overshelf
• Double overshelf
• 28-1/4" (718 mm) deep, 1/2" (13 mm) thick, white polyethylene cutting board. Requires "L" brackets
• Cutting boards provided by others. Requires "L" brackets. Field installed brackets provided by True (contact factory)
• ADA compliant models with 34" (864 mm) work surface height

Warranty

7-year parts & labor; 7-year compressor coverage from True Manufacturing.

Download the True TWT-48D-4-HC~SPEC3 spec sheet (PDF)

Specifications per True Manufacturing data; subject to change by the manufacturer.
