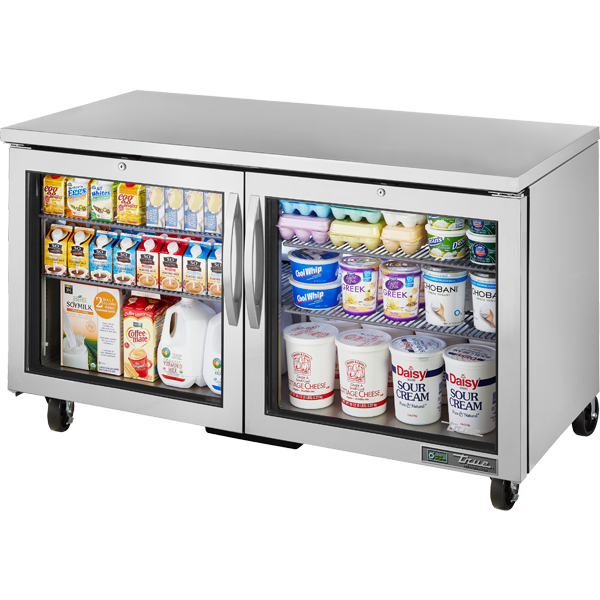

True TUC-60G-HC~FGD01 Undercounter Glass Door Refrigerator, 60-3/8" Wide

The True TUC-60G-HC~FGD01 is an undercounter glass door refrigerator from the TUC Series. It stores product behind two glass doors on four adjustable shelves, holds 33°F to 38°F and runs on R290 hydrocarbon refrigerant. It plugs into a 115/60/1 outlet (4.0 A).

Refrigeration System

A factory-balanced, self-contained capillary tube refrigeration system holds 33°F to 38°F. True sizes the system generously for the cabinet, which helps it recover after door openings. R290 is a natural hydrocarbon refrigerant with zero ozone depletion potential and a very low global warming potential.

Electronically commutated (ECM) evaporator and condenser fan motors use less power, run cooler and deliver a more consistent airflow, which improves reliability and temperature uniformity. The evaporator coil is epoxy coated to resist corrosion. The condensing unit slides out from the back of the cabinet for cleaning and service. The compressor is rated at 1/4 HP.

Why Operators Choose It

• Natural refrigerant: R290 hydrocarbon refrigerant with zero ozone depletion potential and very low global warming potential.
• ECM fan motors: Electronically commutated evaporator and condenser fan motors run cooler and more efficiently and move a steadier volume of air.
• Low-E thermal glass: Double-pane, low-emissivity glass doors limit condensation and heat gain while keeping product on display.
• Self-closing doors: Positive-seal self-closing doors help protect holding temperature.
• LED interior lighting: Safety-shielded LED lighting inside the cabinet.
• Epoxy-coated evaporator: Coating protects the coil against corrosion.
• Foamed-in-place insulation: High-density polyurethane insulation with zero ODP and zero GWP.
• Tool-free gaskets: One-piece magnetic gaskets pull out without tools for cleaning.
• NSF/ANSI 7: Compliant for open food product.

Cabinet & Door Construction

Exterior: stainless steel front, top and ends. Corrosion resistant GalFan coated steel back. Interior: clear coated aluminum liner. Stainless steel floor with coved corners. The cabinet is foamed in place with high-density polyurethane insulation. Doors: low-E, double pane thermal insulated glass assembly with extruded aluminum frames.

Shelving & Lighting

Four adjustable PVC-coated wire shelves measuring 27-1/2"W x 16"D. Shelves adjust in 1/2" increments. Interior LED lighting is safety shielded.

Ideal For

Cook lines, bars, coffee shops and prep stations that need cold storage tucked under a counter within arm's reach.

Specifications

Installation & Utility Requirements

Requires a dedicated 115/60/1, 15 amp outlet; the unit ships pre-wired with a cord and NEMA 5-15P plug. Listed depth does not include 1" for rear bumpers and 1/2" for door handles. Listed height does not include 6-1/4" for castors or 6" for optional legs. Follow True's installation manual for clearances, leveling and start-up.

Factory Options (Additional Cost)

• 6" (153 mm) standard legs
• 6" (153 mm) seismic/flanged legs
• 2-1/2" (64 mm) diameter castors
• Barrel locks (factory installed). Requires one per door
• Single overshelf
• Double overshelf
• TUC-27 Stacking collar
• 30" (762 mm) deep, 1/2" (13 mm) thick, white polyethylene cutting board. Requires "L" brackets
• 30" (762 mm) deep, 1/2" (13 mm) thick, composite cutting board. Requires "L" brackets
• SPEC1 option
• Exterior rectangular digital temperature display (factory installed)
• ADA compliant models with 34" (864 mm) work surface height
• Low profile models with 31-7/8" (810 mm) work surface height

Warranty

7-year parts & labor; 7-year compressor coverage from True Manufacturing.

Download the True TUC-60G-HC~FGD01 spec sheet (PDF)

Specifications per True Manufacturing data; subject to change by the manufacturer.
