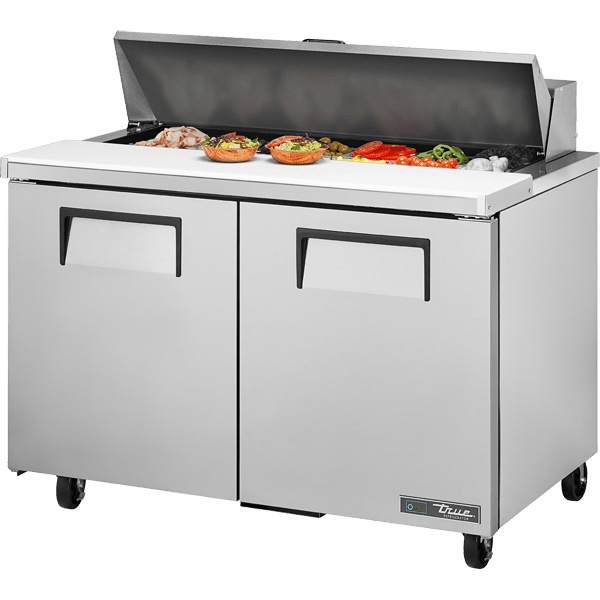

True TSSU-48-12-HC Solid Door Sandwich/Salad Prep Table, 48-3/8" Wide, 12 Pans

The True TSSU-48-12-HC is a solid door sandwich/salad prep table from the TSSU Series. It keeps 12 sixth-size food pans cold in the top rail above a refrigerated base with two solid doors, holds 33°F to 41°F and runs on R290 hydrocarbon refrigerant. It plugs into a 115/60/1 outlet (5.8 A).

Refrigeration System

A factory-balanced, self-contained capillary tube refrigeration system holds 33°F to 41°F in the food pans and in the cabinet below. R290 is a natural hydrocarbon refrigerant with zero ozone depletion potential and a very low global warming potential.

True's forced-air design moves cold air around the food pans as well as through the cabinet, in line with NSF/ANSI 7. The evaporator coil is epoxy coated to resist corrosion. The condensing unit slides out from the back of the cabinet for cleaning and service. The compressor is rated at 1/3 HP.

Why Operators Choose It

• Pans included: Ships with 12 clear polycarbonate sixth-size food pans; the opening also accepts other pan sizes with optional divider bars.
• Insulated lid and hood: Foam-insulated stainless steel lid and hood hold pan temperatures, limit condensation and lift off for cleaning.
• Full-length cutting board: Removable 11-3/4" deep high-density polyethylene board gives a sanitary prep surface across the full width.
• Natural refrigerant: R290 hydrocarbon refrigerant with zero ozone depletion potential and very low global warming potential.
• Self-closing doors with stay-open: Doors close themselves for a positive seal yet hold open at 90° for loading.
• Epoxy-coated evaporator: Coating protects the coil against corrosion.
• Foamed-in-place insulation: High-density polyurethane insulation with zero ODP and zero GWP.
• Tool-free gaskets: One-piece magnetic gaskets pull out without tools for cleaning.
• NSF/ANSI 7: Compliant for open food product.

Prep Top & Pans

The top holds twelve sixth-size, 4" deep clear polycarbonate food pans (included) and also accepts 6" deep pans supplied by others. The pan opening takes other pan sizes with available divider bars. An insulated stainless steel lid and hood cover the pans and lift off for cleaning. An 11-3/4" deep, 1/2" thick, removable white polyethylene cutting board runs the full length of the unit.

Cabinet & Door Construction

Exterior: stainless steel front, top and ends. Corrosion resistant GalFan coated steel back. Interior: clear coated aluminum liner. Stainless steel floor with coved corners. The cabinet is foamed in place with high-density polyurethane insulation. Doors: stainless steel exterior with white aluminum liner.

Shelving

Four adjustable PVC-coated wire shelves measuring 21-9/16"W x 16"D. Shelves adjust in 1/2" increments.

Ideal For

Sandwich shops, delis, pizzerias, salad bars and fast-casual lines that assemble to order from cold ingredients.

Specifications

Installation & Utility Requirements

Runs on 115/60/1 power through a NEMA 5-15P plug. Listed depth does not include 1" for rear bumpers. Listed height does not include 6-1/4" for castors or 6" for optional legs. Follow True's installation manual for clearances, leveling and start-up.

Factory Options (Additional Cost)

• 230-240V/50Hz
• 6" (153 mm) standard legs
• 6" (153 mm) seismic/flanged legs
• 2-1/2" (64 mm) diameter castors
• Barrel locks (factory installed). Requires one per door
• Additional shelves
• Single overshelf
• Double overshelf
• Flat lid
• Sneezeguard
• 19" (483 mm) deep, 1/2" (13 mm) thick, white polyethylene cutting board. Requires "L" brackets
• 19" (483 mm) deep, 3/4" (20 mm) thick, white polyethylene cutting board. Requires "L" brackets
• 11-3/4" (299 mm) deep, 1/2" (13 mm) thick, composite cutting board. Requires "L" brackets
• 19" (483 mm) deep, 1/2" (13 mm) thick, composite cutting board. Requires "L" brackets
• Crumb catcher. Requires crumb catcher cutting board for proper installation
• Pan dividers
• Exterior rectangular digital temperature display (factory installed)
• ADA compliant model with 34" (864 mm) work surface height

Warranty

7-year parts & labor; 7-year compressor coverage from True Manufacturing.

Download the True TSSU-48-12-HC spec sheet (PDF)

Specifications per True Manufacturing data; subject to change by the manufacturer.
