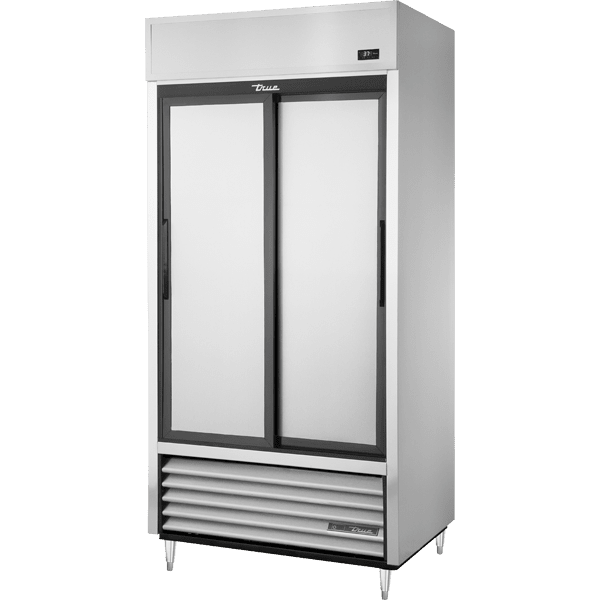

True TSD-33-HC Reach-In Solid Slide Door Refrigerator, 39-1/2" Wide

The True TSD-33-HC is a reach-in solid slide door refrigerator from the TSD Series. It stores product behind two sliding solid doors on six adjustable shelves, holds 33°F to 38°F and runs on R290 hydrocarbon refrigerant. It plugs into a 115/60/1 outlet (6.5 A).

Refrigeration System

A factory-balanced, self-contained capillary tube refrigeration system with a bottom-mounted condensing unit holds 33°F to 38°F. True sizes the system generously for the cabinet, which helps it recover after door openings. R290 is a natural hydrocarbon refrigerant with zero ozone depletion potential and a very low global warming potential.

Electronically commutated (ECM) evaporator and condenser fan motors use less power, run cooler and deliver a more consistent airflow, which improves reliability and temperature uniformity. The evaporator coil is epoxy coated to resist corrosion. The compressor is rated at 1/2 HP.

Why Operators Choose It

• Natural refrigerant: R290 hydrocarbon refrigerant with zero ozone depletion potential and very low global warming potential.
• ECM fan motors: Electronically commutated evaporator and condenser fan motors run cooler and more efficiently and move a steadier volume of air.
• Bottom-mounted condensing unit: Positioned for easy maintenance; the compressor runs in the coolest, most grease-free part of the kitchen and the cabinet top stays free for storage.
• Self-closing doors: Positive-seal self-closing doors help protect holding temperature.
• Exterior temperature display: Check cabinet temperature at a glance from outside the cabinet.
• LED interior lighting: Safety-shielded LED lighting inside the cabinet.
• Epoxy-coated evaporator: Coating protects the coil against corrosion.
• Foamed-in-place insulation: High-density polyurethane insulation with zero ODP and zero GWP.
• NSF/ANSI 7: Compliant for open food product.

Cabinet & Door Construction

Exterior: stainless steel front. Anodized quality aluminum ends. Corrosion resistant GalFan coated steel back. Interior: clear coated aluminum liner. Stainless steel floor with coved corners. The cabinet is foamed in place with high-density polyurethane insulation.

Shelving & Lighting

Six adjustable PVC-coated wire shelves measuring 17-1/4"W x 21-1/8"D. Shelves adjust in 1/2" increments. Interior LED lighting is safety shielded.

Ideal For

Restaurant back-of-house, hotels, schools, hospitals and catering kitchens that need dependable cold storage close to the line.

Specifications

Installation & Utility Requirements

Requires a dedicated 115/60/1, 15 amp outlet; the unit ships pre-wired with a cord and NEMA 5-15P plug. Listed depth does not include 3/8" for door handle. Listed height does not include 6-1/8" for legs or 5" for optional castors. Follow True's installation manual for clearances, leveling and start-up.

Factory Options (Additional Cost)

• 2-1/2" (64 mm) diameter castors
• 4" (102 mm) diameter castors
• Siesmic/flanged legs
• Door locks
• Stainless steel interior
• Additional shelves

Warranty

7-year parts & labor; 7-year compressor coverage from True Manufacturing.

Download the True TSD-33-HC spec sheet (PDF)

Specifications per True Manufacturing data; subject to change by the manufacturer.
