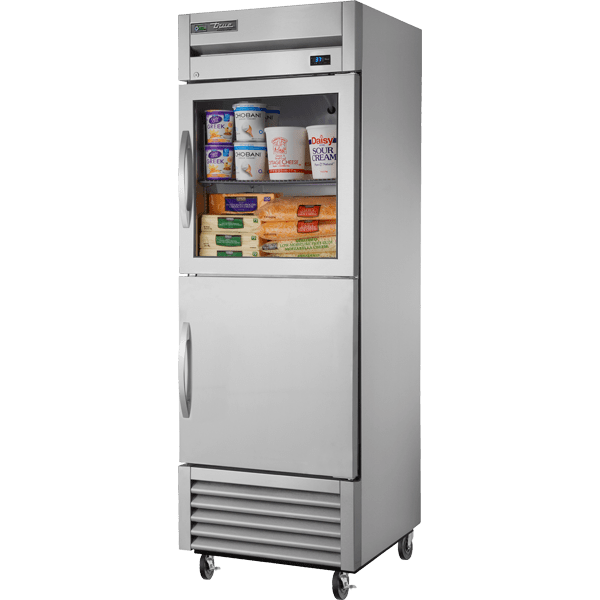

True TS-23-1-G-1-HC~FGD01 Reach-In Combination Half Swing Door Stainless Steel Refrigerator, 27" Wide

The True TS-23-1-G-1-HC~FGD01 is a reach-in combination half swing door stainless steel refrigerator from the TS Series. It stores product behind one glass and one solid half door on three adjustable shelves, holds 33°F to 38°F and runs on R290 hydrocarbon refrigerant. It plugs into a 115/60/1 outlet (2.2 A).

Refrigeration System

A factory-balanced, self-contained capillary tube refrigeration system with a bottom-mounted condensing unit holds 33°F to 38°F. True sizes the system generously for the cabinet, which helps it recover after door openings. R290 is a natural hydrocarbon refrigerant with zero ozone depletion potential and a very low global warming potential.

Electronically commutated (ECM) evaporator and condenser fan motors use less power, run cooler and deliver a more consistent airflow, which improves reliability and temperature uniformity. The evaporator coil is epoxy coated to resist corrosion. The compressor is rated at 1/4 HP.

Why Operators Choose It

• Natural refrigerant: R290 hydrocarbon refrigerant with zero ozone depletion potential and very low global warming potential.
• ECM fan motors: Electronically commutated evaporator and condenser fan motors run cooler and more efficiently and move a steadier volume of air.
• Bottom-mounted condensing unit: Positioned for easy maintenance; the compressor runs in the coolest, most grease-free part of the kitchen and the cabinet top stays free for storage.
• Low-E thermal glass: Double-pane, low-emissivity glass doors limit condensation and heat gain while keeping product on display.
• Self-closing doors: Positive-seal self-closing doors help protect holding temperature.
• Lifetime-guaranteed hardware: True backs the door hinges and handles on this cabinet with a lifetime guarantee.
• Locks standard: Door locks are standard.
• Exterior temperature display: Check cabinet temperature at a glance from outside the cabinet.
• LED interior lighting: Safety-shielded LED lighting inside the cabinet.
• Castors standard: Ships on 4" castors with locks on the front set.
• Epoxy-coated evaporator: Coating protects the coil against corrosion.
• Foamed-in-place insulation: High-density polyurethane insulation with zero ODP and zero GWP.
• Tool-free gaskets: One-piece magnetic gaskets pull out without tools for cleaning.
• NSF/ANSI 7: Compliant for open food product.

Cabinet & Door Construction

Exterior: stainless steel solid half doors, front and sides. Corrosion resistant GalFan coated steel back. Interior: stainless steel liner and floor. The cabinet is foamed in place with high-density polyurethane insulation. Doors: solid half door - stainless steel exterior and liner. Glass half door - Low-E, double pane thermal glass assembly with extruded aluminum frame.

Shelving & Lighting

Three adjustable PVC-coated wire shelves measuring 22-7/8"W x 23-1/4"D. Shelves adjust in 1/2" increments. Interior LED lighting is safety shielded.

Ideal For

Restaurant back-of-house, hotels, schools, hospitals and catering kitchens that need dependable cold storage close to the line.

Specifications

Installation & Utility Requirements

Requires a dedicated 115/60/1, 15 amp outlet; the unit ships pre-wired with a cord and NEMA 5-15P plug. Listed depth does not include 1-3/8" for door handle. Listed height does not include 5" for castors or 6" for optional legs. Follow True's installation manual for clearances, leveling and start-up.

Factory Options (Additional Cost)

• 6" (153 mm) standard legs
• 6" (153 mm) seismic/flanged legs
• 2-1/2" (64mm) castors
• Alternate door hinging (factory installed)
• Additional shelves
• Half door bun tray racks. Each holds up to eleven 18"L x 26"D (458 mm x 661 mm) sheet pans (sold separately)

Warranty

7-year parts & labor; 7-year compressor coverage from True Manufacturing.

Download the True TS-23-1-G-1-HC~FGD01 spec sheet (PDF)

Specifications per True Manufacturing data; subject to change by the manufacturer.
