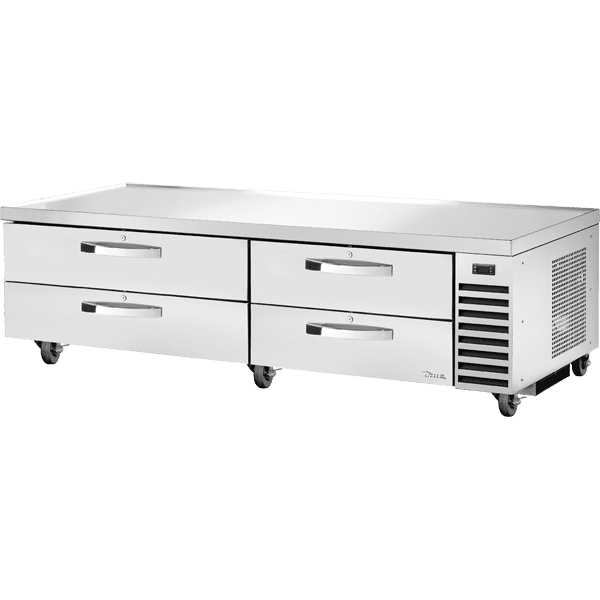

True TRCB-82-HC~SPEC3 Refrigerated Chef Base with Four Drawers with SPEC3 Package, 82-3/8" Wide

The True TRCB-82-HC~SPEC3 is a refrigerated chef base with four drawers with SPEC3 package from the TRCB Series. It stores pans in four refrigerated drawers beneath a reinforced stainless steel top rated for 1084 lb, holds 33°F to 38°F and runs on R290 hydrocarbon refrigerant. It plugs into a 115/60/1 outlet (4.4 A).

Refrigeration System

A factory-balanced, self-contained capillary tube refrigeration system holds 33°F to 38°F. True sizes the system generously for the cabinet, which helps it recover after drawer openings. R290 is a natural hydrocarbon refrigerant with zero ozone depletion potential and a very low global warming potential.

The evaporator coil is epoxy coated to resist corrosion. The condensing unit slides out from the side of the cabinet for cleaning and service. The compressor is rated at 1/3 HP.

Why Operators Choose It

• Reinforced top: One-piece 300 series stainless steel top with a drip-resistant V edge supports up to 1084 lb.
• Stainless drawer slides: Heavy-duty stainless steel slides and rollers come out without tools for cleaning.
• SPEC3 package: Built to True's SPEC3 specification with a stainless steel interior liner, a stainless steel back and all-metal work-spec handles.
• Natural refrigerant: R290 hydrocarbon refrigerant with zero ozone depletion potential and very low global warming potential.
• Exterior temperature display: Check cabinet temperature at a glance from outside the cabinet.
• Epoxy-coated evaporator: Coating protects the coil against corrosion.
• Foamed-in-place insulation: High-density polyurethane insulation with zero ODP and zero GWP.
• Tool-free gaskets: One-piece magnetic gaskets pull out without tools for cleaning.
• NSF/ANSI 7: Compliant for open food product.

Cabinet & Drawer Construction

Exterior: stainless steel front, top, sides, and back. Interior: stainless steel liner and floor with coved corners. The cabinet is foamed in place with high-density polyurethane insulation. Drawers: stainless steel exterior drawer facings and liners. Stainless steel drawer frames. Drawers ride on heavy-duty stainless steel slides and rollers; each drawer accommodates three and right drawer accommodates two full size 12"L x 20"W x 4"D food pans (pans sold separately).

Ideal For

Cook lines that set countertop cooking equipment over refrigerated storage so ingredients stay within reach of the cook.

Specifications

Installation & Utility Requirements

Requires a dedicated 115/60/1, 15 amp outlet; the unit ships pre-wired with a cord and NEMA 5-15P plug. Listed depth does not include 1-1/2" for drawer handles. Listed depth does not include 1" for rear bumpers. Listed height does not include 5" for castors or 6" for optional legs. Follow True's installation manual for clearances, leveling and start-up.

Factory Options (Additional Cost)

• 220-240V/50-60Hz
• 6" (153 mm) standard legs (1 set of 6 leg mounting plates required)
• 6" (153 mm) seismic/flanged legs (1 set of 6 leg mounting plates required)
• Heavy duty, 16 gauge top (available for flat and marine top)
• Flat top (no marine edge)
• Additional size drawer divider bars
• Drawer locks

Warranty

7-year parts & labor; 7-year compressor coverage from True Manufacturing.

Download the True TRCB-82-HC~SPEC3 spec sheet (PDF)

Specifications per True Manufacturing data; subject to change by the manufacturer.
