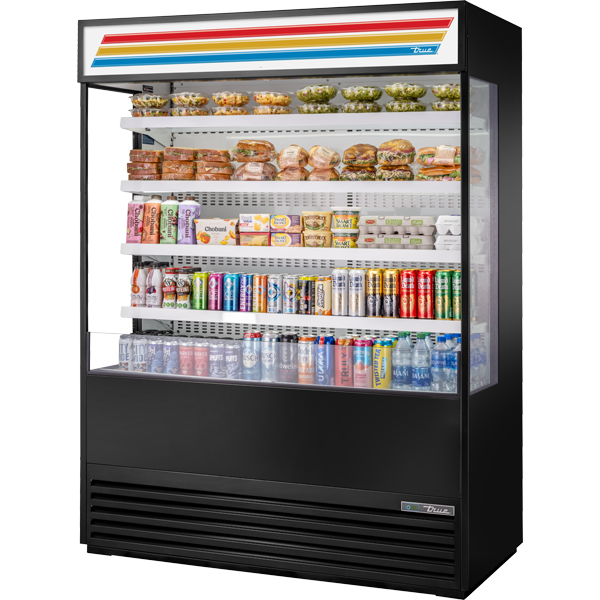

True TOAM-60GS-HC~TSL01 Open Air Merchandiser with Glass Sides, True Standard Look, 60" Wide

The True TOAM-60GS-HC~TSL01, part of the TOAM Series, is an open air merchandiser with glass sides, True Standard Look. It keeps grab-and-go product cold on four cantilever shelves in an open-front case, holds 33°F to 40°F and runs on R290 hydrocarbon refrigerant. It requires 208-230V/60Hz single-phase power with a NEMA 6-15P plug (12.2 A).

Refrigeration System

A factory-balanced, self-contained refrigeration system with a bottom-mounted condensing unit holds 33°F to 40°F. True sizes the system generously for the cabinet, which helps it recover after peak periods. R290 is a natural hydrocarbon refrigerant with zero ozone depletion potential and a very low global warming potential.

Electronically commutated (ECM) evaporator and condenser fan motors use less power, run cooler and deliver a more consistent airflow, which improves reliability and temperature uniformity. Defrost is automatic. It uses two 3/4 HP compressors.

Why Operators Choose It

• Illuminated sign panel: A lighted flat-profile sign panel across the top draws attention to the display.
• Night cover: A night cover is standard for use when the store is closed.
• Adjustable cantilever shelves: Shelves tilt up to 15° and each has its own LED light strip.
• Natural refrigerant: R290 hydrocarbon refrigerant with zero ozone depletion potential and very low global warming potential.
• ECM fan motors: Electronically commutated evaporator and condenser fan motors run cooler and more efficiently and move a steadier volume of air.
• Bottom-mounted condensing unit: Positioned for easy maintenance.
• LED interior lighting: LED lighting inside the cabinet.
• Foamed-in-place insulation: High-density polyurethane insulation with zero ODP and zero GWP.
• NSF/ANSI 7: Compliant for the storage and display of packaged or bottled product.

Cabinet Construction

Exterior: black powder coated cold rolled steel. Interior: white aluminum liner. Stainless steel interior floor and deck pans. The cabinet is foamed in place with high-density polyurethane insulation.

Shelving & Lighting

Four adjustable powder-coated cantilever shelves, each with its own LED light strip; shelves tilt up to 15°.

Ideal For

Convenience stores, grocery, cafes, cafeterias and airports selling grab-and-go drinks, sandwiches and snacks.

Specifications

Installation & Utility Requirements

Requires a 208-230V/60Hz, single-phase circuit with a NEMA 6-15R receptacle; the unit ships with a NEMA 6-15P plug. Rated for ambient conditions up to 80°F (NSF Type II). Follow True's installation manual for clearances, leveling and start-up.

Factory Options (Additional Cost)

• White exterior
• Stainless steel exterior
• Black interior liner with black cantilever shelves
• Stainless steel interior liner with stainless steel cantilever shelves
• 2-1/2" (64 mm) diameter castors (set of 4)
• 4" (102mm) castors
• 5" (127mm) castors
• 6" (153mm) standard legs
• 6" (153mm) seismic/flanged legs
• Electronic heated condensate pan
• Pricing strips
• Variety of sign panels - see our website for the latest color and sign offerings
• Additional shelves without lighting
• White locking security cover. Standard with flat sign panel. Adds 6-3/4" (171mm) to cabinet height. (Factory Installed with some Field assembly required.) Silver locking security cover. Standard with flat sign panel. Adds 6-3/4" (171mm) to cabinet height. (Factory Installed with some Field assembly required.) Black locking security cover. Standard with flat sign panel. Adds 6-3/4" (171mm) to cabinet height. (Factory Installed with some Field assembly required.)

Warranty

7-year parts & labor; 7-year compressor coverage from True Manufacturing.

Download the True TOAM-60GS-HC~TSL01 spec sheet (PDF)

Specifications per True Manufacturing data; subject to change by the manufacturer.
