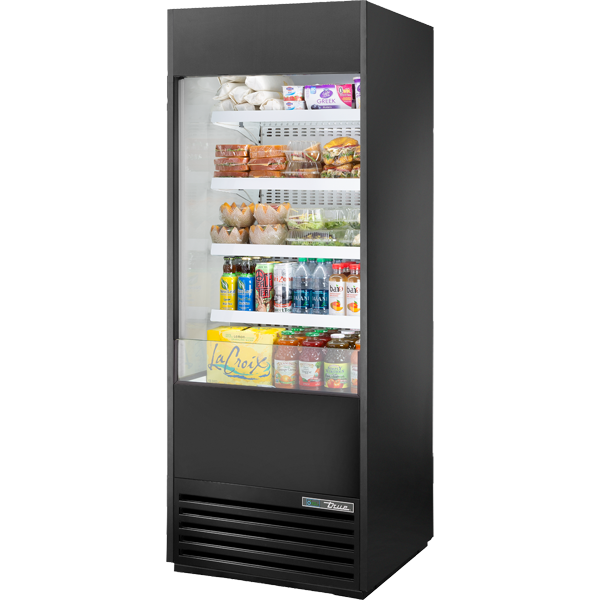

True TOAM-30-HC~NSL01 Open Air Merchandiser, Non-Standard Look, 30" Wide

The True TOAM-30-HC~NSL01, part of the TOAM Series, is an open air merchandiser, Non-Standard Look. It keeps grab-and-go product cold on four cantilever shelves in an open-front case, holds 33°F to 40°F and runs on R290 hydrocarbon refrigerant. It plugs into a 115/60/1 outlet (9.5 A).

Refrigeration System

A factory-balanced, self-contained refrigeration system with a bottom-mounted condensing unit holds 33°F to 40°F. True sizes the system generously for the cabinet, which helps it recover after peak periods. R290 is a natural hydrocarbon refrigerant with zero ozone depletion potential and a very low global warming potential.

Electronically commutated (ECM) evaporator and condenser fan motors use less power, run cooler and deliver a more consistent airflow, which improves reliability and temperature uniformity. The condenser fan motor reverses periodically to help keep the coil clear of dust and debris between scheduled cleanings. Defrost is automatic. The compressor is rated at 3/4 HP.

Why Operators Choose It

• Night cover: A night cover is standard for use when the store is closed.
• Adjustable cantilever shelves: Shelves tilt up to 15°.
• Natural refrigerant: R290 hydrocarbon refrigerant with zero ozone depletion potential and very low global warming potential.
• ECM fan motors: Electronically commutated evaporator and condenser fan motors run cooler and more efficiently and move a steadier volume of air.
• Bottom-mounted condensing unit: Positioned for easy maintenance.
• LED interior lighting: LED lighting inside the cabinet.
• Foamed-in-place insulation: High-density polyurethane insulation with zero ODP and zero GWP.
• NSF/ANSI 7: Compliant for the storage and display of packaged or bottled product.

Cabinet Construction

Exterior: powder-coated cold rolled steel, in black or white (select the color above). Interior: white aluminum liner. Stainless steel interior floor and deck pans. The cabinet is foamed in place with high-density polyurethane insulation.

Shelving & Lighting

Four adjustable powder-coated cantilever shelves; shelves tilt up to 15°. The interior is lit with LED lighting.

Ideal For

Convenience stores, grocery, cafes, cafeterias and airports selling grab-and-go drinks, sandwiches and snacks.

Available Configurations

Choose the exterior color (Black, White) above; both finishes share the same specification.

Specifications

Installation & Utility Requirements

Requires a dedicated 115/60/1, 15 amp outlet; the unit ships pre-wired with a cord and NEMA 5-15P plug. Rated for ambient conditions up to 75°F (NSF Type II). Follow True's installation manual for clearances, leveling and start-up.

Factory Options (Additional Cost)

• 220-240V/50Hz
• Stainless steel exterior
• Black interior liner with black cantilever shelves
• Stainless steel interior liner with stainless steel cantilever shelves
• 2-1/2" (64 mm) diameter castors (set of 4)
• Recessed Rollers
• 4" (102mm) castors
• 5" (127mm) castors
• 6" (153mm) castors
• 6" (153mm) standard legs
• 6" (153mm) seismic/flanged legs
• Electronic heated condensate pan
• Pricing strips
• Additional shelves without lighting
• White locking security cover. Standard with flat sign panel. Adds 6-3/4" (171mm) to cabinet height. (Factory Installed with some Field assembly required.)Silver locking security cover. Standard with flat sign panel. Adds 6-3/4" (171mm) to cabinet height. (Factory Installed with some Field assembly required.)Black locking security cover. Standard with flat sign panel. Adds 6-3/4" (171mm) to cabinet height. (Factory Installed with some Field assembly required.)

Warranty

7-year parts & labor; 7-year compressor coverage from True Manufacturing.

Download the True TOAM-30-HC~NSL01 spec sheet (PDF)

Specifications per True Manufacturing data; subject to change by the manufacturer.
