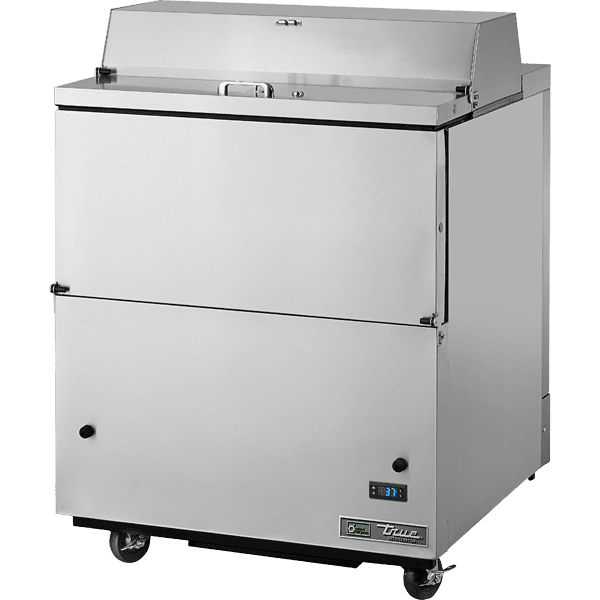

True TMC-34-S-SS-HC Milk Cooler with Stainless Steel Exterior and Stainless Steel Interior, 34" Wide

The True TMC-34-S-SS-HC is a milk cooler with stainless steel exterior and stainless steel interior from the TMC Series. It stores eight 13" x 13" milk crates behind stainless steel drop-front, flip-up doors, holds 33°F to 38°F and runs on R290 hydrocarbon refrigerant. It plugs into a 115/60/1 outlet (2.7 A).

Refrigeration System

A factory-balanced, self-contained capillary tube refrigeration system holds 33°F to 38°F. True sizes the system generously for the cabinet, which helps it recover after door openings. R290 is a natural hydrocarbon refrigerant with zero ozone depletion potential and a very low global warming potential.

Electronically commutated (ECM) evaporator and condenser fan motors use less power, run cooler and deliver a more consistent airflow, which improves reliability and temperature uniformity. The evaporator coil is epoxy coated to resist corrosion. The condensing unit slides out from the back of the cabinet for cleaning and service. The compressor is rated at 1/5 HP.

Why Operators Choose It

• Self-service doors: Stainless steel doors drop at the front and flip up on top, with a hold-open position.
• Heavy-duty floor racks: Reinforced stainless steel floor with floor racks takes the weight of full milk crates.
• Clean-out drain: A 1/2" NPT drain with plug makes washing out the interior easy.
• Natural refrigerant: R290 hydrocarbon refrigerant with zero ozone depletion potential and very low global warming potential.
• ECM fan motors: Electronically commutated evaporator and condenser fan motors run cooler and more efficiently and move a steadier volume of air.
• Locks standard: Door locks are standard.
• Exterior temperature display: Check cabinet temperature at a glance from outside the cabinet.
• Epoxy-coated evaporator: Coating protects the coil against corrosion.
• Foamed-in-place insulation: High-density polyurethane insulation with zero ODP and zero GWP.
• Tool-free gaskets: One-piece magnetic gaskets pull out without tools for cleaning.
• NSF/ANSI 7: Compliant for the storage and display of packaged or bottled product.

Cabinet & Door Construction

Exterior: stainless steel front, sides, back and top. Interior: stainless steel walls and reinforced floor. The cabinet is foamed in place with high-density polyurethane insulation.

Ideal For

School cafeterias, hospitals and institutional serving lines that hand out milk by the carton.

Specifications

Installation & Utility Requirements

Requires a dedicated 115/60/1, 15 amp outlet; the unit ships pre-wired with a cord and NEMA 5-15P plug. Listed width does not include 1/8" each side for lid pins. Listed depth does not include 1" for front bumpers. Listed depth does not include 1" for rear bumpers. Listed height does not include 5-1/8" for castors. Follow True's installation manual for clearances, leveling and start-up.

Factory Options (Additional Cost)

• 6" (153 mm) standard legs (mounting plates required)
• 6" (153 mm) seismic/flanged legs (mounting plates required)
• Corner bumpers

Warranty

7-year parts & labor; 7-year compressor coverage from True Manufacturing.

Download the True TMC-34-S-SS-HC spec sheet (PDF)

Specifications per True Manufacturing data; subject to change by the manufacturer.
