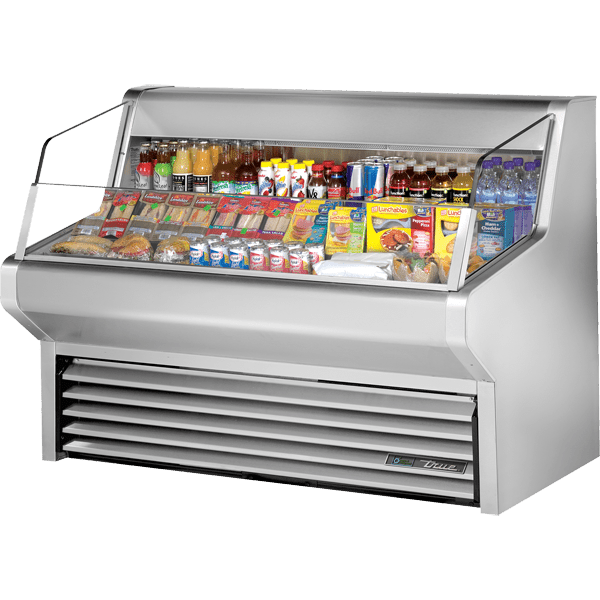

True THAC-60-S-HC-LD Horizontal Air Curtain Refrigerated Merchandiser with Stainless Exterior, 60-1/8" Wide
The True THAC-60-S-HC-LD is a horizontal air curtain refrigerated merchandiser with stainless exterior from the THAC Series. It keeps grab-and-go product cold on a tiered open display deck and holds 35°F to 40°F. It runs on 115/60/1 power with a NEMA 5-20P plug (7.1 A), so it needs a 20 amp circuit.
Refrigeration System
A factory-balanced, self-contained capillary tube refrigeration system holds 35°F to 40°F. True sizes the system generously for the cabinet, which helps it recover after peak periods.
The condenser fan motor reverses periodically to help keep the coil clear of dust and debris between scheduled cleanings. Defrost is automatic. The condensing unit slides out from the front of the cabinet for cleaning and service. The compressor is rated at 1/2 HP.
Why Operators Choose It
- LED interior lighting: Safety-shielded LED lighting inside the cabinet.
- Foamed-in-place insulation: High-density polyurethane insulation with zero ODP and zero GWP.
- NSF/ANSI 7: Compliant for the storage and display of packaged or bottled product.
Cabinet Construction
Exterior: gleaming stainless steel for those who appreciate the value of stainless. Interior: matching aluminum interior liner with stainless steel floor. The cabinet is foamed in place with high-density polyurethane insulation.
Display Deck & Lighting
Three-level tiered stainless steel display floor. Interior LED lighting is safety shielded.
Ideal For
Convenience stores, grocery, cafes, cafeterias and airports selling grab-and-go drinks, sandwiches and snacks.
Specifications
| Model | THAC-60-S-HC-LD |
| Series | THAC Series |
| Type | Horizontal Air Curtain Refrigerated Merchandiser with Stainless Exterior |
| Display tiers | 3 |
| Temperature range | 35°F to 40°F |
| Refrigeration system | capillary tube |
| Compressor | 1/2 HP |
| Dimensions (W x D x H) | 60-1/8" x 30-1/8" x 43-3/8" |
| Electrical | 115/60/1, 7.1 A |
| Plug | NEMA 5-20P |
| Cord length | 10 ft |
| Shipping weight (crated) | 465 lb |
| Certifications | cULus, UL EPH Classified |
Installation & Utility Requirements
Requires a dedicated 115/60/1, 20 amp outlet; the unit ships pre-wired with a cord and NEMA 5-20P plug. Follow True's installation manual for clearances, leveling and start-up.
Factory Options (Additional Cost)
- Black exterior
- 2" (51 mm) diameter castors
- Bumper guards
- Night cover
Download the True THAC-60-S-HC-LD spec sheet (PDF)
Specifications per True Manufacturing data; subject to change by the manufacturer.
