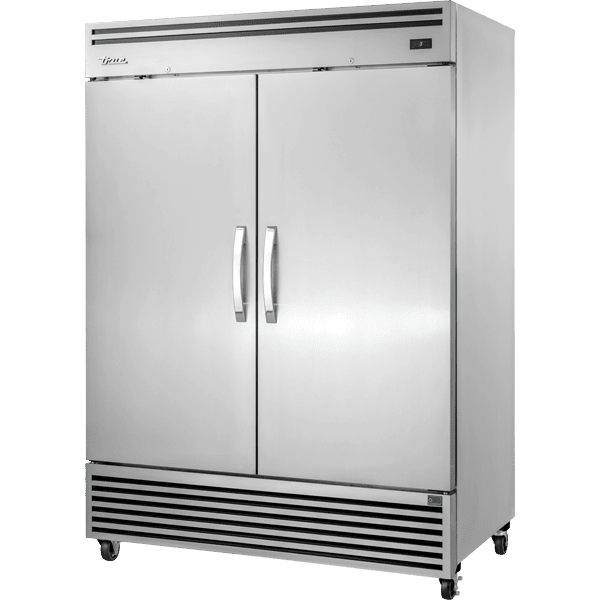

True TGN-2F-2S Reach-In Solid Swing 2 Door Freezer, 57-5/8" Wide

The True TGN-2F-2S is a reach-in solid swing 2 door freezer from the TGN Series. It stores product behind two solid doors on three adjustable shelves, holds -10°F and runs on R290 hydrocarbon refrigerant.

Refrigeration System

A factory-balanced, self-contained capillary tube refrigeration system with a bottom-mounted condensing unit holds -10°F. True sizes the system generously for the cabinet, which helps it recover after door openings. R290 is a natural hydrocarbon refrigerant with zero ozone depletion potential and a very low global warming potential.

Electronically commutated (ECM) evaporator and condenser fan motors use less power, run cooler and deliver a more consistent airflow, which improves reliability and temperature uniformity. The evaporator coil is epoxy coated to resist corrosion.

Why Operators Choose It

• Natural refrigerant: R290 hydrocarbon refrigerant with zero ozone depletion potential and very low global warming potential.
• ECM fan motors: Electronically commutated evaporator and condenser fan motors run cooler and more efficiently and move a steadier volume of air.
• Bottom-mounted condensing unit: Positioned for easy maintenance; the compressor runs in the coolest, most grease-free part of the kitchen and the cabinet top stays free for storage.
• Exterior temperature display: Check cabinet temperature at a glance from outside the cabinet.
• LED interior lighting: LED lighting inside the cabinet.
• Castors standard: Ships on 4" castors with locks on the front set.
• Epoxy-coated evaporator: Coating protects the coil against corrosion.
• Foamed-in-place insulation: High-density polyurethane insulation with zero ODP and zero GWP.
• Tool-free gaskets: One-piece magnetic gaskets pull out without tools for cleaning.

Cabinet & Door Construction

Exterior: stainless steel front. Anodized quality aluminum ends. Corrosion resistant GalFan coated steel back and top. Interior: clear coated aluminum liner. Stainless steel floor with coved corners. The cabinet is foamed in place with high-density polyurethane insulation. Doors: stainless steel exterior with clear aluminum liner. Doors extend full width of cabinet shell.

Shelving & Lighting

Three adjustable PVC-coated wire shelves measuring 12"W x 20"D. The interior is lit with LED lighting.

Ideal For

Restaurant back-of-house, hotels, schools, hospitals and catering kitchens that need dependable frozen storage close to the line.

Specifications

Installation & Utility Requirements

Listed height does not include 5" for castors. Listed depth does not include 1-3/4" for door handle. Follow True's installation manual for clearances, leveling and start-up.

Factory Options (Additional Cost)

• 220-240V/50-60Hz
• 4" (102 mm) standard legs
• 6" (153 mm) standard legs
• 6" (153 mm) seismic/flanged legs
• Additional shelves
• Additional slides
• #1 Angled tray slide kit
• #3 Universal tray slide kit

Warranty

7-year parts & labor; 7-year compressor coverage from True Manufacturing.

Download the True TGN-2F-2S spec sheet (PDF)

Specifications per True Manufacturing data; subject to change by the manufacturer.
