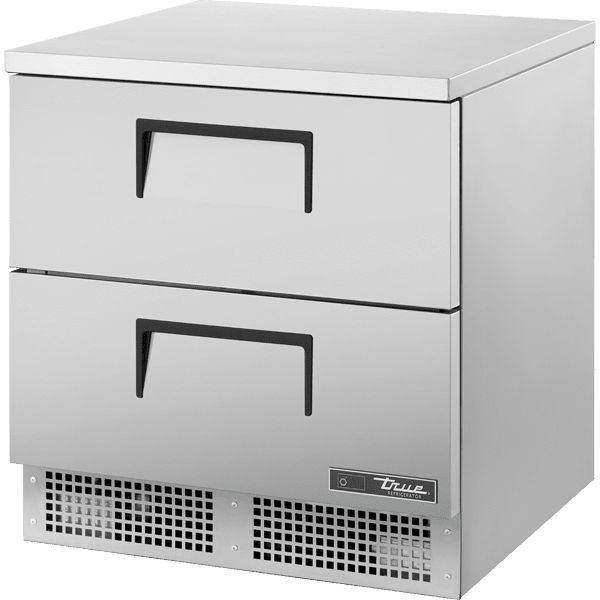

True TFT-32D-2-HC Undercounter Drawered Flat Top Refrigerator, 32-1/8" Wide

The True TFT-32D-2-HC is an undercounter drawered flat top refrigerator from the TFT Series. It stores product in two drawers, holds 33°F to 38°F and runs on R290 hydrocarbon refrigerant. It plugs into a 115/60/1 outlet (1.6 A).

Refrigeration System

A factory-balanced, self-contained capillary tube refrigeration system holds 33°F to 38°F. True sizes the system generously for the cabinet, which helps it recover after drawer openings. R290 is a natural hydrocarbon refrigerant with zero ozone depletion potential and a very low global warming potential.

Electronically commutated (ECM) evaporator and condenser fan motors use less power, run cooler and deliver a more consistent airflow, which improves reliability and temperature uniformity. True's self-cleaning RCU (condensing unit) technology removes the need to clean the condenser coil. The evaporator coil is epoxy coated to resist corrosion. The condensing unit slides out from the back of the cabinet for cleaning and service. The compressor is rated at 1/5 HP.

Why Operators Choose It

• Natural refrigerant: R290 hydrocarbon refrigerant with zero ozone depletion potential and very low global warming potential.
• ECM fan motors: Electronically commutated evaporator and condenser fan motors run cooler and more efficiently and move a steadier volume of air.
• Self-cleaning condenser: True's self-cleaning RCU technology eliminates routine condenser coil cleaning.
• Epoxy-coated evaporator: Coating protects the coil against corrosion.
• Foamed-in-place insulation: High-density polyurethane insulation with zero ODP and zero GWP.
• Tool-free gaskets: One-piece magnetic gaskets pull out without tools for cleaning.
• NSF/ANSI 7: Compliant for open food product.

Cabinet & Drawer Construction

Exterior: stainless steel front, top and ends. Corrosion resistant GalFan coated steel back. Interior: clear coated aluminum liner. Stainless steel floor with coved corners. The cabinet is foamed in place with high-density polyurethane insulation. Drawers: stainless steel exterior drawer facings and liners. Stainless steel drawer frames. Drawers ride on heavy-duty stainless steel slides and rollers; each drawer accommodates two full size 12"L x 20"W x 6"D food pans (pans sold separately).

Shelving

Two adjustable PVC-coated wire shelves. Shelves adjust in 1/2" increments.

Ideal For

Cook lines, bars, coffee shops and prep stations that need cold storage tucked under a counter within arm's reach.

Specifications

Installation & Utility Requirements

Requires a dedicated 115/60/1, 15 amp outlet; the unit ships pre-wired with a cord and NEMA 5-15P plug. The front-breathing design suits built-in installations. Follow True's installation manual for clearances, leveling and start-up.

Factory Options (Additional Cost)

• Digital temperature display (mounted in front edge of countertop)
• Heavy-duty, 16 gauge top
• Single overshelf
• Double overshelf

Warranty

7-year parts & labor; 7-year compressor coverage from True Manufacturing.

Download the True TFT-32D-2-HC spec sheet (PDF)

Specifications per True Manufacturing data; subject to change by the manufacturer.
