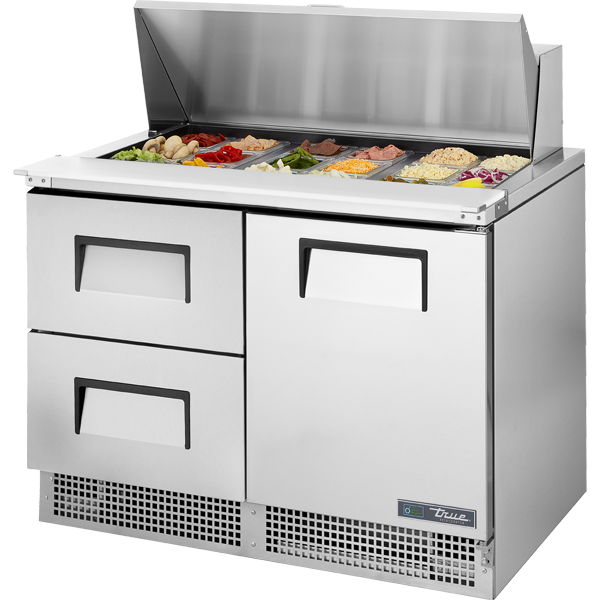

True TFP-48-18M-D-2-HC Drawered Food Prep Table, 48-1/8" Wide, 18 Pans

The True TFP-48-18M-D-2-HC is a drawered food prep table from the TFP Series. It keeps 18 sixth-size food pans cold in the top rail above a refrigerated base with one solid door and two drawers, holds 33°F to 41°F and runs on R290 hydrocarbon refrigerant. It plugs into a 115/60/1 outlet (2.9 A).

Refrigeration System

A factory-balanced, self-contained capillary tube refrigeration system holds 33°F to 41°F in the food pans and in the cabinet below. R290 is a natural hydrocarbon refrigerant with zero ozone depletion potential and a very low global warming potential.

Electronically commutated (ECM) evaporator and condenser fan motors use less power, run cooler and deliver a more consistent airflow, which improves reliability and temperature uniformity. True's forced-air design moves cold air around the food pans as well as through the cabinet, in line with NSF/ANSI 7. The evaporator coil is epoxy coated to resist corrosion. The compressor is rated at 1/5 HP.

Why Operators Choose It

• Pans included: Ships with 18 clear polycarbonate sixth-size food pans; the opening also accepts other pan sizes with optional divider bars.
• Insulated lid and hood: Foam-insulated stainless steel lid and hood hold pan temperatures, limit condensation and lift off for cleaning.
• Full-length cutting board: Removable 8" deep high-density polyethylene board gives a sanitary prep surface across the full width.
• Natural refrigerant: R290 hydrocarbon refrigerant with zero ozone depletion potential and very low global warming potential.
• ECM fan motors: Electronically commutated evaporator and condenser fan motors run cooler and more efficiently and move a steadier volume of air.
• Epoxy-coated evaporator: Coating protects the coil against corrosion.
• Foamed-in-place insulation: High-density polyurethane insulation with zero ODP and zero GWP.
• Tool-free gaskets: One-piece magnetic gaskets pull out without tools for cleaning.
• NSF/ANSI 7: Compliant for open food product.

Prep Top & Pans

The top holds 18 sixth-size, 4" deep clear polycarbonate food pans (included). The pan opening takes other pan sizes with available divider bars. An insulated stainless steel lid and hood cover the pans and lift off for cleaning. An 8" deep removable white polyethylene cutting board runs the full length of the unit.

Cabinet, Door & Drawer Construction

Exterior: stainless steel front, top and ends. Corrosion resistant GalFan coated steel back. Interior: clear coated aluminum liner. Stainless steel floor with coved corners. The cabinet is foamed in place with high-density polyurethane insulation. Door: Stainless steel exterior with clear aluminum liner. Drawers ride on heavy-duty stainless steel slides and rollers; each drawer accommodates one full size 12"L x 20"W x 6"D food pan plus three 1/9-size pans, or six 1/6-size plus three 1/9-size pans (pans sold separately).

Shelving

Two adjustable PVC-coated wire shelves. Shelves adjust in 1/2" increments.

Ideal For

High-volume sandwich, salad and burrito lines that need a large pan capacity over refrigerated storage.

Available Configurations

Door and drawer sections can be arranged in any position; tell us the layout you need when you order.

Specifications

Installation & Utility Requirements

Requires a dedicated 115/60/1, 15 amp outlet; the unit ships pre-wired with a cord and NEMA 5-15P plug. Listed depth does not include 2" for cutting board. Listed height does not include 3/4" for castors. Follow True's installation manual for clearances, leveling and start-up.

Factory Options (Additional Cost)

• 230-240V/50Hz
• Pan dividers
• Single overshelf
• Double overshelf

Warranty

7-year parts & labor; 7-year compressor coverage from True Manufacturing.

Download the True TFP-48-18M-D-2-HC spec sheet (PDF)

Specifications per True Manufacturing data; subject to change by the manufacturer.
