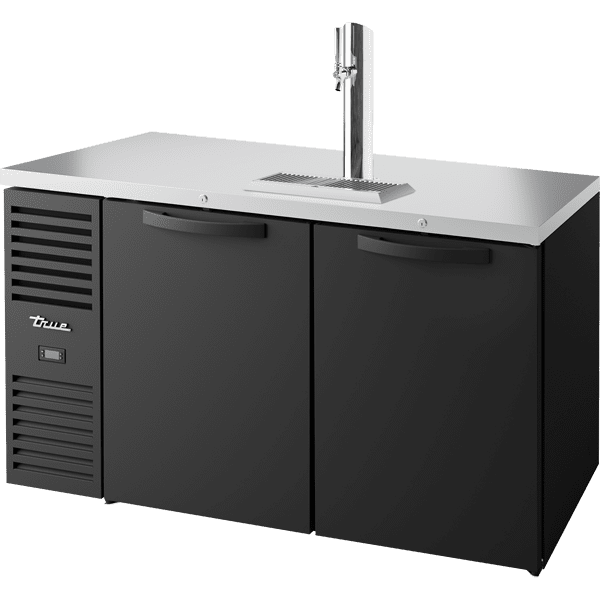

True TDR60-RISZ1-L-B-SS-1 Reach-In Direct Draw Beer Dispenser with Solid Swing Doors and Black Exterior, 60" Wide

The True TDR60-RISZ1-L-B-SS-1 is a reach-in direct draw beer dispenser with solid swing doors and black exterior from the TDR Series. It stores two half-barrel kegs or two quarter-barrel kegs or four slim quarter-barrel kegs or eight sixth-barrel kegs and pours through one insulated draft column with a single faucet, holds 33°F to 38°F and runs on R290 hydrocarbon refrigerant. It plugs into a 115/60/1 outlet (3.2 A).

Refrigeration System

A self-contained capillary tube refrigeration system holds 33°F to 38°F. R290 is a natural hydrocarbon refrigerant with zero ozone depletion potential and a very low global warming potential.

True's self-cleaning RCU (condensing unit) technology removes the need to clean the condenser coil. The refrigeration system is located on the left side of the cabinet. The compressor is rated at 1/4 HP.

Why Operators Choose It

• Insulated draft column: One 3" insulated draft column with a single faucet.
• Approved for outdoor use: UL approved for outdoor use.
• Natural refrigerant: R290 hydrocarbon refrigerant with zero ozone depletion potential and very low global warming potential.
• Self-cleaning condenser: True's self-cleaning RCU technology eliminates routine condenser coil cleaning.
• Locks standard: Door locks are standard.
• Field-reversible doors: Door swing can be reversed on site.
• Access ports: Three access ports are standard.
• Exterior temperature display: Check cabinet temperature at a glance from outside the cabinet.
• LED interior lighting: LED lighting inside the cabinet.
• Foamed-in-place insulation: High-density polyurethane insulation with zero ODP and zero GWP.
• NSF/ANSI 7: Compliant for the storage and display of packaged or bottled product.

Cabinet & Door Construction

Exterior: black powder-coated cold-rolled steel with stainless steel countertop. Interior: stainless steel floor and sides with ABS plastic ceiling. The cabinet is foamed in place with high-density polyurethane insulation.

Lighting

The interior is lit with LED lighting.

Ideal For

Bars, taprooms, restaurants and event venues pouring draft beer straight from the keg.

Specifications

Installation & Utility Requirements

Requires a dedicated 115/60/1, 15 amp outlet; the unit ships pre-wired with a cord and NEMA 5-15P plug. Front air intake and discharge allow zero-clearance installation at the sides and back. Listed depth does not include 1-3/8" for door handles. Listed height does not include 15-3/4" for draft towers or 1/4" for leg levelers. Follow True's installation manual for clearances, leveling and start-up.

Factory Options (Additional Cost)

• TruLumina® 14-Color LED lighting
• Castors: 7/8" (23 mm) rollers, 2" (51mm), 3" (77mm), 4" (102mm), 5" (127mm) castors
• 6" (153mm) legs
• 6" (153mm) seismic legs
• Optional draft towers available (contact factory)
• Alternative temperature zones available (contact factory)

Warranty

7-year parts & labor; 7-year compressor coverage from True Manufacturing.

Download the True TDR60-RISZ1-L-B-SS-1 spec sheet (PDF)

Specifications per True Manufacturing data; subject to change by the manufacturer.
