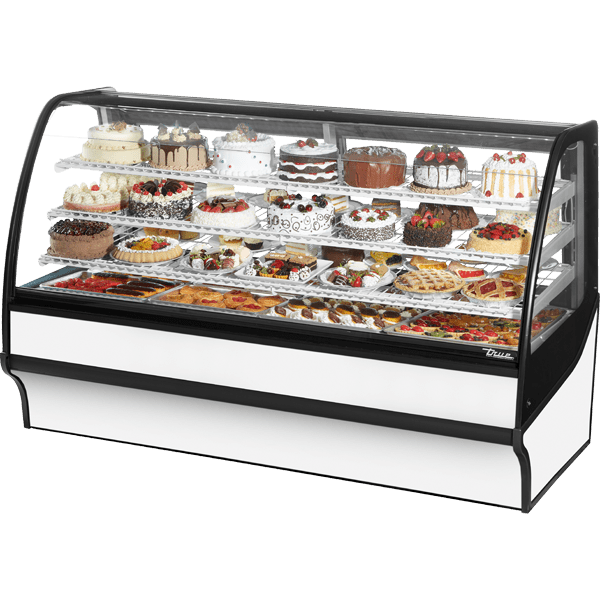

True TDM-R-77-GE/GE-W-W Curved Glass, Glass End Refrigerator with White Exterior and White Interior, 77-1/4" Wide

The True TDM-R-77-GE/GE-W-W, part of the TDM Series, is a curved glass, glass end refrigerator with white exterior and white interior. It displays product on three shelves behind curved front glass, with rear sliding glass doors for staff access, holds 33°F to 41°F and runs on R290 hydrocarbon refrigerant. It plugs into a 115/60/1 outlet (12.0 A).

Refrigeration System

A factory-balanced, self-contained capillary tube refrigeration system holds 33°F to 41°F. True sizes the system generously for the cabinet, which helps it recover after door openings. R290 is a natural hydrocarbon refrigerant with zero ozone depletion potential and a very low global warming potential.

The condenser fan motor reverses periodically to help keep the coil clear of dust and debris between scheduled cleanings. The evaporator coil is epoxy coated to resist corrosion. An optional 42°F to 65°F temperature range for chocolate or wine is available from the factory. The compressor is rated at 1/2 HP.

Why Operators Choose It

• Front glass lifts for cleaning: The curved front glass swings up to give access for cleaning.
• Strong shelving: Each shelf supports up to 150 lb.
• Natural refrigerant: R290 hydrocarbon refrigerant with zero ozone depletion potential and very low global warming potential.
• LED interior lighting: Safety-shielded LED lighting inside the cabinet.
• Epoxy-coated evaporator: Coating protects the coil against corrosion.
• Foamed-in-place insulation: High-density polyurethane insulation with zero ODP and zero GWP.
• NSF/ANSI 7: Compliant for open food product.

Cabinet & Door Construction

Exterior: white powder-coated finish with rounded front and back and glass end panels. Interior: white powder-coated finish. The cabinet is foamed in place with high-density polyurethane insulation. Rear sliding glass doors ride on a stainless steel V-channel with stainless steel bearings.

Shelving & Lighting

Three adjustable PVC-coated wire shelves. Interior LED lighting is safety shielded.

Ideal For

Bakeries, cafes, coffee shops and grocery bakery departments that sell from the case.

Specifications

Installation & Utility Requirements

Requires a dedicated 115/60/1, 15 amp outlet; the unit ships pre-wired with a cord and NEMA 5-15P plug. Follow True's installation manual for clearances, leveling and start-up.

Factory Options (Additional Cost)

• 230-240V/50Hz
• Black interior
• Black exterior
• Stainless steel interior
• Stainless steel exterior
• Mirrored interior ends
• Black wire shelves
• Chrome plated wire shelves
• Stainless mezzanine shelves
• Banking kit

Warranty

7-year parts & labor; 7-year compressor coverage from True Manufacturing.

Download the True TDM-R-77-GE/GE-W-W spec sheet (PDF)

Specifications per True Manufacturing data; subject to change by the manufacturer.
