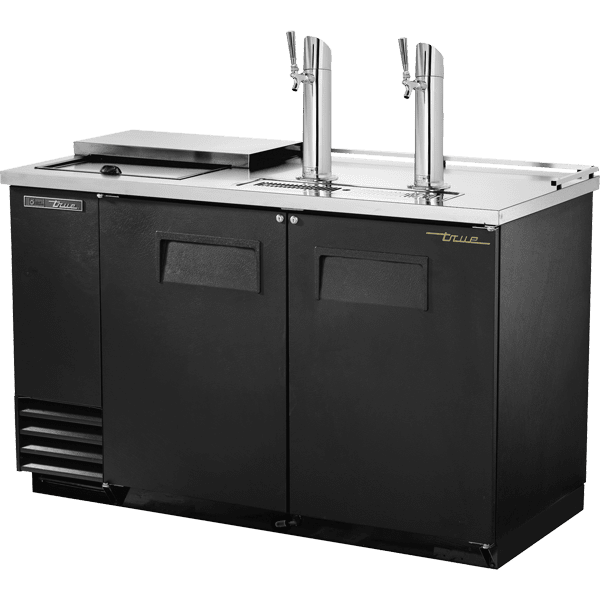

True TDD-2CT-HC Solid Swing Door Club Top Direct Draw Beer Dispenser, 58-7/8" Wide

The True TDD-2CT-HC is a solid swing door club top direct draw beer dispenser from the TDD Series. It stores two half-barrel kegs and pours through two insulated draft columns, holds 33°F to 38°F and runs on R290 hydrocarbon refrigerant. It plugs into a 115/60/1 outlet (2.8 A).

Refrigeration System

A factory-balanced, self-contained capillary tube refrigeration system holds 33°F to 38°F. True sizes the system generously for the cabinet, which helps it recover after door openings. R290 is a natural hydrocarbon refrigerant with zero ozone depletion potential and a very low global warming potential.

Electronically commutated (ECM) evaporator and condenser fan motors use less power, run cooler and deliver a more consistent airflow, which improves reliability and temperature uniformity. The evaporator coil is epoxy coated to resist corrosion. The condensing unit slides out from the front of the cabinet for cleaning and service. The compressor is rated at 1/4 HP.

Why Operators Choose It

• Insulated draft columns: Two 3" insulated draft columns; cold air is directed into the column to reduce foaming.
• Tapper manifold included: Comes standard with a two-way tapper manifold.
• Fits all keg types: Designed to accommodate all types of beer kegs.
• Front drain fitting: A 1/2" barbed T drain fitting is located on the front of the cooler.
• Natural refrigerant: R290 hydrocarbon refrigerant with zero ozone depletion potential and very low global warming potential.
• ENERGY STAR: ENERGY STAR certified.
• ECM fan motors: Electronically commutated evaporator and condenser fan motors run cooler and more efficiently and move a steadier volume of air.
• Locks standard: Door locks are standard.
• LED interior lighting: LED lighting inside the cabinet.
• Epoxy-coated evaporator: Coating protects the coil against corrosion.
• Foamed-in-place insulation: High-density polyurethane insulation with zero ODP and zero GWP.
• Tool-free gaskets: One-piece magnetic gaskets pull out without tools for cleaning.
• NSF/ANSI 7: Compliant for the storage and display of packaged or bottled product.

Cabinet & Door Construction

Exterior: black, powder coated cold-rolled steel with stainless steel countertop. Interior: stainless steel floor with 1/2" (13 mm) reinforced lip and heavy gauge galvanized steel walls. The cabinet is foamed in place with high-density polyurethane insulation. Doors: wear-resistant black powder coated exterior with heavy gauge galvanized steel liner.

Shelving & Lighting

One adjustable PVC-coated wire shelf measuring 11-3/8"W x 21-1/4"D. Shelves adjust in 1/2" increments. The interior is lit with LED lighting.

Ideal For

Bars, taprooms, restaurants and event venues pouring draft beer straight from the keg.

Specifications

Installation & Utility Requirements

Requires a dedicated 115/60/1, 15 amp outlet; the unit ships pre-wired with a cord and NEMA 5-15P plug. Listed depth does not include 1" for rear bumpers. Listed height does not include 14-1/4" for draft arms. Follow True's installation manual for clearances, leveling and start-up.

Factory Options (Additional Cost)

• 6" (153 mm) standard legs
• 6" (153 mm) seismic/flanged legs
• 2-1/2" (64 mm) diameter castors
• 4" (102 mm) diameter castors
• Double headed draft column
• Triple headed draft column
• Three-way tapper manifold
• Draft cap

Warranty

7-year parts & labor; 7-year compressor coverage from True Manufacturing.

Download the True TDD-2CT-HC spec sheet (PDF)

Specifications per True Manufacturing data; subject to change by the manufacturer.
