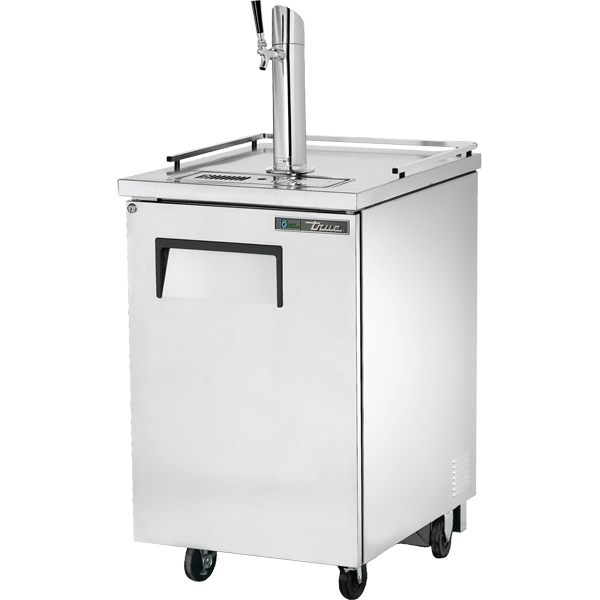

True TDD-1-S-HC Solid Swing Door Stainless Steel Direct Draw Beer Dispenser, 23-1/2" Wide

The True TDD-1-S-HC is a solid swing door stainless steel direct draw beer dispenser from the TDD Series. It stores one half-barrel keg and pours through one insulated draft column, holds 33°F to 38°F and runs on R290 hydrocarbon refrigerant. It plugs into a 115/60/1 outlet (1.4 A).

Refrigeration System

A factory-balanced, self-contained capillary tube refrigeration system holds 33°F to 38°F. True sizes the system generously for the cabinet, which helps it recover after door openings. R290 is a natural hydrocarbon refrigerant with zero ozone depletion potential and a very low global warming potential.

Electronically commutated (ECM) evaporator and condenser fan motors use less power, run cooler and deliver a more consistent airflow, which improves reliability and temperature uniformity. The evaporator coil is epoxy coated to resist corrosion. The compressor is rated at 1/5 HP.

Why Operators Choose It

• Insulated draft column: One 3" insulated draft column; cold air is directed into the column to reduce foaming.
• Fits all keg types: Designed to accommodate all types of beer kegs.
• Natural refrigerant: R290 hydrocarbon refrigerant with zero ozone depletion potential and very low global warming potential.
• ENERGY STAR: ENERGY STAR certified.
• ECM fan motors: Electronically commutated evaporator and condenser fan motors run cooler and more efficiently and move a steadier volume of air.
• Locks standard: A door lock is standard.
• Epoxy-coated evaporator: Coating protects the coil against corrosion.
• Foamed-in-place insulation: High-density polyurethane insulation with zero ODP and zero GWP.
• Tool-free gaskets: One-piece magnetic gaskets pull out without tools for cleaning.
• NSF/ANSI 7: Compliant for the storage and display of packaged or bottled product.

Cabinet & Door Construction

Exterior: stainless steel doors, front and sides. Matching aluminum back. Stainless steel counter top. Interior: stainless steel floor with 1/2" (13 mm) reinforced lip and heavy gauge galvanized steel walls. The cabinet is foamed in place with high-density polyurethane insulation. Door: stainless steel exterior with heavy gauge galvanized steel liner.

Ideal For

Bars, taprooms, restaurants and event venues pouring draft beer straight from the keg.

Specifications

Installation & Utility Requirements

Requires a dedicated 115/60/1, 15 amp outlet; the unit ships pre-wired with a cord and NEMA 5-15P plug. Listed height does not include 15-3/4" for draft arm. Follow True's installation manual for clearances, leveling and start-up.

Factory Options (Additional Cost)

• Double headed draft column
• Triple headed draft column
• Two-way tapper manifold
• Draft cap

Warranty

7-year parts & labor; 7-year compressor coverage from True Manufacturing.

Download the True TDD-1-S-HC spec sheet (PDF)

Specifications per True Manufacturing data; subject to change by the manufacturer.
