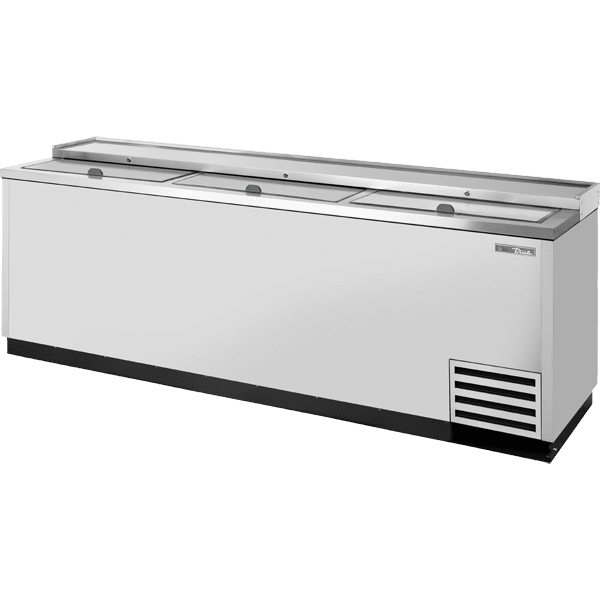

True TD-95-38-S-HC Solid Slide Lid Stainless Steel Deep Well Horizontal Bottle Cooler, 95-3/8" Wide

The True TD-95-38-S-HC is a solid slide lid stainless steel deep well horizontal bottle cooler from the TD Series. It chills bottles and cans in a deep well under three sliding lids, with room for 55 cases of 12 oz cans, holds 33°F to 38°F and runs on R290 hydrocarbon refrigerant. It plugs into a 115/60/1 outlet (3.1 A).

Refrigeration System

A factory-balanced, self-contained capillary tube refrigeration system holds 33°F to 38°F. True sizes the system generously for the cabinet, which helps it recover after lid openings. R290 is a natural hydrocarbon refrigerant with zero ozone depletion potential and a very low global warming potential.

Electronically commutated (ECM) evaporator and condenser fan motors use less power, run cooler and deliver a more consistent airflow, which improves reliability and temperature uniformity. Forced-air cooling reaches the bottles on top first, and the evaporator runs nearly the full length of the cooler for even temperatures from end to end. The evaporator coil is epoxy coated to resist corrosion. The condensing unit slides out from the front of the cabinet for cleaning and service. The compressor is rated at 1/4 HP.

Why Operators Choose It

• Deep-well design: Bottles load from the top and the cold air reaches the top layer first.
• Adjustable bin dividers: Heavy-duty PVC-coated dividers keep brands separated.
• Opener and cap catcher: Bottle cap opener and cap catcher are included for field installation.
• Natural refrigerant: R290 hydrocarbon refrigerant with zero ozone depletion potential and very low global warming potential.
• ECM fan motors: Electronically commutated evaporator and condenser fan motors run cooler and more efficiently and move a steadier volume of air.
• Locks standard: Barrel locks are standard.
• LED interior lighting: Safety-shielded LED lighting inside the cabinet.
• Epoxy-coated evaporator: Coating protects the coil against corrosion.
• Foamed-in-place insulation: High-density polyurethane insulation with zero ODP and zero GWP.
• NSF/ANSI 7: Compliant for the storage and display of packaged or bottled product.

Cabinet Construction

Exterior: stainless steel exterior, countertop and lids. Interior: heavy duty galvanized steel. The cabinet is foamed in place with high-density polyurethane insulation.

Lighting

Interior LED lighting is safety shielded.

Ideal For

High-volume bars, concession stands and venues that sell bottled and canned beverages fast.

Specifications

Installation & Utility Requirements

Requires a dedicated 115/60/1, 15 amp outlet; the unit ships pre-wired with a cord and NEMA 5-15P plug. Listed depth does not include 1" for rear bumpers. Follow True's installation manual for clearances, leveling and start-up.

Factory Options (Additional Cost)

• 6" (153 mm) standard legs
• 6" (153 mm) seismic/flanged legs
• 2-1/2" (64 mm) diameter rail castors
• 3" (77 mm) diameter rail castors

Warranty

7-year parts & labor; 7-year compressor coverage from True Manufacturing.

Download the True TD-95-38-S-HC spec sheet (PDF)

Specifications per True Manufacturing data; subject to change by the manufacturer.
