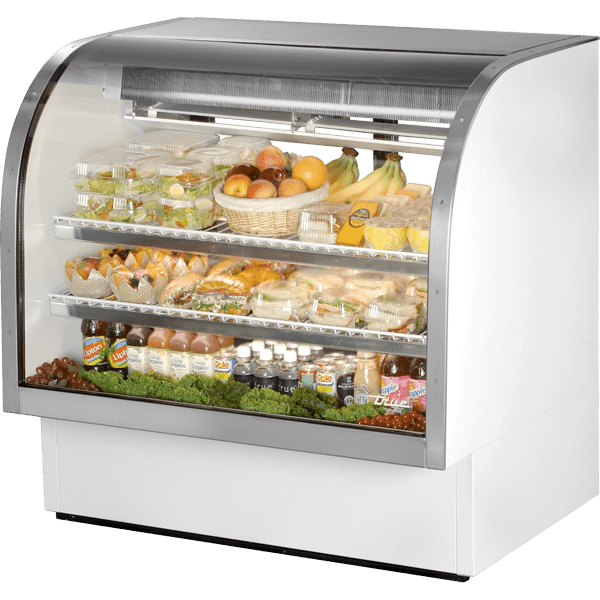

True TCGG-48-HC-LD Curved Glass Refrigerated Deli Case, 48-1/4" Wide

The True TCGG-48-HC-LD is a curved glass refrigerated deli case from the TCGG Series. It displays deli meats, cheeses and salads on two lighted shelves behind curved front glass, with rear sliding doors for service, holds 38°F to 40°F and runs on R290 hydrocarbon refrigerant. It plugs into a 115/60/1 outlet (3.3 A).

Refrigeration System

A self-contained capillary tube refrigeration system holds 38°F to 40°F. True sizes the system generously for the cabinet, which helps it recover after door openings. R290 is a natural hydrocarbon refrigerant with zero ozone depletion potential and a very low global warming potential.

A high-humidity gravity coil suits deli meats, cheeses and salads. The evaporator coil is epoxy coated to resist corrosion. Defrost is automatic. The condensing unit slides out from the back of the cabinet for cleaning and service. The compressor is rated at 1/3 HP.

Why Operators Choose It

• High-humidity display: Gravity coil refrigeration is suited to sliced meats, cheeses and salads.
• Scale receptacle: A 4 amp exterior receptacle powers a counter scale.
• Natural refrigerant: R290 hydrocarbon refrigerant with zero ozone depletion potential and very low global warming potential.
• Low-E thermal glass: Rear doors use double-pane Low-E thermal glass.
• Self-closing doors: Positive-seal self-closing doors help protect holding temperature.
• LED interior lighting: LED lighting inside the cabinet.
• Epoxy-coated evaporator: Coating protects the coil against corrosion.
• Foamed-in-place insulation: High-density polyurethane insulation with zero ODP and zero GWP.
• NSF/ANSI 7: Compliant for open food product.

Cabinet & Door Construction

Exterior: white powder coated cold rolled steel with stainless steel top and trim. Interior: white aluminum sides and top with stainless steel floor. The cabinet is foamed in place with high-density polyurethane insulation. Rear doors: low-E, double pane thermal glass inserts with mitered plastic channel frames. The curved front glass is insulated double-pane tempered glass.

Shelving & Lighting

Two adjustable, lighted, PVC-coated wire shelves on a cantilevered system with adjustable angle. The interior is lit with LED lighting.

Ideal For

Delis, grocery stores, butcher shops and markets displaying sliced meats, cheeses and prepared salads.

Specifications

Installation & Utility Requirements

Requires a dedicated 115/60/1, 15 amp outlet; the unit ships pre-wired with a cord and NEMA 5-15P plug. Listed depth does not include 7/8" for door handles. Follow True's installation manual for clearances, leveling and start-up.

Factory Options (Additional Cost)

• 6" (153 mm) standard legs
• 6" (153 mm) seismic/flanged legs
• 2-1/2" (64 mm) diameter castors
• 4" (102 mm) diameter castors
• Ratchet locks
• Additional lighted shelves
• Non-lighted shelves

Warranty

7-year parts & labor; 7-year compressor coverage from True Manufacturing.

Download the True TCGG-48-HC-LD spec sheet (PDF)

Specifications per True Manufacturing data; subject to change by the manufacturer.
