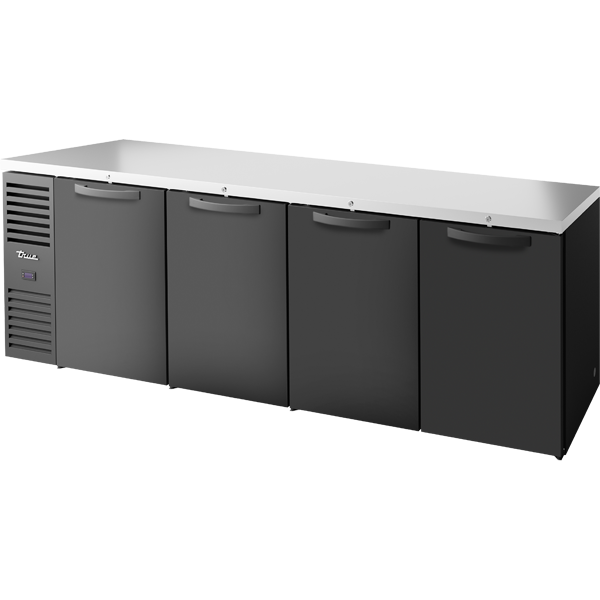

True TBR108-RISZ1-L-B-SSSS-1 Reach-In Back Bar Refrigerator with Solid Swing Doors and Black Exterior, 108" Wide

The True TBR108-RISZ1-L-B-SSSS-1 is a reach-in back bar refrigerator with solid swing doors and black exterior from the TBR Series. It stores bottled and canned product behind four solid doors, with room for up to 132 six-packs of 12 oz cans or five half-barrel kegs, holds 33°F to 38°F and runs on R290 hydrocarbon refrigerant. It plugs into a 115/60/1 outlet (3.2 A).

Refrigeration System

A self-contained capillary tube refrigeration system holds 33°F to 38°F. R290 is a natural hydrocarbon refrigerant with zero ozone depletion potential and a very low global warming potential.

True's self-cleaning RCU (condensing unit) technology removes the need to clean the condenser coil. The refrigeration system is located on the left side of the cabinet. The compressor is rated at 1/4 HP.

Why Operators Choose It

• Approved for outdoor use: UL approved for outdoor use.
• Natural refrigerant: R290 hydrocarbon refrigerant with zero ozone depletion potential and very low global warming potential.
• Self-cleaning condenser: True's self-cleaning RCU technology eliminates routine condenser coil cleaning.
• Locks standard: Door locks are standard.
• Field-reversible doors: Door swing can be reversed on site.
• Access ports: Three access ports are standard.
• Exterior temperature display: Check cabinet temperature at a glance from outside the cabinet.
• LED interior lighting: LED lighting inside the cabinet.
• Foamed-in-place insulation: High-density polyurethane insulation with zero ODP and zero GWP.
• NSF/ANSI 7: Compliant for open food product.

Cabinet & Door Construction

Exterior: black powder-coated cold-rolled steel with stainless steel countertop. Interior: stainless steel floor and sides with ABS plastic ceiling. The cabinet is foamed in place with high-density polyurethane insulation.

Shelving & Lighting

Twelve adjustable PVC-coated wire shelves measuring 17-11/16"W x 18"D. Shelves adjust in 1/2" increments. The interior is lit with LED lighting.

Ideal For

Bars, restaurants, clubs, hotels and stadium concessions that need cold bottled and canned product behind the bar.

Specifications

Installation & Utility Requirements

Requires a dedicated 115/60/1, 15 amp outlet; the unit ships pre-wired with a cord and NEMA 5-15P plug. Front air intake and discharge allow zero-clearance installation at the sides and back. Listed depth does not include 1-3/8" for door handles. Listed height does not include 1/4" for leg levelers. Follow True's installation manual for clearances, leveling and start-up.

Factory Options (Additional Cost)

• TruLumina® 14-Color LED lighting
• Castors: 7/8" (23 mm) rollers, 2" (51mm), 3" (77mm), 4" (102mm), 5" (127mm) castors
• 6" (153mm) legs
• 6" (153mm) seismic legs
• Alternative temperature zones available (contact factory)

Warranty

7-year parts & labor; 7-year compressor coverage from True Manufacturing.

Download the True TBR108-RISZ1-L-B-SSSS-1 spec sheet (PDF)

Specifications per True Manufacturing data; subject to change by the manufacturer.
