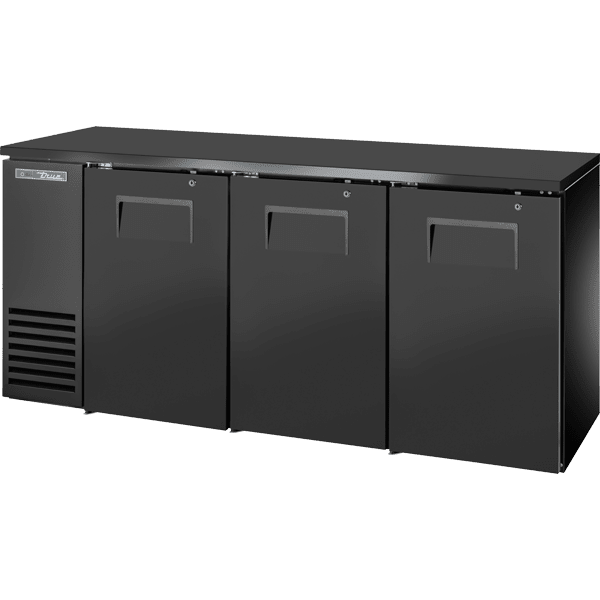

True TBB24-72-3S-Z1-BST-B-1 Solid Swing Door 24" Deep Back Bar Cooler with Black Sub Top and Black Exterior, 72-1/8" Wide
The True TBB24-72-3S-Z1-BST-B-1 is a solid swing door 24" deep back bar cooler with black sub top and black exterior from the TBB Series. It stores bottled and canned product behind three solid doors, with room for up to 125 six-packs of 12 oz cans or three half-barrel kegs, holds 35°F and runs on R290 hydrocarbon refrigerant. It plugs into a 115/60/1 outlet (3.2 A).
Refrigeration System
A self-contained capillary tube refrigeration system holds 35°F. R290 is a natural hydrocarbon refrigerant with zero ozone depletion potential and a very low global warming potential.
True's self-cleaning RCU (condensing unit) technology removes the need to clean the condenser coil. The compressor is rated at 1/4 HP.
Why Operators Choose It
- Approved for outdoor use: UL approved for outdoor use.
- Natural refrigerant: R290 hydrocarbon refrigerant with zero ozone depletion potential and very low global warming potential.
- Self-cleaning condenser: True's self-cleaning RCU technology eliminates routine condenser coil cleaning.
- Locks standard: Door locks are standard.
- LED interior lighting: LED lighting inside the cabinet.
- Foamed-in-place insulation: High-density polyurethane insulation with zero ODP and zero GWP.
- NSF/ANSI 7: Compliant for the storage and display of packaged or bottled product.
Cabinet & Door Construction
Exterior: black powder-coated cold-rolled steel with a black sub top. Interior: stainless steel floor with heavy gauge galvanized steel walls. The cabinet is foamed in place with high-density polyurethane insulation. Doors: galvanized steel door liner.
Shelving & Lighting
Six adjustable PVC-coated wire shelves in two sizes (17-11/16"W x 18"D and 20"W x 18"D). Shelves adjust in 1/2" increments. The interior is lit with LED lighting.
Ideal For
Bars, restaurants, clubs, hotels and stadium concessions that need cold bottled and canned product behind the bar.
Specifications
| Model | TBB24-72-3S-Z1-BST-B-1 |
| Series | TBB Series |
| Type | Solid Swing Door 24" Deep Back Bar Cooler with Black Sub Top and Black Exterior |
| Doors | 3 solid |
| Shelves | 6 |
| Keg capacity (1/2 barrel) | 3 |
| 12 oz can capacity | 125 six-packs |
| Temperature range | 35°F |
| Refrigerant | R290 |
| Refrigeration system | capillary tube |
| Compressor | 1/4 HP |
| Dimensions (W x D x H) | 72-1/8" x 24-7/8" x 34-1/4" |
| Electrical | 115/60/1, 3.2 A |
| Plug | NEMA 5-15P |
| Cord length | 10 ft |
| Shipping weight (crated) | 415 lb |
| Certifications | cULus, UL EPH Classified |
| Warranty | 7-year Parts & Labor; 7-year Compressor |
Installation & Utility Requirements
Requires a dedicated 115/60/1, 15 amp outlet; the unit ships pre-wired with a cord and NEMA 5-15P plug. Listed height does not include 1/4" for leg levelers. Follow True's installation manual for clearances, leveling and start-up.
Factory Options (Additional Cost)
- Castors 7/8" (23mm), 2"D (51mm), 3"D (77mm), 4"D (102mm), 5"D (127mm) castors
- 6"H (153mm) legs
- 6"H (153mm) seismic legs
- Additional shelves
- One liter or wine bottle organizers
- Bottle Organizers (available in black or gray)
Warranty
7-year parts & labor; 7-year compressor coverage from True Manufacturing.
Download the True TBB24-72-3S-Z1-BST-B-1 spec sheet (PDF)
Specifications per True Manufacturing data; subject to change by the manufacturer.
