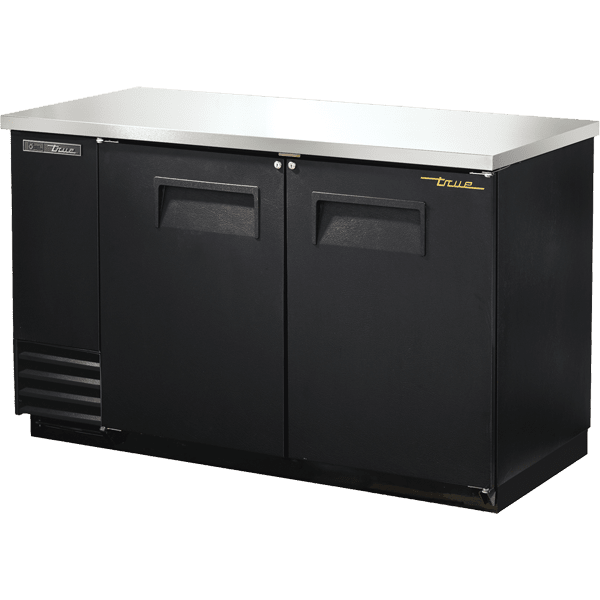

True TBB-2-HC Solid Swing Door Back Bar Cooler, 58-7/8" Wide

The True TBB-2-HC is a solid swing door back bar cooler from the TBB Series. It stores bottled and canned product behind two solid doors, with room for up to 88 six-packs of 12 oz cans or two half-barrel kegs, holds 33°F to 38°F and runs on R290 hydrocarbon refrigerant. It plugs into a 115/60/1 outlet (2.8 A).

Refrigeration System

A factory-balanced, self-contained capillary tube refrigeration system holds 33°F to 38°F. True sizes the system generously for the cabinet, which helps it recover after door openings. R290 is a natural hydrocarbon refrigerant with zero ozone depletion potential and a very low global warming potential.

Electronically commutated (ECM) evaporator and condenser fan motors use less power, run cooler and deliver a more consistent airflow, which improves reliability and temperature uniformity. The evaporator coil is epoxy coated to resist corrosion. The condensing unit slides out from the front of the cabinet for cleaning and service. The compressor is rated at 1/4 HP.

Why Operators Choose It

• Natural refrigerant: R290 hydrocarbon refrigerant with zero ozone depletion potential and very low global warming potential.
• ENERGY STAR: ENERGY STAR certified.
• ECM fan motors: Electronically commutated evaporator and condenser fan motors run cooler and more efficiently and move a steadier volume of air.
• Locks standard: Door locks are standard.
• LED interior lighting: Safety-shielded LED lighting inside the cabinet.
• Epoxy-coated evaporator: Coating protects the coil against corrosion.
• Foamed-in-place insulation: High-density polyurethane insulation with zero ODP and zero GWP.
• Tool-free gaskets: One-piece magnetic gaskets pull out without tools for cleaning.
• NSF/ANSI 7: Compliant for the storage and display of packaged or bottled product.

Cabinet & Door Construction

Exterior: black, powder coated cold-rolled steel with stainless steel countertop. Interior: stainless steel floor with 1/2" (13 mm) reinforced lip and heavy gauge galvanized steel walls. The cabinet is foamed in place with high-density polyurethane insulation. Doors: wear-resistant black powder coated exterior with heavy gauge galvanized steel liner.

Shelving & Lighting

Four adjustable PVC-coated wire shelves in two sizes (20-3/4"W x 21-1/4"D and 32"W x 21-1/4"D). Shelves adjust in 1/2" increments. Interior LED lighting is safety shielded.

Ideal For

Bars, restaurants, clubs, hotels and stadium concessions that need cold bottled and canned product behind the bar.

Specifications

Installation & Utility Requirements

Requires a dedicated 115/60/1, 15 amp outlet; the unit ships pre-wired with a cord and NEMA 5-15P plug. Listed depth does not include 1" for rear bumpers. Follow True's installation manual for clearances, leveling and start-up.

Factory Options (Additional Cost)

• 6" (153 mm) standard legs
• 6" (153 mm) seismic/flanged legs
• 2-1/2" (64 mm) diameter castors
• 4" (102 mm) diameter castors
• Additional shelves
• Wine racks
• TrueTrac one (1) Liter beer or wine bottle organizers
• TrueTrac 12 oz. (355 ml) beer bottle organizers
• Red wine thermostat
• White wine thermostat
• Chocolate thermostat

Warranty

7-year parts & labor; 7-year compressor coverage from True Manufacturing.

Download the True TBB-2-HC spec sheet (PDF)

Specifications per True Manufacturing data; subject to change by the manufacturer.
