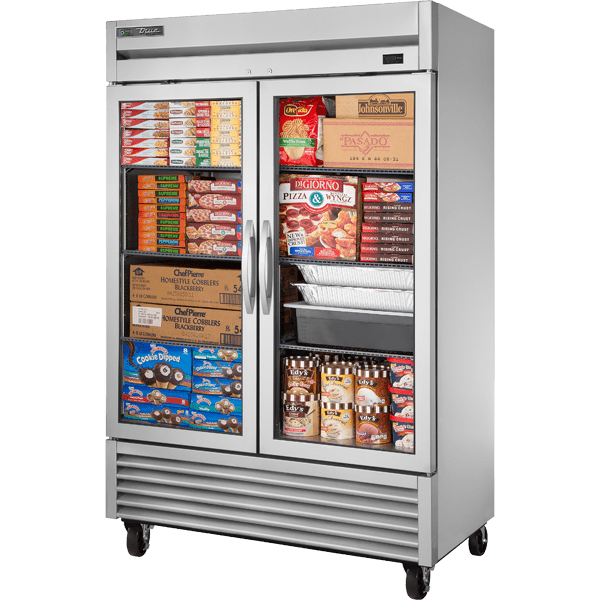

True T-49FG-HC~FGD01 Reach-In Glass Swing Door -10°F Freezer, 54-1/8" Wide

The True T-49FG-HC~FGD01 is a reach-in glass swing door -10°F freezer from the T-Series. It stores product behind two glass doors on six adjustable shelves, holds -10°F and runs on R290 hydrocarbon refrigerant. It runs on 115/60/1 power with a NEMA 5-20P plug (8.4 A), so it needs a 20 amp circuit.

Refrigeration System

A factory-balanced, self-contained capillary tube refrigeration system with a bottom-mounted condensing unit holds -10°F. True sizes the system generously for the cabinet, which helps it recover after door openings. R290 is a natural hydrocarbon refrigerant with zero ozone depletion potential and a very low global warming potential.

Electronically commutated (ECM) evaporator and condenser fan motors use less power, run cooler and deliver a more consistent airflow, which improves reliability and temperature uniformity. The evaporator coil is epoxy coated to resist corrosion. Defrost is automatic. The compressor is rated at 1 HP.

Why Operators Choose It

• Natural refrigerant: R290 hydrocarbon refrigerant with zero ozone depletion potential and very low global warming potential.
• ECM fan motors: Electronically commutated evaporator and condenser fan motors run cooler and more efficiently and move a steadier volume of air.
• Bottom-mounted condensing unit: Positioned for easy maintenance; the compressor runs in the coolest, most grease-free part of the kitchen and the cabinet top stays free for storage.
• Self-closing doors: Positive-seal self-closing doors help protect holding temperature.
• Lifetime-guaranteed hardware: True backs the door hinges and handles on this cabinet with a lifetime guarantee.
• Locks standard: Door locks are standard.
• Exterior temperature display: Check cabinet temperature at a glance from outside the cabinet.
• LED interior lighting: Safety-shielded LED lighting inside the cabinet.
• Castors standard: Ships on 4" castors with locks on the front set.
• Epoxy-coated evaporator: Coating protects the coil against corrosion.
• Foamed-in-place insulation: High-density polyurethane insulation with zero ODP and zero GWP.
• Tool-free gaskets: One-piece magnetic gaskets pull out without tools for cleaning.
• NSF/ANSI 7: Compliant for open food product.

Cabinet & Door Construction

Exterior: stainless steel front. Anodized quality aluminum ends. Corrosion resistant GalFan coated steel back. Interior: clear coated aluminum liner. Stainless steel floor with coved corners. The cabinet is foamed in place with high-density polyurethane insulation. Doors: triple pane thermal glass assemblies with extruded aluminum frames.

Shelving & Lighting

Six adjustable PVC-coated wire shelves measuring 24-9/16"W x 22-3/8"D. Shelves adjust in 1/2" increments. Interior LED lighting is safety shielded.

Ideal For

Restaurant back-of-house, hotels, schools, hospitals and catering kitchens that need dependable frozen storage close to the line.

Specifications

Installation & Utility Requirements

Requires a dedicated 115/60/1, 20 amp outlet; the unit ships pre-wired with a cord and NEMA 5-20P plug. Listed depth does not include 1-3/8" for door handle. Listed height does not include 5" for castors or 6" for optional legs. Follow True's installation manual for clearances, leveling and start-up.

Factory Options (Additional Cost)

• 6" (153 mm) standard legs
• 6" (153 mm) seismic/flanged legs
• 2-1/2" (64mm) stem castors
• 2-1/2" (64 mm) standard legs
• Alternate door hinging (factory installed)
• Novelty baskets
• Additional shelves
• Half door bun tray racks. Each holds up to eleven 18"L x 26"D (458 mm x 661 mm) sheet pans (sold separately) (airflow guards need to be removed)
• Full door bun tray racks. Each holds up to twenty-two 18"L x 26"D (458 mm x 661 mm) sheet pans (sold separately) (airflow guards need to be removed)

Warranty

7-year parts & labor; 7-year compressor coverage from True Manufacturing.

Download the True T-49FG-HC~FGD01 spec sheet (PDF)

Specifications per True Manufacturing data; subject to change by the manufacturer.
