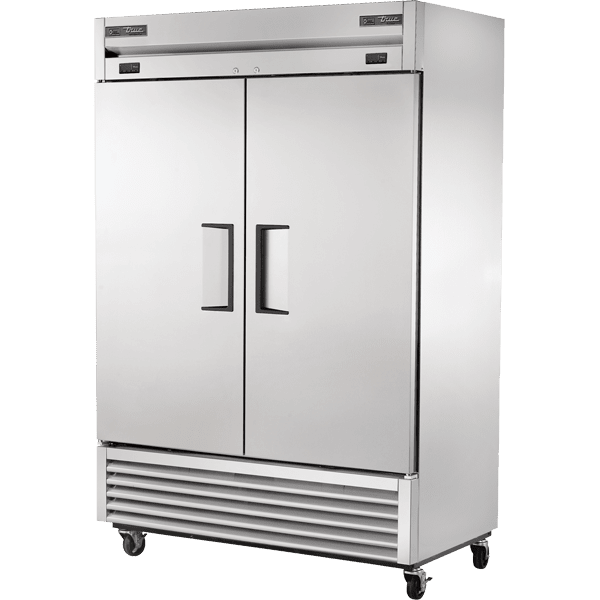

True T-49DT-HC Reach-In Solid Swing Door Dual Temperature Refrigerator/Freezer, 54-1/8" Wide

The True T-49DT-HC is a reach-in solid swing door dual temperature refrigerator/freezer from the T-Series. It stores product behind two solid doors on six adjustable shelves, keeps the refrigerator section at 33°F to 38°F and the freezer section at -10°F and runs on R290 hydrocarbon refrigerant. The refrigerator is the left section and the freezer is the right. It plugs into a 115/60/1 outlet (6.4 A).

Refrigeration System

Two independent, self-contained capillary tube refrigeration systems, one for each section, hold the refrigerator at 33°F to 38°F and the freezer at -10°F. R290 is a natural hydrocarbon refrigerant with zero ozone depletion potential and a very low global warming potential.

Electronically commutated (ECM) evaporator and condenser fan motors use less power, run cooler and deliver a more consistent airflow, which improves reliability and temperature uniformity. Evaporators are epoxy coated to resist corrosion. The freezer section defrosts automatically. Compressors are rated at 1/4 HP (refrigerator) and 1/2 HP (freezer).

Why Operators Choose It

• Natural refrigerant: R290 hydrocarbon refrigerant with zero ozone depletion potential and very low global warming potential.
• ECM fan motors: Electronically commutated evaporator and condenser fan motors run cooler and more efficiently and move a steadier volume of air.
• Bottom-mounted condensing unit: Positioned for easy maintenance; the compressor runs in the coolest, most grease-free part of the kitchen and the cabinet top stays free for storage.
• Self-closing doors: Positive-seal self-closing doors help protect holding temperature.
• Lifetime-guaranteed hardware: True backs the door hinges and handles on this cabinet with a lifetime guarantee.
• Locks standard: Door locks are standard.
• Exterior temperature display: Two exterior digital displays, one for each section.
• Castors standard: Ships on 4" castors with locks on the front set.
• Epoxy-coated evaporator: Coating protects the coil against corrosion.
• Foamed-in-place insulation: High-density polyurethane insulation with zero ODP and zero GWP.
• Tool-free gaskets: One-piece magnetic gaskets pull out without tools for cleaning.
• NSF/ANSI 7: Compliant for open food product.

Cabinet & Door Construction

Exterior: stainless steel front. Anodized quality aluminum ends. Corrosion resistant GalFan coated steel back. Interior: clear coated aluminum liner. Stainless steel floor with coved corners. The cabinet is foamed in place with high-density polyurethane insulation. Doors: stainless steel exterior with clear aluminum liners. Doors extend full width of cabinet shell.

Shelving & Lighting

Six adjustable PVC-coated wire shelves measuring 22-7/8"W x 23-1/4"D. Shelves adjust in 1/2" increments. Interior lighting is safety shielded.

Ideal For

Kitchens with limited floor space that need refrigerated and frozen storage in a single cabinet footprint.

Specifications

Installation & Utility Requirements

Requires a dedicated 115/60/1, 15 amp outlet; the unit ships pre-wired with a cord and NEMA 5-15P plug. Listed height does not include 5" for castors or 6" for optional legs. Follow True's installation manual for clearances, leveling and start-up.

Factory Options (Additional Cost)

• 6" (153 mm) standard legs
• 6" (153 mm) seismic/flanged legs
• 2-1/2" (64mm) castors
• Half door bun tray racks. Each holds up to eleven 18"L x 26"D (458 mm x 661 mm) sheet pans (sold separately) (airflow guard needs to be removed from freezer)
• Full door bun tray racks. Each holds up to twenty-two 18"L x 26"D (458 mm x 661 mm) sheet pans (sold separately) (airflow guard needs to be removed from freezer)
• Additional shelves
• Novelty baskets

Warranty

7-year parts & labor; 7-year compressor coverage from True Manufacturing.

Download the True T-49DT-HC spec sheet (PDF)

Specifications per True Manufacturing data; subject to change by the manufacturer.
