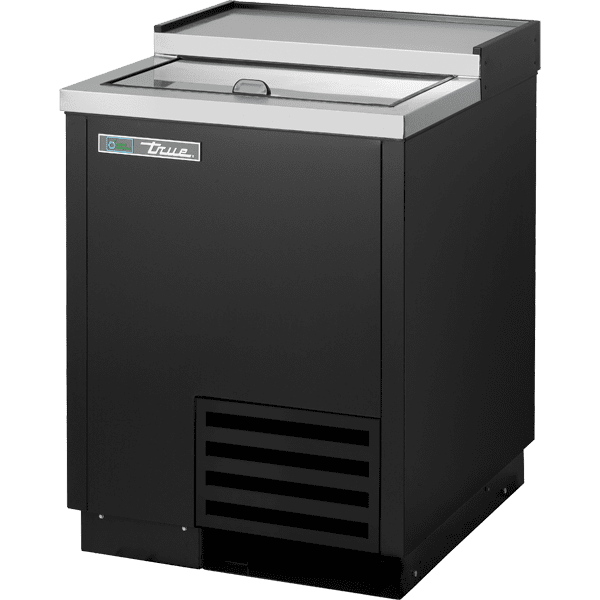

True T-24-GC-HC Solid Slide Lid Glass and Plate Chiller/Froster, 24-1/2" Wide

The True T-24-GC-HC is a solid slide lid glass and plate chiller/froster from the T-GC Series. It frosts glasses, mugs and plates under one sliding lid, with room for up to 85 ten-ounce steins, holds 0°F or colder and runs on R290 hydrocarbon refrigerant. It plugs into a 115/60/1 outlet (2.3 A).

Refrigeration System

A factory-balanced, self-contained capillary tube refrigeration system holds 0°F or colder. True sizes the system generously for the cabinet, which helps it recover after lid openings. R290 is a natural hydrocarbon refrigerant with zero ozone depletion potential and a very low global warming potential.

Electronically commutated (ECM) evaporator and condenser fan motors use less power, run cooler and deliver a more consistent airflow, which improves reliability and temperature uniformity. Forced-air cooling with guided airflow frosts dry glasses and plates quickly. The evaporator coil is epoxy coated to resist corrosion. Defrost is automatic. The condensing unit slides out from the front of the cabinet for cleaning and service. The compressor is rated at 1/5 HP.

Why Operators Choose It

• Natural refrigerant: R290 hydrocarbon refrigerant with zero ozone depletion potential and very low global warming potential.
• ECM fan motors: Electronically commutated evaporator and condenser fan motors run cooler and more efficiently and move a steadier volume of air.
• Epoxy-coated evaporator: Coating protects the coil against corrosion.
• Foamed-in-place insulation: High-density polyurethane insulation with zero ODP and zero GWP.
• NSF/ANSI 7: Compliant for the storage and display of packaged or bottled product.

Cabinet Construction

Exterior: stainless steel countertop and lid, black powder coated cold rolled steel front, sides, and back. Interior: heavy duty galvanized steel. The cabinet is foamed in place with high-density polyurethane insulation.

Shelving

Three adjustable PVC-coated wire shelves in two sizes (17-3/16"W x 19-5/16"D and 5-1/2"W x 19-5/16"D).

Ideal For

Bars and restaurants that pour beer into frosted mugs or serve desserts and salads on chilled plates.

Specifications

Installation & Utility Requirements

Requires a dedicated 115/60/1, 15 amp outlet; the unit ships pre-wired with a cord and NEMA 5-15P plug. Follow True's installation manual for clearances, leveling and start-up.

Factory Options (Additional Cost)

• 6" (153 mm) standard legs
• 6" (153 mm) seismic/flanged legs
• 2-1/2" (64 mm) diameter castors
• 3" (77 mm) diameter castors
• Ratchet lock and handle
• Floor racks

Warranty

7-year parts & labor; 7-year compressor coverage from True Manufacturing.

Download the True T-24-GC-HC spec sheet (PDF)

Specifications per True Manufacturing data; subject to change by the manufacturer.
