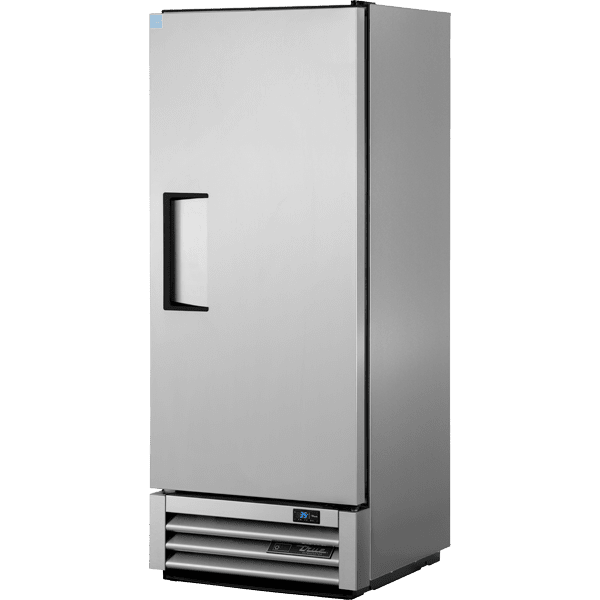

True T-12-HC Reach-In Solid Swing Door Refrigerator, 24-7/8" Wide, 11.3 cu. ft.

The True T-12-HC is a reach-in solid swing door refrigerator from the T-Series. It provides 11.3 cu. ft. of storage behind one solid door, holds 33°F to 38°F and runs on R290 hydrocarbon refrigerant. It plugs into a standard 115/60/1 circuit (2.5 A).

Refrigeration System

A factory-balanced, self-contained capillary tube refrigeration system with a bottom-mounted condensing unit is sized generously for the cabinet, so it pulls down quickly after door openings and holds 33°F to 38°F steadily. R290 is a natural hydrocarbon refrigerant with zero ozone depletion potential and a very low global warming potential, and it moves heat efficiently, which helps keep energy use down.

Electronically commutated (ECM) evaporator and condenser fan motors use less power, run cooler and deliver a more consistent airflow than conventional motors, which improves reliability and temperature uniformity. The evaporator coil is epoxy coated to resist corrosion. The compressor is rated at 1/6 HP.

Why Operators Choose It

• Natural refrigerant: R290 hydrocarbon refrigerant with zero ozone depletion potential and very low global warming potential.
• ECM fan motors: Electronically commutated evaporator and condenser fan motors run cooler and more efficiently than shaded-pole motors and move a steadier volume of air.
• Bottom-mounted condensing unit: Easy to reach for cleaning and service, and it raises the lowest shelf so product is easier to see and reach.
• Self-closing door: Positive-seal self-closing door helps protect holding temperature during busy service.
• Lifetime-guaranteed hardware: True backs the door hinges, handles and locks on this cabinet with a lifetime guarantee.
• Epoxy-coated evaporator: Coating protects the coil against corrosion for a longer service life.
• Foamed-in-place insulation: High-density polyurethane insulation with zero ODP and zero GWP blowing agent.
• Tool-free gaskets: One-piece magnetic door gaskets pull out without tools for cleaning.
• NSF/ANSI 7: Compliant for open food product storage.
• ENERGY STAR®: Qualified for ENERGY STAR, lowering running costs.

Cabinet & Door Construction

Exterior: Stainless steel front. Interior: clear coated aluminum liner. The cabinet walls and solid doors are foamed in place with high-density polyurethane insulation. Doors use a torsion-type closing system.

Shelving & Lighting

3 adjustable heavy-duty PVC-coated wire shelves measuring 20-13/16"L x 17"D. Shelves adjust in 1/2" increments.

Ideal For

Restaurant back-of-house, hotels, schools, hospitals and catering kitchens that need dependable cold storage close to the line.

Specifications

Installation & Utility Requirements

Requires a dedicated 115/60/1, 15 amp outlet; the unit ships pre-wired with a cord and NEMA 5-15P plug. Allow free airflow around the condensing unit and follow True’s installation manual for clearances, leveling and start-up.

Factory Options (Additional Cost)

• 2–1/2" (64 mm) diameter castors
• Additional shelves

Warranty

7-year parts & labor; 7-year compressor coverage from True Manufacturing.

Download the True T-12-HC spec sheet (PDF)

Specifications per True Manufacturing data; subject to change by the manufacturer.
