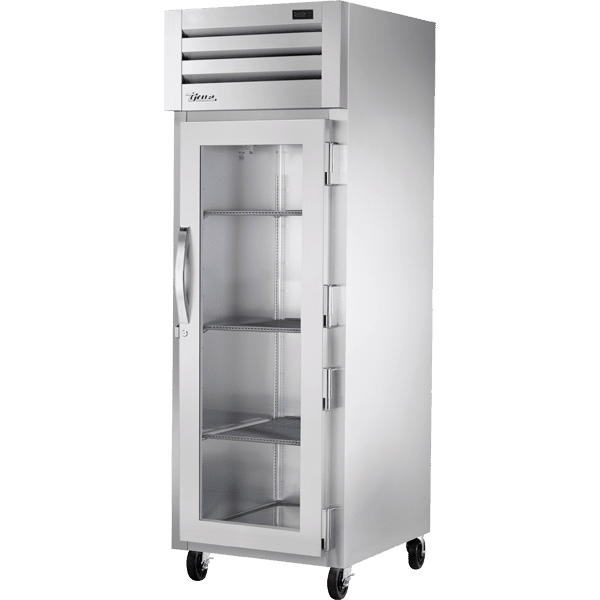

True STR1R-1G-HC Reach-In Glass Swing Door Refrigerator, 27-1/2" Wide, 23.9 cu. ft.

The True STR1R-1G-HC is a reach-in glass swing door refrigerator from the Spec Series®. It provides 23.9 cu. ft. of storage behind one glass door, holds 33°F to 38°F and runs on R290 hydrocarbon refrigerant. It plugs into a standard 115/60/1 circuit (3.8 A).

Refrigeration System

A factory-balanced, self-contained capillary tube refrigeration system mounted on top of the cabinet is sized generously for the cabinet, so it pulls down quickly after door openings and holds 33°F to 38°F steadily. R290 is a natural hydrocarbon refrigerant with zero ozone depletion potential and a very low global warming potential, and it moves heat efficiently, which helps keep energy use down.

Electronically commutated (ECM) evaporator and condenser fan motors use less power, run cooler and deliver a more consistent airflow than conventional motors, which improves reliability and temperature uniformity. The evaporator coil is epoxy coated to resist corrosion. The compressor is rated at 1/4 HP.

Why Operators Choose It

• Natural refrigerant: R290 hydrocarbon refrigerant with zero ozone depletion potential and very low global warming potential.
• ECM fan motors: Electronically commutated evaporator and condenser fan motors run cooler and more efficiently than shaded-pole motors and move a steadier volume of air.
• Top-mounted system: The refrigeration system sits on top with the evaporator out of the food zone, which keeps usable interior space free.
• Low-E thermal glass: Double-pane, low-emissivity glass limits condensation and heat gain while keeping product on display.
• Self-closing doors with stay-open: Doors close themselves for a positive seal yet hold open past 120° for loading.
• Lifetime-guaranteed hardware: True backs the door hinges, handles and locks on this cabinet with a lifetime guarantee.
• Exterior digital display: Read cabinet temperature without opening the door; selectable °F or °C.
• LED interior lighting: Even, safety-shielded LED lighting that adds little heat to the cabinet.
• Epoxy-coated evaporator: Coating protects the coil against corrosion for a longer service life.
• Foamed-in-place insulation: High-density polyurethane insulation with zero ODP and zero GWP blowing agent.
• Tool-free gaskets: One-piece magnetic door gaskets pull out without tools for cleaning.
• NSF/ANSI 7: Compliant for open food product storage.
• Curb-mount ready: Can be set on a curb for a sealed, easy-clean installation.
• ENERGY STAR®: Qualified for ENERGY STAR, lowering running costs.

Cabinet & Door Construction

The cabinet walls are foamed in place with high-density polyurethane insulation. Doors use double-pane Low-E thermal glass, cam-lift hinges, a bolt-style lock and a 120° stay-open feature.

Shelving & Lighting

Ships with one factory-installed interior kit (shelving or tray slides) chosen from four kit options; pilasters and tray slides are installed at no charge. Interior LED lighting is safety shielded.

Ideal For

Convenience stores, cafes, delis, grocery and front-of-house beverage or grab-and-go displays where product visibility drives sales.

Specifications

Installation & Utility Requirements

Requires a dedicated 115/60/1, 15 amp outlet; the unit ships pre-wired with a cord and NEMA 5-15P plug. Allow free airflow around the condensing unit and follow True’s installation manual for clearances, leveling and start-up. Curb mounting is supported.

Factory Options (Additional Cost)

• 6" (153 mm) standard legs
• 6" (153 mm) seismic/flanged legs
• 6" (153 mm) stainless steel legs
• Hasp lock
• Field reversible hinge
• Additional shelves
• Stainless back
• Security package.

Warranty

7-year parts & labor; 7-year compressor coverage from True Manufacturing.

Download the True STR1R-1G-HC spec sheet (PDF)

Specifications per True Manufacturing data; subject to change by the manufacturer.
