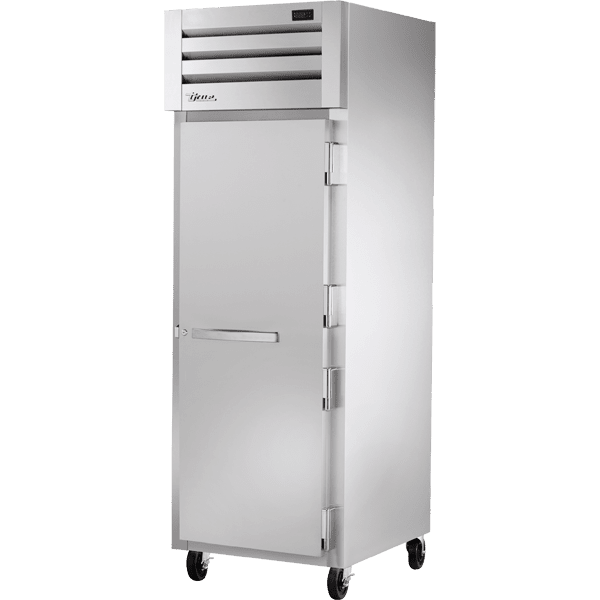

True STG1F-1S-HC Reach-In Solid Swing Door Freezer, 27-1/2" Wide, 23.2 cu. ft.
The True STG1F-1S-HC is a reach-in solid swing door freezer from the Spec Series®. It provides 23.2 cu. ft. of storage behind one solid door and runs on R290 hydrocarbon refrigerant. It plugs into a standard 115/60/1 circuit (6.0 A).
Refrigeration System
R290 is a natural hydrocarbon refrigerant with zero ozone depletion potential and a very low global warming potential, and it moves heat efficiently, which helps keep energy use down.
The compressor is rated at 1/2 HP.
Why Operators Choose It
- Natural refrigerant: R290 hydrocarbon refrigerant with zero ozone depletion potential and very low global warming potential.
Ideal For
Restaurants, convenience stores, grocery, bakeries and institutional kitchens that need dependable frozen storage.
Available Configurations
Choose the door hinge (Right Hinge, Left Hinge) above; each configuration ships under its own True model number at the same specification.
Specifications
| Model | STG1F-1S-HC |
| Series | Spec Series® |
| Type | Reach-In Solid Swing Door Freezer |
| Doors | 1 solid |
| Shelves | 3 |
| Capacity | 23.2 cu. ft. |
| Refrigerant | R290 |
| Compressor | 1/2 HP |
| Dimensions (W x D x H) | 27-1/2" x 33-3/4" x 77-3/4" |
| Electrical | 115/60/1, 6.0 A |
| Plug | NEMA 5-15P |
| Cord length | 9 ft |
| Weight | 385 lb |
| Certifications | cULus, UL EPH Classified |
| Warranty | 7-year Parts & Labor; 7-year Compressor |
Installation & Utility Requirements
Requires a dedicated 115/60/1 outlet; the unit ships pre-wired with a cord and NEMA 5-15P plug. Allow free airflow around the condensing unit and follow True’s installation manual for clearances, leveling and start-up.
Warranty
7-year parts & labor; 7-year compressor coverage from True Manufacturing.
Download the True STG1F-1S-HC spec sheet (PDF)
Specifications per True Manufacturing data; subject to change by the manufacturer.
