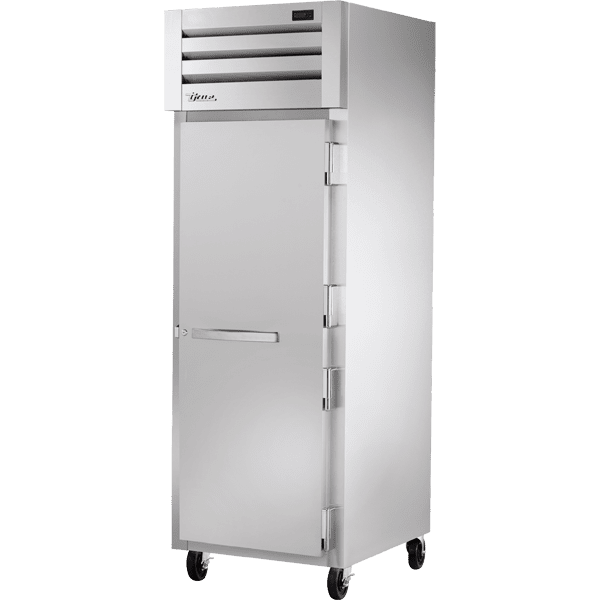

True STA1F-1S-HC Reach-In Solid Swing Door Freezer, 27-1/2" Wide, 22.09 cu. ft.
The True STA1F-1S-HC is a reach-in solid swing door freezer from the Spec Series®. It provides 22.09 cu. ft. of storage behind one solid door and runs on R290 hydrocarbon refrigerant. It plugs into a standard 115/60/1 circuit (6.0 A).
Refrigeration System
R290 is a natural hydrocarbon refrigerant with zero ozone depletion potential and a very low global warming potential, and it moves heat efficiently, which helps keep energy use down.
The compressor is rated at 1/2 HP.
Why Operators Choose It
- Natural refrigerant: R290 hydrocarbon refrigerant with zero ozone depletion potential and very low global warming potential.
Ideal For
Restaurants, convenience stores, grocery, bakeries and institutional kitchens that need dependable frozen storage.
Specifications
| Model | STA1F-1S-HC |
| Series | Spec Series® |
| Type | Reach-In Solid Swing Door Freezer |
| Doors | 1 solid |
| Shelves | 3 |
| Capacity | 22.09 cu. ft. |
| Refrigerant | R290 |
| Compressor | 1/2 HP |
| Dimensions (W x D x H) | 27-1/2" x 33-3/4" x 77-3/4" |
| Electrical | 115/60/1, 6.0 A |
| Plug | NEMA 5-15P |
| Cord length | 10 ft |
| Weight | 410 lb |
| Certifications | cULus, UL EPH Classified |
| Warranty | 7-year Parts & Labor; 7-year Compressor |
Installation & Utility Requirements
Requires a dedicated 115/60/1 outlet; the unit ships pre-wired with a cord and NEMA 5-15P plug. Allow free airflow around the condensing unit and follow True’s installation manual for clearances, leveling and start-up.
Warranty
7-year parts & labor; 7-year compressor coverage from True Manufacturing.
Download the True STA1F-1S-HC spec sheet (PDF)
Specifications per True Manufacturing data; subject to change by the manufacturer.
