True GDM-14RF-HC-LD Swing Door Radius Front Refrigerator, 30-3/8" Wide, 16.7 cu. ft.

The True GDM-14RF-HC-LD is a swing door radius front refrigerator from the GDM Series. It provides 16.7 cu. ft. of storage behind two glass doors, holds 33°F to 38°F and runs on R290 hydrocarbon refrigerant. It plugs into a standard 115/60/1 circuit (2.0 A).

Refrigeration System

A factory-balanced, self-contained capillary tube refrigeration system with a bottom-mounted condensing unit is sized generously for the cabinet, so it pulls down quickly after door openings and holds 33°F to 38°F steadily. R290 is a natural hydrocarbon refrigerant with zero ozone depletion potential and a very low global warming potential, and it moves heat efficiently, which helps keep energy use down.

The evaporator coil is epoxy coated to resist corrosion. The compressor is rated at 1/3 HP.

Why Operators Choose It

• Natural refrigerant: R290 hydrocarbon refrigerant with zero ozone depletion potential and very low global warming potential.
• Bottom-mounted condensing unit: Easy to reach for cleaning and service, and it raises the lowest shelf so product is easier to see and reach.
• Low-E thermal glass: Double-pane, low-emissivity glass limits condensation and heat gain while keeping product on display.
• Self-closing door: Positive-seal self-closing door helps protect holding temperature during busy service.
• LED interior lighting: Even, safety-shielded LED lighting that adds little heat to the cabinet.
• Illuminated sign panel: Lit header panel for branding or merchandising.
• Epoxy-coated evaporator: Coating protects the coil against corrosion for a longer service life.
• Foamed-in-place insulation: High-density polyurethane insulation with zero ODP and zero GWP blowing agent.
• Tool-free gaskets: One-piece magnetic door gaskets pull out without tools for cleaning.
• NSF/ANSI 7: Compliant for open food product storage.

Cabinet & Door Construction

Exterior: black laminated vinyl. Interior: white aluminum liner with stainless steel floor. The cabinet walls are foamed in place with high-density polyurethane insulation. Doors use double-pane Low-E thermal glass and a torsion-type closing system.

Shelving & Lighting

3 adjustable heavy-duty PVC-coated wire shelves measuring 25-11/16"L x 20-1/2"D. Shelves adjust in 1/2" increments. Interior LED lighting is safety shielded.

Ideal For

Convenience stores, cafes, delis, grocery and front-of-house beverage or grab-and-go displays where product visibility drives sales.

Available Configurations

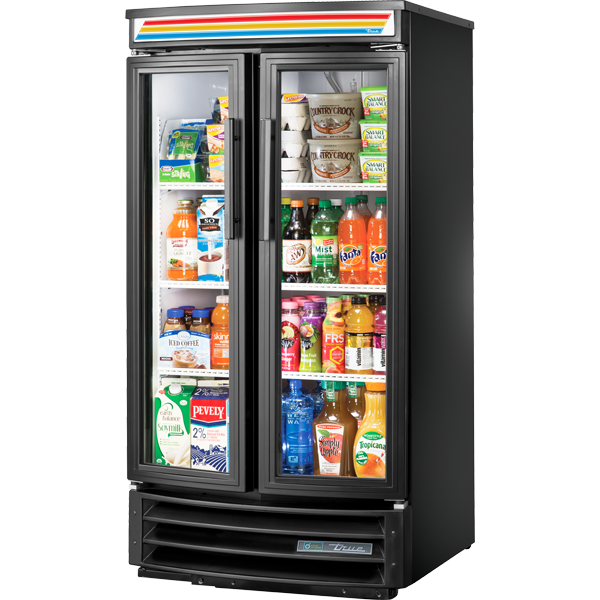

Choose the color (Black, White) above; each configuration ships under its own True model number at the same specification. Product photo shows the black finish.

Specifications

Installation & Utility Requirements

Requires a dedicated 115/60/1, 15 amp outlet; the unit ships pre-wired with a cord and NEMA 5-15P plug. Allow free airflow around the condensing unit and follow True’s installation manual for clearances, leveling and start-up.

Factory Options (Additional Cost)

• white exterior
• Black aluminum interior liner with black shelving
• Stainless steel interior liner with gray shelving
• Red wine thermostat
• White wine thermostat
• Chocolate thermostat
• Padlock
• Additional shelves

Warranty

7-year parts & labor; 7-year compressor coverage from True Manufacturing.

Download the True GDM-14RF-HC-LD spec sheet (PDF)

Specifications per True Manufacturing data; subject to change by the manufacturer.
