True GDIM-26NT-HC~TSL01 Glass Door Indoor Ice Merchandiser, 30" Wide, 23.5 cu. ft.

The True GDIM-26NT-HC~TSL01 is a glass door indoor ice merchandiser from the GDIM Series. It provides 23.5 cu. ft. of storage behind one solid door, holds 20°F and runs on R290 hydrocarbon refrigerant. It plugs into a standard 115/60/1 circuit (6.0 A).

Refrigeration System

A factory-balanced, self-contained capillary tube refrigeration system with a bottom-mounted condensing unit is sized generously for the cabinet, so it pulls down quickly after door openings and holds 20°F steadily. R290 is a natural hydrocarbon refrigerant with zero ozone depletion potential and a very low global warming potential, and it moves heat efficiently, which helps keep energy use down.

Electronically commutated (ECM) evaporator and condenser fan motors use less power, run cooler and deliver a more consistent airflow than conventional motors, which improves reliability and temperature uniformity. The evaporator coil is epoxy coated to resist corrosion. Defrost is automatic, starting on a timer and ending on temperature to keep defrost periods as short as possible. The compressor is rated at 1/3 HP.

Why Operators Choose It

• Natural refrigerant: R290 hydrocarbon refrigerant with zero ozone depletion potential and very low global warming potential.
• ECM fan motors: Electronically commutated evaporator and condenser fan motors run cooler and more efficiently than shaded-pole motors and move a steadier volume of air.
• Bottom-mounted condensing unit: Easy to reach for cleaning and service, and it raises the lowest shelf so product is easier to see and reach.
• Triple-pane glass: Triple-pane insulated glass for low-temperature display.
• Self-closing door: Positive-seal self-closing door helps protect holding temperature during busy service.
• LED interior lighting: Even, safety-shielded LED lighting that adds little heat to the cabinet.
• Illuminated sign panel: Lit header panel for branding or merchandising.
• Epoxy-coated evaporator: Coating protects the coil against corrosion for a longer service life.
• Foamed-in-place insulation: High-density polyurethane insulation with zero ODP and zero GWP blowing agent.
• Tool-free gaskets: One-piece magnetic door gaskets pull out without tools for cleaning.
• NSF/ANSI 7: Compliant for open food product storage.
• Automatic defrost: Time-initiated, temperature-terminated defrost keeps cycles short.

Cabinet & Door Construction

Exterior: black powder coated cold rolled steel. Interior: white aluminum interior liner with stainless steel floor. The cabinet walls are foamed in place with high-density polyurethane insulation. Doors use a torsion-type closing system.

Shelving & Lighting

Interior LED lighting is safety shielded.

Ideal For

Restaurants, convenience stores, grocery, bakeries and institutional kitchens that need dependable frozen storage.

Available Configurations

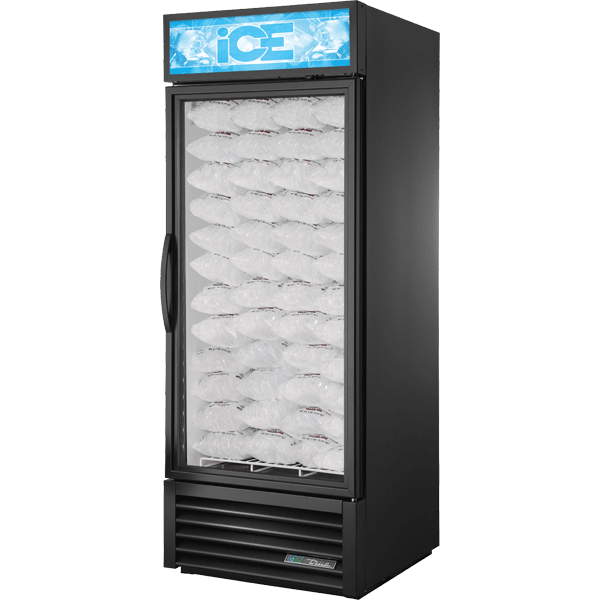

Choose the color (Black, White) above; each configuration ships under its own True model number at the same specification. Product photo shows the black finish.

Specifications

Installation & Utility Requirements

Requires a dedicated 115/60/1, 15 amp outlet; the unit ships pre-wired with a cord and NEMA 5-15P plug. Allow free airflow around the condensing unit and follow True’s installation manual for clearances, leveling and start-up.

Factory Options (Additional Cost)

• Black exterior
• Stainless steel exterior

Warranty

7-year parts & labor; 7-year compressor coverage from True Manufacturing.

Download the True GDIM-26NT-HC~TSL01 spec sheet (PDF)

Specifications per True Manufacturing data; subject to change by the manufacturer.
