True FLM-81F~TSL01 Swing Door Freezer, 80-3/4" Wide, 72.13 cu. ft.

The True FLM-81F~TSL01 is a swing door freezer from the FLM Series. It provides 72.13 cu. ft. of storage behind three glass doors, holds -10°F and runs on R290 hydrocarbon refrigerant. It plugs into a standard 115/60/1 circuit (14.2 A).

Refrigeration System

A factory-balanced, self-contained capillary tube refrigeration system with a bottom-mounted condensing unit is sized generously for the cabinet, so it pulls down quickly after door openings and holds -10°F steadily. R290 is a natural hydrocarbon refrigerant with zero ozone depletion potential and a very low global warming potential, and it moves heat efficiently, which helps keep energy use down.

Electronically commutated (ECM) evaporator and condenser fan motors use less power, run cooler and deliver a more consistent airflow than conventional motors, which improves reliability and temperature uniformity. The evaporator coil is epoxy coated to resist corrosion. The compressor is rated at 3/4 HP.

Why Operators Choose It

• Natural refrigerant: R290 hydrocarbon refrigerant with zero ozone depletion potential and very low global warming potential.
• ECM fan motors: Electronically commutated evaporator and condenser fan motors run cooler and more efficiently than shaded-pole motors and move a steadier volume of air.
• Bottom-mounted condensing unit: Easy to reach for cleaning and service, and it raises the lowest shelf so product is easier to see and reach.
• Self-closing door: Positive-seal self-closing door helps protect holding temperature during busy service.
• LED interior lighting: Even, safety-shielded LED lighting that adds little heat to the cabinet.
• Epoxy-coated evaporator: Coating protects the coil against corrosion for a longer service life.
• Foamed-in-place insulation: High-density polyurethane insulation with zero ODP and zero GWP blowing agent.
• Tool-free gaskets: One-piece magnetic door gaskets pull out without tools for cleaning.
• NSF/ANSI 7: Compliant for open food product storage.

Cabinet & Door Construction

Exterior: black powder coated cold rolled steel ends with black aluminum cabinet top and back. Interior: white aluminum liner with stainless steel floor. The cabinet walls are foamed in place with high-density polyurethane insulation. Doors use a torsion-type closing system.

Shelving & Lighting

12 adjustable heavy-duty wire shelves. Interior LED lighting is safety shielded.

Ideal For

Restaurants, convenience stores, grocery, bakeries and institutional kitchens that need dependable frozen storage and display.

Available Configurations

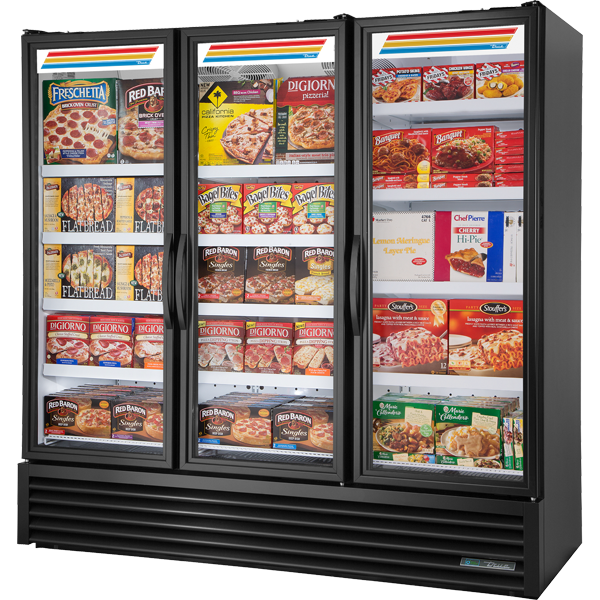

Choose the color (Black, White) and door hinge (All Right Hinge, All Left Hinge) above; each configuration ships under its own True model number at the same specification. Product photo shows the black finish.

Specifications

Installation & Utility Requirements

Requires a dedicated 115/60/1, 20 amp outlet; the unit ships pre-wired with a cord and NEMA 5-20P plug. Allow free airflow around the condensing unit and follow True’s installation manual for clearances, leveling and start-up.

Factory Options (Additional Cost)

• White exterior
• Gray exterior
• Stainless steel exterior
• Black aluminum interior liner with black shelving
• Clear aluminum interior liner
• Stainless steel interior liner
• All left hinge doors
• All right hinge doors
• Wired cantilever shelves

Warranty

7-year parts & labor; 7-year compressor coverage from True Manufacturing.

Download the True FLM-81F~TSL01 spec sheet (PDF)

Specifications per True Manufacturing data; subject to change by the manufacturer.
