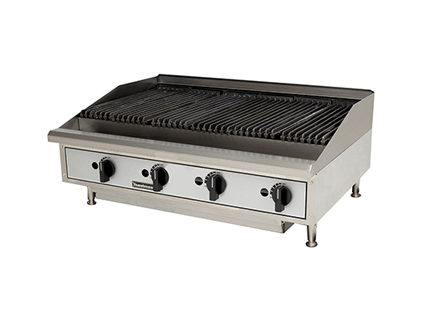

Toastmaster TMRC48 48" Radiant Countertop Charbroiler, 4 Burners, 120,000 BTU
When the broiler is where most of your plates start, the Toastmaster TMRC48 gives you four feet of radiant grilling on a countertop chassis. Steakhouses, burger concepts, banquet kitchens and busy grills can lay down a full load of patties, steaks or skewers and still keep room for a gentler zone at the end.
Four 30,000 BTU/hr U-style steel burners, one every 12 inches, combine for 120,000 BTU/hr of total input, with an individual control for each burner. It measures 48" wide, 26" deep and 15-1/2" high and weighs about 299 lb installed.
What you will notice in day-to-day use
- Capacity for the rush. Four feet of cooking surface and 120,000 BTU/hr let you keep up when tickets stack up.
- Four zones, four temperatures. Each burner has its own control, so you can sear, cook through and hold on the same broiler, or idle sections in slow periods.
- Consistent marks. Contoured heavy gauge stainless steel radiants distribute heat evenly so product cooks the same at both ends.
- Versatile cast iron grates. Reversible, with a thin side for searing and a thick side for delicate items, and adjustable flat or slanted section by section.
- Cleanup and comfort. A full-width stainless water pan and 2-3/4" tapered splash guard handle the mess, while a cool-to-the-touch bull nose protects the knobs.
Choosing your setup
Gas type: it ships ready for natural gas with a convertible regulator, and the kit for LP conversion is included. Choose the gas your kitchen uses above. Need another size or flavor? the TMRC24 and TMRC36 are the smaller radiant models, and the TMLC48 is the same size with lava rock.
Specifications
| Brand | Toastmaster |
| Model | TMRC48 |
| Type | Countertop gas charbroiler, radiant |
| Burners | 4 x 30,000 BTU/hr U-style steel burners, one every 12", individually controlled |
| Total input | 120,000 BTU/hr |
| Heat source | Heavy gauge stainless steel radiants |
| Controls | 4 individual burner valves, standing pilot |
| Cooking grates | Heavy-duty cast iron, reversible (thin side for searing, thick side for delicate items), flat or slanted |
| Water pan | Full-width, large capacity stainless steel |
| Splash guard | 2-3/4" high tapered stainless steel |
| Gas type | Ships for natural gas; convertible regulator and LP conversion kit included |
| Gas connection | 3/4" NPT male |
| Construction | Stainless steel top, water pan, front panel and bull nose; reinforced aluminized steel sides |
| Legs | 4" die-cast nickel-plated, 1-3/8" adjustment |
| Dimensions (W x D x H) | 48" x 26" x 15-1/2" |
| Net weight | 299 lb |
| Shipping weight | 350 lb |
| Certifications | cULus, UL EPH Classified (Sanitation), Made in USA |
Before it arrives
- Gas: 3/4" NPT male connection; have a qualified installer hook it up and convert it to LP with the included kit if your kitchen runs propane.
- Ventilation: install under a commercial hood following your local code.
- Counter or stand: set it on a non-combustible counter using the 4" legs, or on a stand at least 27" tall over a combustible floor. Keep the back and both sides at least 3" from combustible surfaces.
- Delivery: ships at about 350 lb in a carton roughly 52" x 32" x 20"; check door widths and plan help for unloading.
Warranty
1 year parts and labor from Toastmaster.
Specifications per Toastmaster data; subject to change by the manufacturer.
