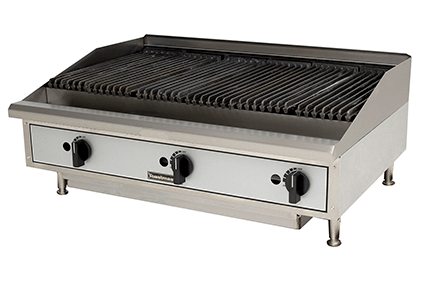

Toastmaster TMRC36 36" Radiant Countertop Charbroiler, 3 Burners, 90,000 BTU
The Toastmaster TMRC36 is the middle size that a lot of kitchens end up needing: wide enough for a real lunch rush, compact enough to share the line with a griddle or fryer. Radiant heat and heavy cast iron grates give steaks, burgers, chicken breasts and vegetables clean, defined grill marks, making it a solid workhorse for diners, pubs, sandwich shops and casual grills.
Three individually controlled 30,000 BTU/hr U-style steel burners, one every 12 inches, add up to 90,000 BTU/hr. That gives you three zones to work with, for example a hot sear zone, a cooking zone and a lower holding zone. The broiler is 36" wide, 26" deep and 15-1/2" high, and weighs about 192 lb.
What you will notice in day-to-day use
- Three independent zones. Separate controls per 12" section let you match heat to each item rather than cooking everything at one temperature.
- Even radiant heat. Contoured heavy gauge stainless steel radiants spread the burner heat for consistent marks from front to back.
- Grates for every menu item. Heavy-duty cast iron grates flip from a thin searing side to a thick, gentler side, and can be set flat or slanted to let grease run off.
- Less mess behind the line. A large stainless steel water pan runs the full width, and a 2-3/4" tapered stainless splash guard keeps splatter in check.
- Built to take a busy service. Stainless top and front, reinforced aluminized steel sides and a protective bull nose front, with a standing pilot always on.
Choosing your setup
Gas type: it ships ready for natural gas with a convertible regulator, and the kit for LP conversion is included. Choose the gas your kitchen uses above. Need another size or flavor? the same radiant broiler comes in 24" (TMRC24) and 48" (TMRC48) widths, and the TMLC36 is the lava rock version for extra smoky flavor.
Specifications
| Brand | Toastmaster |
| Model | TMRC36 |
| Type | Countertop gas charbroiler, radiant |
| Burners | 3 x 30,000 BTU/hr U-style steel burners, one every 12", individually controlled |
| Total input | 90,000 BTU/hr |
| Heat source | Heavy gauge stainless steel radiants |
| Controls | 3 individual burner valves, standing pilot |
| Cooking grates | Heavy-duty cast iron, reversible (thin side for searing, thick side for delicate items), flat or slanted |
| Water pan | Full-width, large capacity stainless steel |
| Splash guard | 2-3/4" high tapered stainless steel |
| Gas type | Ships for natural gas; convertible regulator and LP conversion kit included |
| Gas connection | 3/4" NPT male |
| Construction | Stainless steel top, water pan, front panel and bull nose; reinforced aluminized steel sides |
| Legs | 4" die-cast nickel-plated, 1-3/8" adjustment |
| Dimensions (W x D x H) | 36" x 26" x 15-1/2" |
| Net weight | 192 lb |
| Shipping weight | 230 lb |
| Certifications | cULus, UL EPH Classified (Sanitation), Made in USA |
Before it arrives
- Gas: 3/4" NPT male connection; have a qualified installer hook it up and convert it to LP with the included kit if your kitchen runs propane.
- Ventilation: install under a commercial hood following your local code.
- Counter or stand: set it on a non-combustible counter using the 4" legs, or on a stand at least 27" tall over a combustible floor. Keep the back and both sides at least 3" from combustible surfaces.
- Delivery: ships at about 230 lb in a carton roughly 40" x 32" x 21"; check door widths and plan help for unloading.
Warranty
1 year parts and labor from Toastmaster.
Specifications per Toastmaster data; subject to change by the manufacturer.
