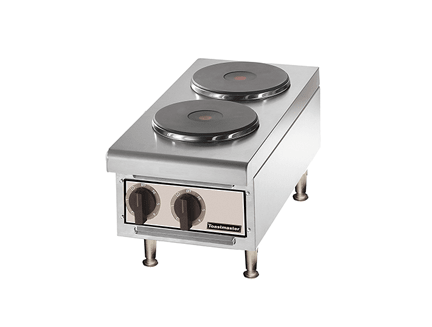

Toastmaster TMHPF 12" Countertop Electric Hot Plate, 2 Solid French Tops, 208/240V
No gas line? No problem. The Toastmaster TMHPF is a compact electric hot plate with two solid French tops that needs only about 12 inches of counter. It is a smart fit for cafes, bars, coffee shops, kiosks and kitchens in buildings without gas service, or anywhere you want a couple of extra burners for sauces and soups.
Two sealed cast iron French tops, each 8-1/2" in diameter, run on 208V or 240V single phase. At 208V the unit draws 18.8 A and 3,900 W; at 240V it draws 21.7 A and 5,200 W. Each top has its own infinite control and indicator light.
What you will notice in day-to-day use
- Even heat on a solid surface. Sealed cast iron French tops heat evenly and give pots and pans a flat, stable base.
- Two independent burners. Separate infinite controls let you simmer on one side and bring something to a boil on the other.
- A cooler workstation. The enclosed bottom and solid top keep heat where it belongs, so less of it spills into the kitchen.
- Nothing to fall through. Sealed tops mean spills stay on the surface, where they are easy to wipe up.
- Fits almost anywhere. The compact 12" wide design slots in next to other countertop equipment.
Choosing your setup
Electrical: the hot plate is wired at a rear junction box and runs on either 208V or 240V single phase; output and amp draw depend on your supply, as shown below.
| Electrical service | Amps | Watts |
|---|---|---|
| 208V, single phase | 18.8 A | 3,900 W |
| 240V, single phase | 21.7 A | 5,200 W |
Specifications
| Brand | Toastmaster |
| Model | TMHPF |
| Type | Countertop electric hot plate, 2 solid French tops |
| Cooking surface | 2 sealed cast iron French tops, 8-1/2" diameter |
| Controls | Infinite control per burner, 2 indicator lights |
| Power | 3,900 W at 208V / 5,200 W at 240V |
| Electrical | 208V or 240V, single phase; 18.8 A (208V) / 21.7 A (240V) |
| Electrical connection | Junction box at rear, dedicated circuit required |
| Construction | Aluminized steel body, stainless steel top and front; enclosed bottom |
| Legs | 4" with 1-3/8" adjustment |
| Dimensions (W x D x H) | 12" x 28-3/16" x 11-5/8" |
| Net weight | 35 lb |
| Shipping weight | 45 lb |
| Certifications | CSA (US), NSF, Made in USA |
Before it arrives
- Power: have a licensed electrician run a dedicated 208V or 240V single-phase circuit to the rear junction box; there is no plug.
- Clearance: allow at least 1" of clearance on each side and at the back.
- Counter: it weighs only 35 lb, so any sturdy, level counter will do.
Warranty
1 year parts and labor from Toastmaster.
Specifications per Toastmaster data; subject to change by the manufacturer.
