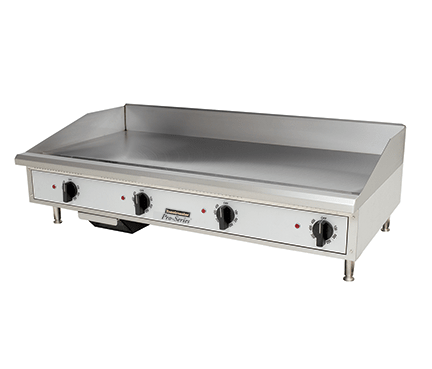

Toastmaster TMGT48 48" Countertop Griddle, Thermostatic Controls, 3/4" Plate, 80,000 BTU
When the griddle is where most of your menu happens, width matters. The Toastmaster TMGT48 gives you four feet of thermostatically controlled flat top, enough to run a full breakfast board or a wall of smash burgers at once. It is a strong fit for diners, high-volume breakfast spots, cafeterias and burger joints that want serious capacity on a countertop footprint.
Four 20,000 BTU aluminized steel "U" shaped burners, one every 12 inches, deliver a total of 80,000 BTU/hr to a 3/4" thick polished steel plate. Four throttling thermostats, each adjustable from 150°F – 450°F, let you set every section to its own job.
What you will notice in day-to-day use
- Four zones, one surface. Run a hot sear zone for proteins, a medium zone for hash browns, a gentler zone for eggs and a holding zone, all on the same plate.
- Consistent results through the rush. Throttling thermostats hold each section at its set point, so color and doneness stay consistent from the first ticket to the last.
- Quick recovery. The 3/4" thick polished steel plate keeps a big reserve of heat and bounces back fast after you load it edge to edge.
- Grease under control. A spatula-wide 3-1/4" front trough and chute feed a 4-1/2 qt. stainless steel grease drawer, and the 4-3/8" tapered splash guard wraps around three sides.
- Made for daily abuse. Stainless steel front panel and bull nose shield the knobs, and a standing pilot keeps the griddle ready to fire.
Choosing your setup
Gas type: the griddle ships for natural gas with a universal convertible pressure regulator, and the orifices for LP conversion are included. Choose natural gas or liquid propane above. Prefer a smaller footprint or simpler controls? The same griddle comes in 24" (TMGT24) and 36" (TMGT36) widths, plus manual-control versions (TMGM series).
Specifications
| Brand | Toastmaster |
| Model | TMGT48 |
| Type | Countertop gas griddle, thermostatic controls |
| Burners | 4 x 20,000 BTU/hr aluminized steel "U" burners, one every 12" |
| Total input | 80,000 BTU/hr |
| Controls | 4 throttling thermostats, 150°F – 450°F, standing pilot |
| Griddle plate | 3/4" thick polished steel |
| Plate depth | 21-1/2" |
| Grease management | 3-1/4" front trough and chute, 4-1/2 qt. stainless grease drawer |
| Splash guard | 4-3/8" high tapered, wrap-around stainless steel |
| Gas type | Ships for natural gas; LP orifices and convertible regulator included |
| Gas connection | 3/4" NPT male, rear |
| Construction | Stainless steel front, bull nose and grease drawer; aluminized steel sides |
| Legs | 4" die-cast nickel-plated, 1-3/8" adjustment |
| Dimensions (W x D x H) | 48" x 27-13/16" x 15-1/2" |
| Net weight | 295 lb |
| Shipping weight | 315 lb |
| Certifications | cULus, UL EPH Classified (Sanitation), Made in USA |
Before it arrives
- Gas: 3/4" NPT rear connection; have a qualified installer connect it and convert it to LP if needed.
- Ventilation: install under a commercial hood following your local code.
- Counter or stand: use a sturdy non-combustible counter with the 4" legs, or a stand at least 27" tall over a combustible floor, and keep 6" from combustible surfaces at the back and sides.
- Delivery: it ships at about 315 lb, so plan for a liftgate or dock and a couple of extra hands.
Warranty
1 year parts and labor from Toastmaster.
Specifications per Toastmaster data; subject to change by the manufacturer.
