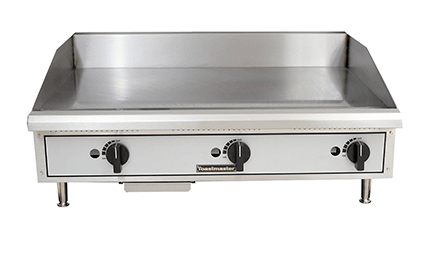

Toastmaster TMGM36 36" Countertop Griddle, Manual Controls, 3/4" Steel Plate, 60,000 BTU
For a lot of diners and burger joints, a 36-inch manual griddle is the workhorse of the line, and the Toastmaster TMGM36 keeps things refreshingly simple. Three burners under a thick steel plate, a quarter-turn valve for each, and a cook who knows the surface can run eggs, hash browns and smash burgers side by side all morning.
Three 20,000 BTU aluminized steel "U" shaped burners, one every 12 inches, deliver a total of 60,000 BTU/hr into an ultra smooth 3/4" thick polished steel plate with a 21-1/2" deep cooking surface. Each burner has its own 1/4-turn manual control valve, and a standing pilot keeps it ready to light.
What you will notice in day-to-day use
- Hands-on control. Quarter-turn manual valves respond immediately, which experienced griddle cooks often prefer for adjusting heat on the fly.
- Heat zones you can set. With a burner every 12", the 36" plate can run several zones at different heats for proteins, eggs and holding.
- A thick plate that recovers. The 3/4" polished steel plate stores plenty of heat, so it bounces back after you load cold product.
- Cleanup that keeps pace. A spatula-wide 3-1/4" front grease trough and chute drain into a 4-1/2 qt. stainless steel grease drawer, and a 4-3/8" tapered splash guard wraps around three sides.
- Protected controls. A stainless steel front panel and bull nose shield the valve knobs from bumps and spills.
Choosing your setup
Gas type: the griddle ships set up for natural gas with a universal convertible pressure regulator, and orifices for LP are included. Choose natural gas or liquid propane above to match your kitchen. Want the plate to hold a set temperature for you? The thermostatic TMGT36 shares this body, and the TMGM series also comes in 24" and 48" widths.
Specifications
| Brand | Toastmaster |
| Model | TMGM36 |
| Type | Countertop gas griddle, manual controls |
| Burners | 3 x 20,000 BTU/hr aluminized steel "U" burners, one every 12" |
| Total input | 60,000 BTU/hr |
| Controls | 3 1/4-turn manual control valves, standing pilot |
| Griddle plate | 3/4" thick polished steel |
| Plate depth | 21-1/2" |
| Grease management | 3-1/4" front trough and chute, 4-1/2 qt. stainless grease drawer |
| Splash guard | 4-3/8" high tapered, wrap-around stainless steel |
| Gas type | Ships for natural gas; LP orifices and convertible regulator included |
| Gas connection | 3/4" NPT male, rear |
| Construction | Stainless steel front, bull nose and grease drawer; aluminized steel sides |
| Legs | 4" die-cast nickel-plated, 1-3/8" adjustment |
| Dimensions (W x D x H) | 36" x 27-13/16" x 15-1/2" |
| Net weight | 221 lb |
| Shipping weight | 236 lb |
| Certifications | cULus, UL EPH Classified (Sanitation), Made in USA |
Before it arrives
- Gas: 3/4" NPT rear connection; have a qualified installer hook it up and convert it to LP if needed.
- Ventilation: install under a commercial hood following your local code.
- Counter or stand: set it on a non-combustible counter using the 4" legs, or on a stand at least 27" tall over a combustible floor. Keep 6" from combustible surfaces at the back and sides.
- Delivery: it ships at about 236 lb in a carton roughly 36" x 28" x 16".
Warranty
1 year parts and labor from Toastmaster.
Specifications per Toastmaster data; subject to change by the manufacturer.
