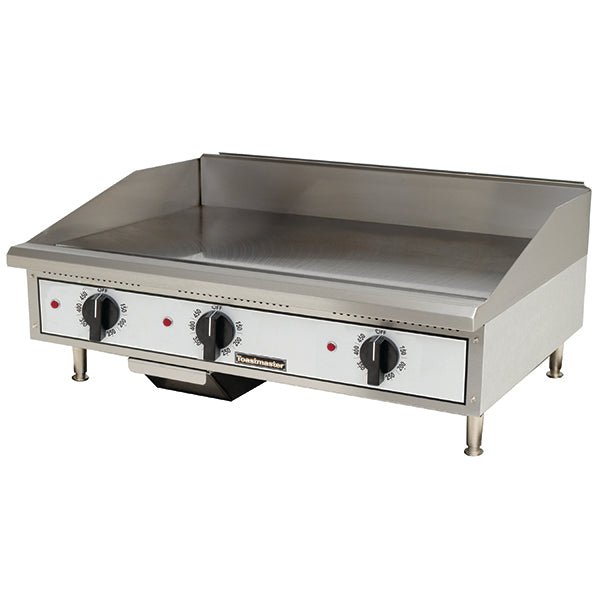

Toastmaster TMGE36 36" Electric Countertop Griddle, 3/4" Steel Plate, 3 Snap-Action Zones, 12 kW
Thirty-six inches is the width many kitchens settle on for an all-day flat top, and the Toastmaster TMGE36 delivers it in an electric countertop package. With three independently controlled zones on a 3/4" polished steel plate, it handles the breakfast rush, lunch burgers and grilled sandwiches in a diner, deli, school or hotel kitchen where electric is the easier utility.
Each 12-inch section has its own heating element and its own snap-action thermostat, for three independent zones adjustable from 150°F to 450°F. Total power is 12 kW at 240V (9 kW at 208V), or 3,000 to 4,000 watts per section, and the 0.75-inch thick polished steel plate spreads that heat evenly across the surface.
What you will notice in day-to-day use
- Zones that work independently. With a thermostat for every 12" section, you can keep a hot sear zone, a medium zone and a gentle zone going at once, or switch off what you are not using.
- Simple, dependable controls. Snap-action thermostats with a positive "OFF" position are easy for any cook to read and set.
- A plate built for even cooking. The 3/4" thick polished steel surface holds heat well and cooks product evenly from edge to edge.
- Grease goes where it should. A spatula-wide 3-1/4" front grease trough and chute drain into a stainless steel grease drawer, and a 4-3/8" rear and side splash guard keeps the backsplash cleaner.
- Tough front end. Stainless steel front panel and bull nose protect the controls and stand up to daily use.
Choosing your setup
Voltage: the griddle operates on 208V or 240V service; choose single phase or three phase above to match your building. Output and amp draw depend on your voltage and phase:
| Electrical service | Total kW | Amps |
|---|---|---|
| 208V, single phase | 9 kW | 43.3 A |
| 240V, single phase | 12 kW | 50 A |
| 208V, three phase | 9 kW | 25 / 25 / 25 A (L1 / L2 / L3) |
| 240V, three phase | 12 kW | 28.9 / 28.9 / 28.9 A (L1 / L2 / L3) |
Need more or less room? The same griddle comes in 24" (TMGE24) and 48" (TMGE48) widths.
Specifications
| Brand | Toastmaster |
| Model | TMGE36 |
| Type | Countertop electric griddle, snap-action thermostat controls |
| Total power | 9 kW at 208V / 12 kW at 240V (3,000 – 4,000 W per 12" section) |
| Controls | 3 snap-action thermostats, one per 12" section, 150°F – 450°F, positive "OFF" |
| Griddle plate | 3/4" thick polished steel |
| Grease management | 3-1/4" front trough and chute, stainless steel grease drawer |
| Splash guard | 4-3/8" rear and side |
| Construction | Stainless steel body, front panel and bull nose |
| Legs | 4", 1-3/8" adjustment (must be installed with supplied legs) |
| Electrical | 208/240V, single or three phase (see table above) |
| Electrical connection | Hard-wired (field wired per local code), dedicated circuit required |
| Dimensions (W x D x H) | 36" x 28.3" x 15.3" |
| Weight (installed) | 221 lb |
| Shipping weight | 262 lb |
| Certifications | cULus, UL EPH Classified, Made in USA |
Before it arrives
- Power: this griddle is hard-wired, so have a licensed electrician run a dedicated circuit sized for the amp draw of your voltage and phase.
- Clearance: keep 1" of clearance at the rear and both sides, and install it on the supplied 4" legs.
- Ventilation: install under a commercial hood following your local code.
- Delivery: it ships at about 262 lb in a carton roughly 39" x 28" x 20", so plan on extra hands to set it on the counter.
Warranty
1 year parts and labor from Toastmaster.
Specifications per Toastmaster data; subject to change by the manufacturer.
