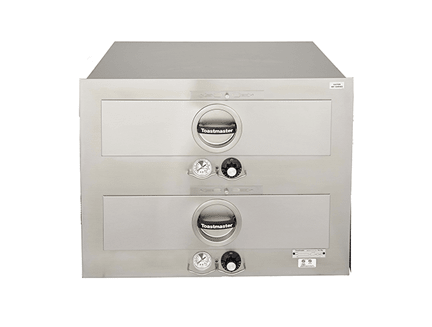

Toastmaster 3B84AT Built-In Two Drawer Warmer, Dual Thermostats, (2) 12" x 20" x 5" Pans, 100°F - 200°F
If your menu asks you to hold two very different foods at once, the Toastmaster 3B84AT is the two-drawer built-in warmer to choose. Unlike single-thermostat models, it gives each drawer its own thermostat, so you can keep proteins hotter in one drawer and bread or delicate sides gentler in the other. Caterers, buffets, hotel banquet lines and full-service restaurants get two independent holding cabinets in one built-in unit.
Each drawer accepts a 12" x 20" pan 5" deep and is furnished with a removable deep-drawn stainless steel pan. Both hydraulic thermostats adjust from 100°F to 200°F with an OFF position, and every drawer has its own moist/crisp control. Power is 900 W on 120V, or 850 W / 980 W on 208/240V.
What you will notice in day-to-day use
- Two temperatures, no compromise. Dual thermostats mean the drawer holding ribs does not have to run at the same setting as the drawer holding rolls.
- Humidity where you want it. Per-drawer moist/crisp knobs keep soft items soft and crisp items crisp.
- Easy to check. A thermometer reads the coolest spot inside, and the "safety zone" green on each dial guides staff to a safe setting.
- Built for constant use. Third-member rails with 20 bearings per drawer and spring-loaded latches keep drawers smooth and sealed.
- Neat and efficient. Six-side insulation holds heat in, and integrated trim gives a clean, built-in finish; wood fixtures are acceptable.
Choosing your setup
Voltage: choose 120V (model 3B84AT09) or 208/240V (model 3B84AT72) above to match your service. Both are field wired.
| Electrical service | Power | Amps |
|---|---|---|
| 120V (3B84AT09) | 900 W | 7.83 A |
| 208V / 240V (3B84AT72) | 850 W / 980 W | 4.09 A / 4.08 A |
Specifications
| Brand | Toastmaster |
| Model | 3B84AT09 (120V) / 3B84AT72 (208/240V) |
| Type | Built-in electric drawer warmer, 2 drawers, dual thermostats |
| Pan capacity | 2 x 12" x 20" x 5" deep pans (removable stainless pans furnished) |
| Controls | 2 hydraulic thermostats, 100°F – 200°F with OFF position, signal light, knob guard; moist/crisp control per drawer |
| Thermostats | 2 |
| Heating | Tubular heating elements |
| Drawers | Positive-action spring-loaded latch, third-member suspension rails with 20 bearings per drawer |
| Construction | Stainless steel exterior and drawer fronts, aluminized steel inner lining, welded and reinforced sheet steel frame; insulated on all six sides |
| Electrical | 120V: 900 W, 7.83 A; 208/240V: 850/980 W, 4.09/4.08 A; single phase, field wired |
| Dimensions (W x D x H) | 29-3/16" x 19-1/2" x 21-3/4" |
| Approx. shipping weight | 144 lb |
| Certifications | cETLus, ETL Sanitation, Made in USA |
Before it arrives
- Power: field wired; an electrician should connect it to a dedicated circuit at the voltage you ordered.
- Cut-out: plan the cabinet opening for a 29-3/16" W x 19-1/2" D x 21-3/4" H unit.
- Handling: about 144 lb shipped, so have two people available to lift it into place.
Warranty
1 year parts and labor from Toastmaster.
Specifications per Toastmaster data; subject to change by the manufacturer.
