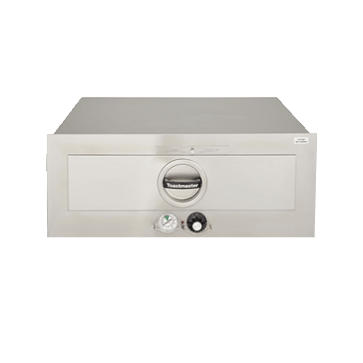

Toastmaster 3A80AT Built-In Single Drawer Warmer, 12" x 20" x 5" Pan, 100°F - 200°F, Moist/Crisp Control
Baked potatoes, ribs, rolls and vegetables all hold better when you control both heat and moisture. The Toastmaster 3A80AT is a single-drawer, built-in warmer that tucks into a cabinet or counter run under the pass or on a buffet line, keeping cooked food at a safe, thermometer-verified serving temperature without drying it out. It suits restaurants, banquet kitchens and caterers that want warm holding out of sight and off the counter.
The drawer takes a 12" x 20" steam pan 5" deep, and a removable deep-drawn stainless steel pan is furnished. A hydraulic thermostat sets anywhere from 100°F to 200°F, and a separate moist/crisp knob lets you dial in humidity for soft rolls or crisp fries. Power is 400 W on 120V, or 400 W / 540 W on 208/240V.
What you will notice in day-to-day use
- Moist or crisp, your call. The moisture control knob above the drawer adjusts the drawer climate to the food you are holding.
- A thermometer you can trust. It reads the coolest point inside the warmer, and the "safety zone" green marking on the thermostat helps staff keep product above the danger zone.
- Smooth, solid drawer action. A rugged third-member rail with 20 bearings and a positive-action spring-loaded latch keep the drawer gliding and closing tight.
- Holds heat efficiently. Insulation on all six sides, including the drawer front, keeps heat in the drawer rather than in the cabinet around it.
- Clean, built-in look. Integrated trim finishes the opening, and the unit may be installed in wood fixtures.
Choosing your setup
Voltage: pick the service you have at the install location above. The 120V version is model 3A80AT09; the 208/240V version is model 3A80AT72. Both are field wired.
| Electrical service | Power | Amps |
|---|---|---|
| 120V (3A80AT09) | 400 W | 1.97 A |
| 208V / 240V (3A80AT72) | 400 W / 540 W | 1.97 A / 1.96 A |
Need more capacity? The same warmer comes as a two-drawer (3B80AT) or three-drawer (3C80AT) unit.
Specifications
| Brand | Toastmaster |
| Model | 3A80AT09 (120V) / 3A80AT72 (208/240V) |
| Type | Built-in electric drawer warmer, 1 drawer |
| Pan capacity | 1 x 12" x 20" x 5" deep pan (removable stainless pan furnished) |
| Controls | Hydraulic thermostat, 100°F – 200°F with OFF position, signal light, knob guard, "safety zone" green marking, moist/crisp control |
| Thermostats | 1 |
| Heating | Tubular heating elements |
| Drawer | Positive-action spring-loaded latch, third-member suspension rails with 20 bearings per drawer |
| Construction | Stainless steel exterior and drawer fronts, aluminized steel inner lining, welded and reinforced sheet steel frame; insulated on all six sides |
| Electrical | 120V: 400 W, 1.97 A; 208/240V: 400/540 W, 1.97/1.96 A; single phase, field wired |
| Dimensions (W x D x H) | 29-3/16" x 19-1/2" x 10-7/8" |
| Approx. shipping weight | 84 lb |
| Certifications | cETLus, ETL Sanitation, Made in USA |
Before it arrives
- Power: built-in warmers are field wired; have an electrician connect it to a dedicated circuit at the voltage you ordered.
- Cut-out: plan the cabinet opening around the 29-3/16" x 19-1/2" x 10-7/8" body; it may be installed in wood fixtures.
- Manual: follow the owner’s manual for installation details.
Warranty
1 year parts and labor from Toastmaster.
Specifications per Toastmaster data; subject to change by the manufacturer.
